Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Product Model | 20F11ND2P1JA0NNNNN |

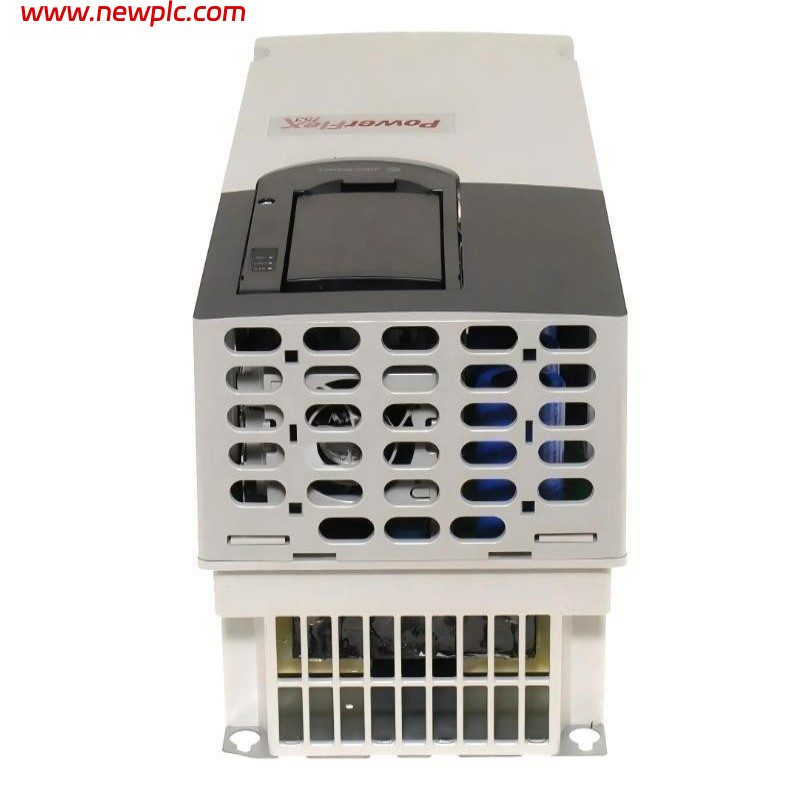

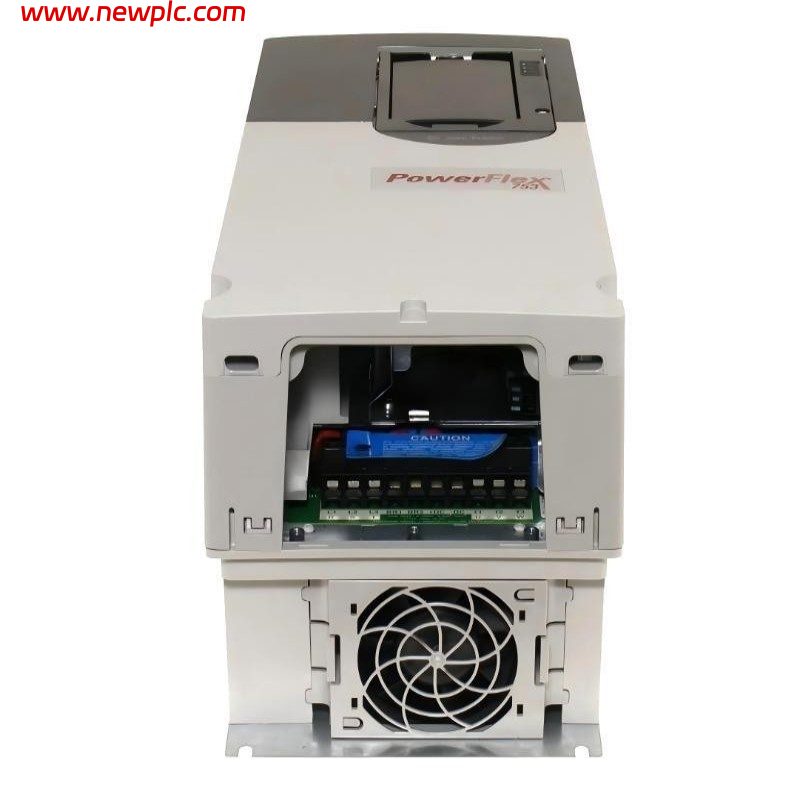

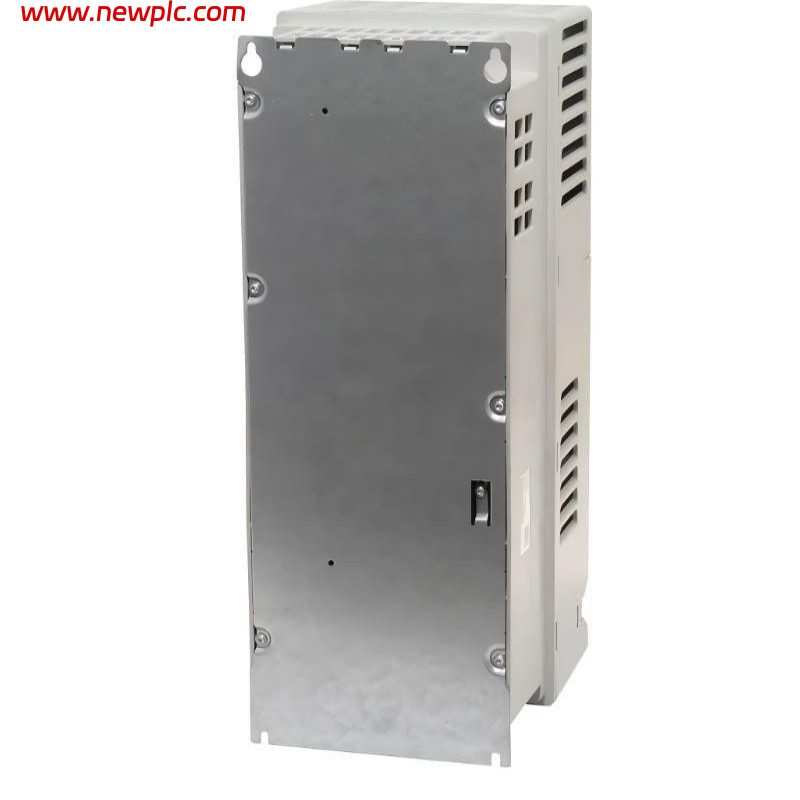

| Product Type | PowerFlex 753 AC Drive |
| Product Series | PowerFlex 753 |
| Drive Family | PowerFlex 750-Series |
| Main Function | Variable frequency drive for industrial motor speed and torque control |
| Input Voltage | 480 VAC, 3-phase |
| Input Frequency | 50/60 Hz |
| Normal-Duty Output Current | 2.1 A |
| Heavy-Duty Output Current | 2.1 A |
| Normal-Duty Power Rating | 1 HP / 0.75 kW |
| Heavy-Duty Power Rating | 1 HP / 0.75 kW |
| Frame Size | Frame 2 |
| Input Configuration | AC Input with DC Terminals |
| Enclosure | IP20/IP00, NEMA/UL Open Type |
| Cooling Method | Forced Air |
| Embedded I/O | Included |
| EMC Filtering | Filtered |
| Common-Mode Jumper | Installed |
| Dynamic Braking | Internal Dynamic Braking Transistor |
| Human Interface Module (HIM) | Blank / No HIM |
| Mounting | Panel / Cabinet Mounting |
| Dimensions (H × W × D) | Approx. 404.2 × 134.5 × 212 mm |
| Weight | Approx. 7.8 kg |
| Battery | No |
| Magnet | No |
| Product Lifecycle Status | Active |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11ND2P1JA0NNNNN?
A: It is a PowerFlex 753 AC drive designed for industrial motor speed control and automation applications.
Q2: What is the input voltage of this drive?
A: It operates on a 480 VAC, three-phase power supply.
Q3: What are its normal-duty and heavy-duty power ratings?
A: The drive is rated at 1 HP (0.75 kW) for both normal-duty and heavy-duty operation.
Q4: What is the rated output current?
A: The rated output current is 2.1 A. Confirm the motor’s full-load current and application requirements before selecting the drive.
Q5: What are the dimensions and weight of this model?
A: The approximate dimensions are 404.2 × 134.5 × 212 mm (H × W × D), and the weight is approximately 7.8 kg.
Q6: Does the 20F11ND2P1JA0NNNNN include embedded I/O?
A: Yes. It includes embedded I/O for control signal connections and integration with industrial automation systems.
Q7: Does this drive include dynamic braking and a HIM?
A: It includes an internal dynamic braking transistor but is supplied without a Human Interface Module (HIM). An external braking resistor may be needed depending on the application.
Q8: Is the 20F11ND2P1JA0NNNNN still an active product?
A: Yes. Rockwell Automation lists this model as active. It is the preferred direct replacement for the discontinued 20F11ND2P1AA0NNNNN.
