Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Model | 20F11RC2P1JA0NNNNN |

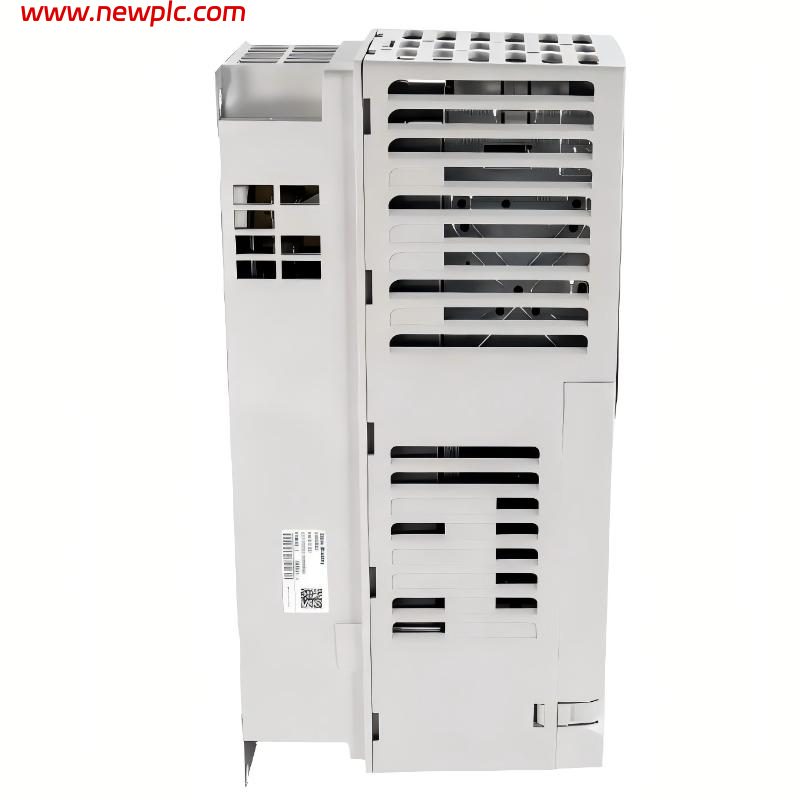

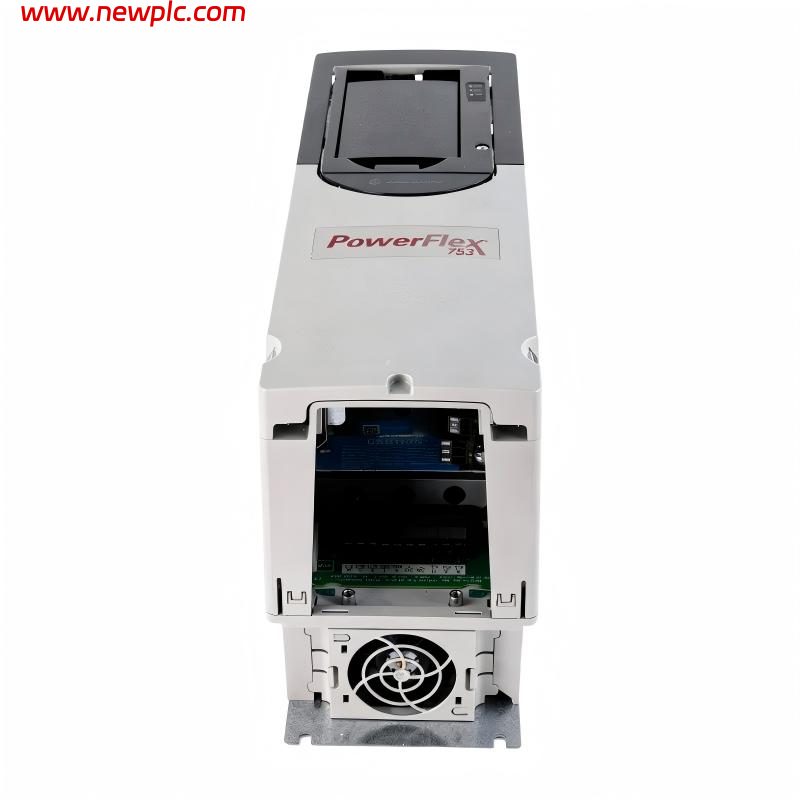

| Product Type | PowerFlex 753 AC Drive |
| Product Family | PowerFlex 750-Series |
| Drive Design | Air-cooled AC drive with embedded I/O |
| Input Voltage | 400 VAC, 3-phase |
| Input Voltage Range | 380–480 VAC |
| Input Frequency | 50/60 Hz |
| Input Configuration | AC input with precharge and DC terminals |
| Nominal DC Bus Voltage | 540 VDC |
| Normal-Duty Output Current | 2.1 A |
| Heavy-Duty Output Current | 1.3 A |
| Normal-Duty Power | 0.75 kW (1 HP) |
| Heavy-Duty Power | 0.37 kW (0.5 HP) |
| Output Phases | 3-phase |
| Frame Size | Frame 1 |
| Enclosure Rating | IP20, NEMA/UL Open Type |
| Cooling Method | Forced-air cooling |
| Embedded I/O | Included |
| EMC Filtering | Filtered |
| CM Jumper | Installed (preferred configuration) |
| Dynamic Braking | Internal dynamic braking transistor included |
| HIM / Keypad | Not included; blank configuration |
| Approx. Dimensions (H × W × D) | 400.5 × 110 × 211 mm (15.77 × 4.33 × 8.31 in) |
| Approx. Weight | 6 kg (13.2 lb); confirm with supplier |
| Lifecycle Status | Active |
| Country of Origin | United States of America, according to Rockwell Automation listing |
| Estimated Lead Time | 21 days, subject to current confirmation |
| Standard Warranty | 1 year, subject to terms |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11RC2P1JA0NNNNN?
A: It is a PowerFlex 753 variable-frequency AC drive used for industrial motor speed and torque control.
Q2: What input voltage does this drive support?
A: It is designed for 400 VAC three-phase systems, within the 380–480 VAC voltage class.
Q3: What is its rated output current?
A: The normal-duty output current is 2.1 A, and the heavy-duty continuous output current is 1.3 A.
Q4: What are its power ratings?
A: The drive is rated at 0.75 kW for normal-duty applications and 0.37 kW for heavy-duty applications.
Q5: What are the dimensions of the 20F11RC2P1JA0NNNNN?
A: Approximate dimensions are 400.5 × 110 × 211 mm (H × W × D). Check the manufacturer’s mechanical drawing for installation clearances.
Q6: How much does this drive weigh?
A: The estimated unit weight is approximately 6 kg (13.2 lb). Actual shipping weight depends on the packaging.
Q7: Does this model include a braking transistor and EMC filtering?
A: Yes. The listed configuration includes an internal dynamic braking transistor and EMC filtering. The CM jumper is installed.
Q8: Is the 20F11RC2P1JA0NNNNN still available?
A: Rockwell Automation lists this model as active. Its published estimated lead time is 21 days, but stock and delivery schedules should be reconfirmed with the supplier before ordering.
