Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |

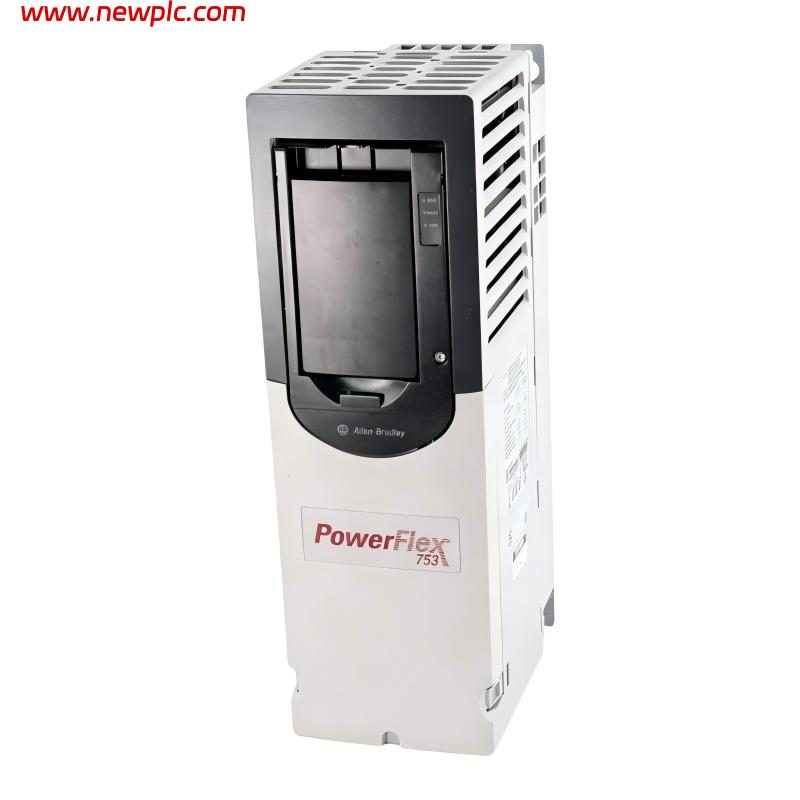

| Model | 20F11RD014AA0NNNNN |
| Product Type | PowerFlex 753 AC Drive |
| Product Family | PowerFlex 750-Series |
| Drive Design | Air-cooled AC drive with embedded I/O |
| Input Voltage | 480 VAC, 3-phase |
| Input Voltage Range | 380–480 VAC |
| Input Frequency | 50/60 Hz |
| Nominal DC Bus Voltage | Approximately 650 VDC |
| Input Configuration | AC input with precharge |
| Normal-Duty Output Current | 14 A |
| Heavy-Duty Output Current | Confirm against the manufacturer’s selection guide |
| Normal-Duty Power | 7.5 kW (10 HP) |
| Heavy-Duty Power | 5.5 kW (7.5 HP), verify for the specific application |
| Output Phases | 3-phase |
| Frame Size | Frame 1 |
| Enclosure Rating | IP20, NEMA/UL Open Type |
| Cooling Method | Forced-air cooling |
| Embedded I/O | Included |
| EMC Filtering | Included |
| CM Jumper | Removed |
| Dynamic Braking | Internal dynamic braking transistor |
| HIM / Keypad | Not included |
| Approx. Dimensions (H × W × D) | Approximately 400.5 × 110 × 211 mm (15.77 × 4.33 × 8.31 in); verify using the official drawing |
| Approx. Unit Weight | 4.54 kg (10 lb), reseller-listed |
| Lifecycle Status | Discontinued |
| Discontinued Date | June 30, 2024 |
| Direct Replacement | 20F11RD014JA0NNNNN |
| Country of Origin | Multiple manufacturing locations; confirm on the product nameplate |
| Standard Warranty | 1 year, subject to applicable terms |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11RD014AA0NNNNN?
A: It is a PowerFlex 753 variable-frequency AC drive used to control industrial AC motor speed and torque.
Q2: What input voltage does this drive support?
A: It is designed for 480 VAC three-phase applications within the 380–480 VAC voltage class.
Q3: What is the rated output current?
A: The manufacturer’s and reseller’s product information identifies this model as a 14 A drive. Confirm duty-specific current ratings in the official selection guide.
Q4: What is the normal-duty power rating?
A: The listed normal-duty power rating is 7.5 kW (10 HP).
Q5: What are the dimensions of the 20F11RD014AA0NNNNN?
A: The approximate dimensions are 400.5 × 110 × 211 mm (H × W × D). Verify these against the official mechanical drawing before installation.
Q6: How much does this drive weigh?
A: A reseller lists the unit at approximately 4.54 kg (10 lb), excluding shipping packaging.
Q7: Does this drive include a dynamic braking transistor?
A: Yes. The product listing identifies an internal dynamic braking transistor. A separate braking resistor may be required depending on the application.
Q8: Is the 20F11RD014AA0NNNNN still available from Rockwell Automation?
A: No. Rockwell Automation lists the model as discontinued effective June 30, 2024. Its direct replacement is 20F11RD014JA0NNNNN, which has the CM jumper installed. Confirm configuration compatibility before replacing the drive.
