Technical Specifications

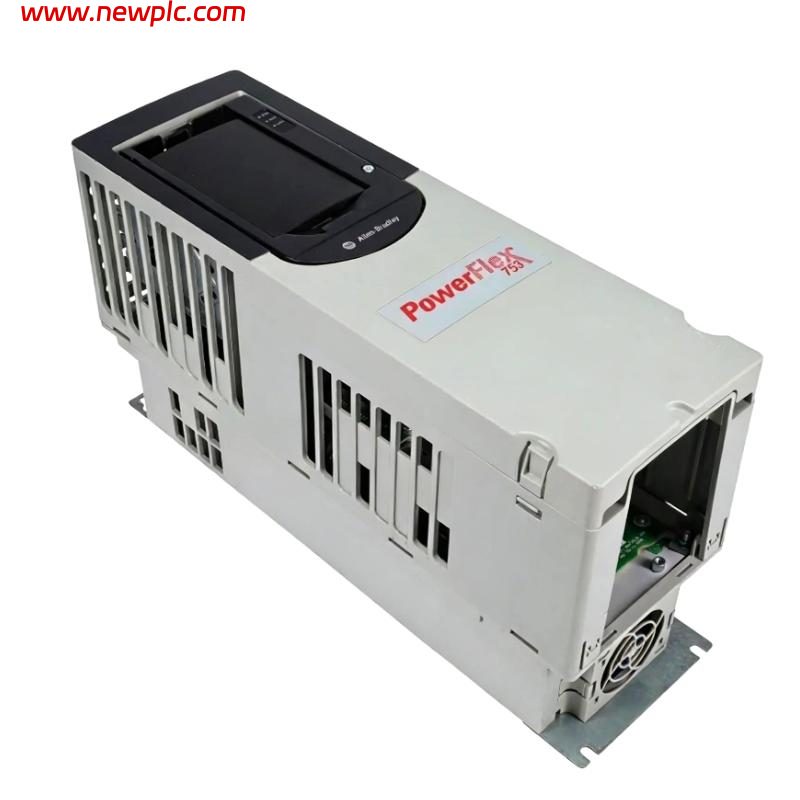

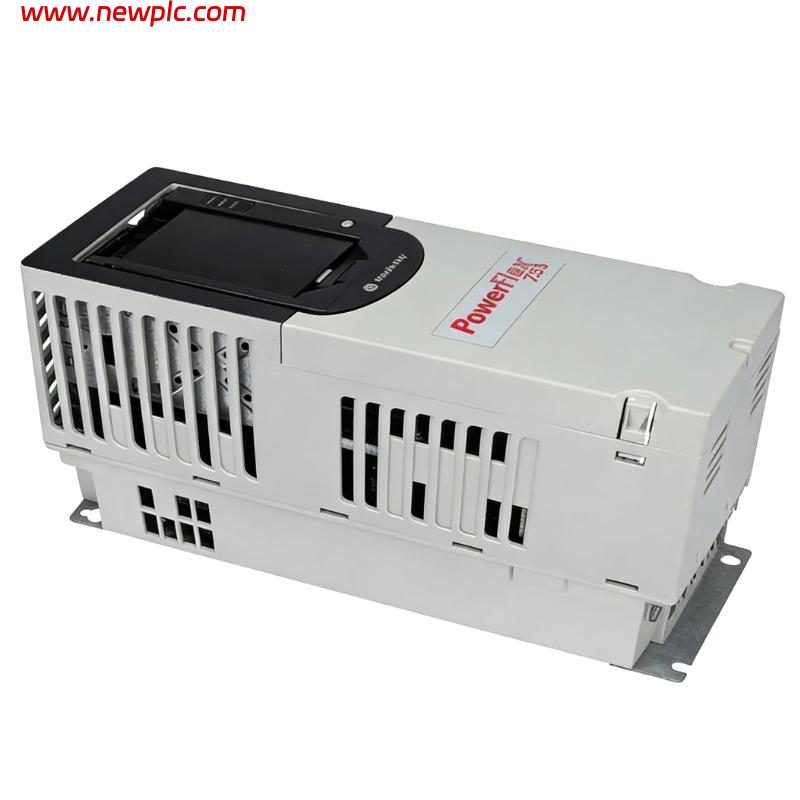

Allen-Bradley 20F11RD8P0AA0NNNNN — PowerFlex 753 AC Drive
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 20F11RD8P0AA0NNNNN |
| Product Type | Variable Frequency AC Drive (VFD) |
| Product Series | PowerFlex 753 |
| Input Voltage | 480 VAC, 3-phase |
| Input Voltage Range | 380–480 VAC |
| Continuous Output Current | Approximately 8.8 A |
| Normal-Duty Rating | 5 HP |
| Heavy-Duty Rating | 3 HP |
| Input Type | AC input with precharge, includes DC terminals |
| Frame Size | Frame 1 |
| Enclosure | IP20, NEMA/UL Open Type |
| Cooling | Air-cooled |
| EMC Filter | Included |
| CM Jumper | Removed |
| Dynamic Braking | Internal braking transistor included |
| Internal Braking Resistor | Not included |
| HIM Operator Interface | Not included |
| Dimensions (H × W × D) | Approximately 400.5 × 110 × 211 mm (15.77 × 4.33 × 8.31 in); verify against the installation drawing before designing the panel |
| Net Weight | Approximately 6 kg (13.2 lb); confirm with the supplier, as an exact model-specific weight was not verified |
| Product Status | Discontinued |
| Discontinued Date | June 30, 2024 |
| Direct Replacement | 20F11RD8P0JA0NNNNN |
| Country of Origin | Multiple |
| Standard Warranty | 1 year, subject to applicable terms |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11RD8P0AA0NNNNN?
A: It is a PowerFlex 753 variable-frequency AC drive used to control industrial motor speed and torque in automation systems.
Q2: What are its input voltage and output current ratings?
A: It is designed for 380–480 VAC three-phase input, with a 480 VAC class rating. The selection data lists approximately 8.8 A continuous output current.
Q3: What motor power can this drive support?
A: The listed ratings are 5 HP for normal-duty applications and 3 HP for heavy-duty applications. Confirm motor nameplate current and application requirements before selecting the drive.
Q4: What are the dimensions of this model?
A: The approximate dimensions are 400.5 mm high × 110 mm wide × 211 mm deep. Verify the precise mounting dimensions against the manufacturer’s drawing before installation.
Q5: How much does the 20F11RD8P0AA0NNNNN weigh?
A: The estimated net weight is approximately 6 kg (13.2 lb). This figure has not been independently confirmed for the exact model; request the manufacturer’s or supplier’s dimensional and weight data for shipping and installation planning.
Q6: Does this drive include a braking resistor?
A: The catalog configuration includes a dynamic braking transistor, but that does not mean an internal braking resistor is included. A compatible external resistor may be required depending on the application.
Q7: Is this model discontinued?
A: Yes. Rockwell Automation lists the 20F11RD8P0AA0NNNNN as discontinued effective June 30, 2024.
Q8: What is the recommended replacement model?
A: Rockwell Automation lists 20F11RD8P0JA0NNNNN as the direct replacement. Check the full catalog number and configuration differences—particularly the CM jumper configuration—before replacing the original drive.
