Technical Specifications

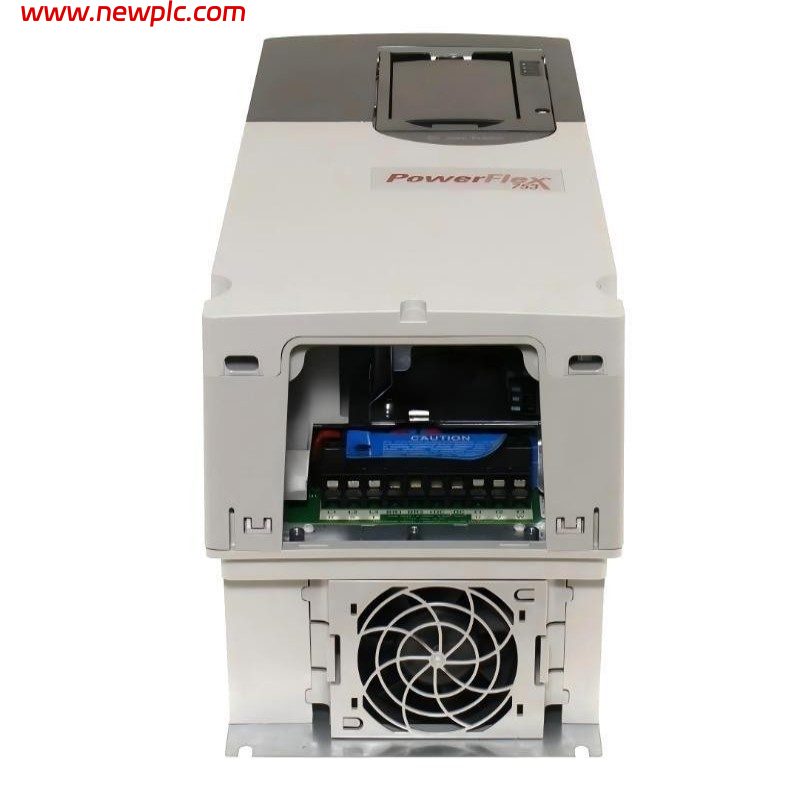

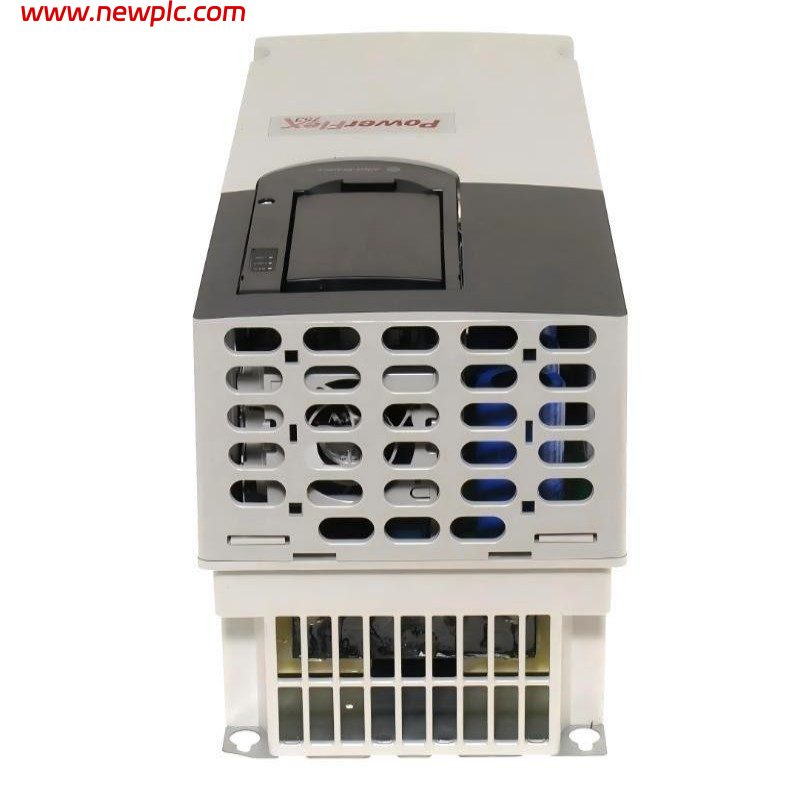

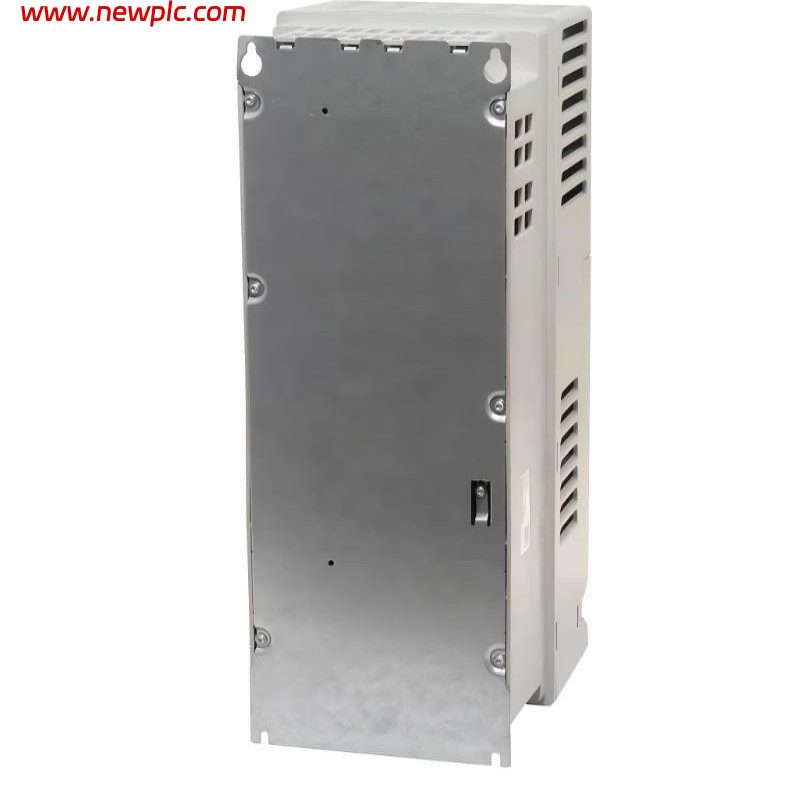

Allen-Bradley 20F14NF212JN0NNNNN — PowerFlex 753 AC Drive
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 20F14NF212JN0NNNNN |
| Product Type | PowerFlex 753 AC Drive / Variable Frequency Drive (VFD) |
| Product Family | PowerFlex 753 |
| Input Voltage Class | 690 VAC, 3-phase |
| Nominal DC Bus Voltage | 932 VDC |
| Input Configuration | DC input with precharge |
| Normal Duty (ND) Output Current | 212 A |
| Heavy Duty (HD) Output Current | 171 A |
| Normal Duty (ND) Power | 200 kW |
| Heavy Duty (HD) Power | 160 kW |
| Frame Size | Frame 7 |
| Enclosure | IP00, NEMA/UL Type Open |
| Cooling Method | Forced-air cooling |
| Embedded I/O | Included |
| EMC Filter | Included |
| Common-Mode (CM) Capacitor Jumper | Installed |
| Internal Dynamic Braking Transistor | Not included |
| Internal Braking Resistor | Not included |
| Human Interface Module (HIM) | Not included; blank configuration |
| Dimensions (H × W × D) | 881.5 × 430 × 349.6 mm (34.70 × 16.93 × 13.76 in) |
| Approximate Net Weight | 72.6–108.9 kg (160–240 lb) |
| Operating Temperature | 0–40°C, subject to installation and derating conditions |
| Typical Applications | Industrial pumps, fans, conveyors, and high-power motor control systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F14NF212JN0NNNNN?
A: It is a PowerFlex 753 variable frequency drive designed for high-power industrial motor control, with a 690 VAC voltage class and a 212 A normal-duty output rating.
Q2: What is the rated output power of this drive?
A: The drive is rated at 200 kW for normal-duty operation and 160 kW for heavy-duty operation.
Q3: What input configuration does this model use?
A: It uses a DC input with a precharge circuit and a nominal DC bus voltage of approximately 932 VDC.
Q4: Does this model include an internal dynamic-braking transistor?
A: No. The N in the relevant catalog-number position indicates that the internal dynamic-braking transistor is not included. An external braking solution may be required if the application needs dynamic braking.
Q5: Does this model include an EMC filter?
A: Yes. The J configuration indicates that filtering is included and the common-mode capacitor jumper is installed.
Q6: What are the dimensions of the 20F14NF212JN0NNNNN?
A: The approximate dimensions are 881.5 mm high × 430 mm wide × 349.6 mm deep (34.70 × 16.93 × 13.76 in). Allow additional space for ventilation, wiring, and maintenance access.
Q7: How much does this drive weigh?
A: The published approximate weight range for a Frame 7 open-type PowerFlex 753 drive is 72.6–108.9 kg (160–240 lb). Confirm the exact net and shipping weights with the supplier before arranging installation or transport.
Q8: Does this model include a built-in operator interface?
A: No. This configuration does not include a Human Interface Module (HIM). A compatible optional interface or external configuration tool can be used for commissioning, parameter setup, and diagnostics.
