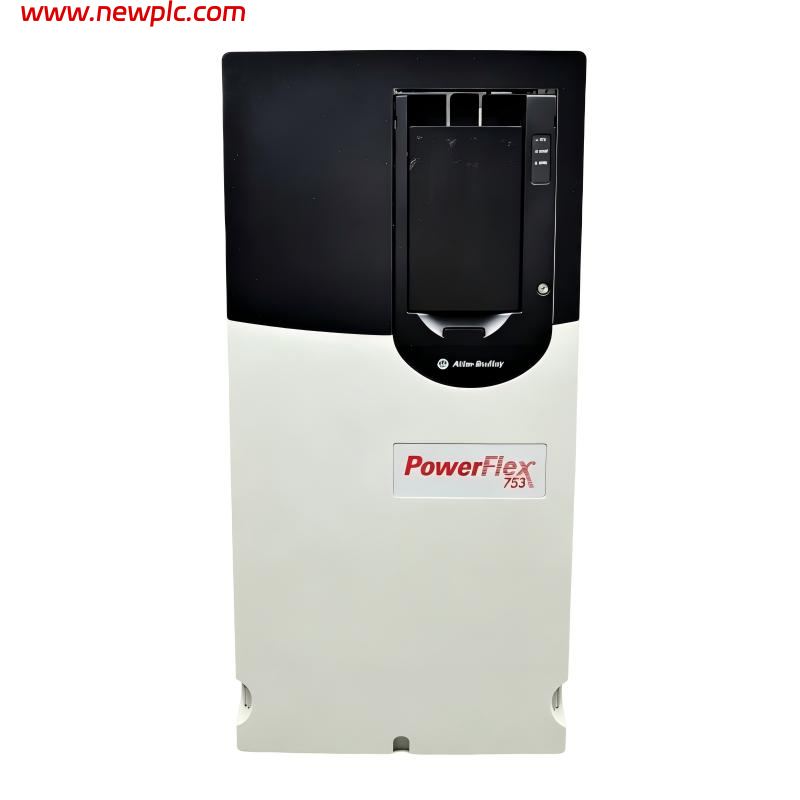

Allen-Bradley 20F1AGF171JA0NNNNN — PowerFlex 753 AC Drive
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 20F1AGF171JA0NNNNN |
| Product Type | AC Drive / Variable Frequency Drive (VFD) |
| Product Family | PowerFlex 753 |
| Input Voltage | 690 VAC, 3-phase |
| Nominal DC Bus Voltage | 932 VDC |
| Input Configuration | AC input with precharge and DC terminals |
| Normal Duty (ND) Output Current | 171 A |
| Heavy Duty (HD) Output Current | 132 A |
| Normal Duty (ND) Power | 160 kW |
| Heavy Duty (HD) Power | 132 kW |
| Frame Size | Frame 7 |
| Enclosure | IP54, NEMA Type 12 |
| Cooling Method | Forced-air cooling |
| Filtering | Integrated EMC filter |
| Common-Mode Capacitor Jumper | Installed |
| Dynamic Braking | Internal dynamic-braking transistor included |
| Human Interface Module (HIM) | Not included; blank configuration |
| Approx. Dimensions (H × W × D) | 881.5 × 430 × 349.6 mm (34.70 × 16.93 × 13.76 in) — Frame 7 reference dimensions; verify the IP54 enclosure drawing |
| Approx. Weight | 124.74 kg (275 lb) |
| Typical Applications | Industrial pumps, fans, conveyors, and high-power motor control |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F1AGF171JA0NNNNN?
A: It is a PowerFlex 753 AC drive designed for industrial motor speed and torque control, with a 690 VAC voltage class and a 171 A normal-duty output rating.
Q2: What is the rated output power of this drive?
A: It is rated at 160 kW for normal-duty operation and 132 kW for heavy-duty operation.
Q3: What input configuration does this model use?
A: It uses AC input with precharge and DC terminals. The nominal DC bus voltage is approximately 932 VDC.
Q4: Does this model include dynamic braking?
A: Yes. The A in the relevant catalog-number position indicates that an internal dynamic-braking transistor is included. A braking resistor may still need to be selected separately according to the application’s braking requirements.
Q5: What enclosure protection does this drive provide?
A: The model-specific supplier listing identifies an IP54 / NEMA Type 12 enclosure, suitable for applications requiring greater protection against dust and environmental exposure than an open-type drive.
Q6: What are the dimensions of the 20F1AGF171JA0NNNNN?
A: The Frame 7 reference dimensions are approximately 881.5 mm high × 430 mm wide × 349.6 mm deep. Because this model is listed with an IP54 enclosure, confirm the complete enclosure dimensions from the model-specific drawing before installation.
Q7: How much does this drive weigh?
A: The supplier listing reports approximately 124.74 kg (275 lb). Confirm the final net and shipping weights with the supplier before planning lifting, transport, or mounting.
Q8: Does this model include a built-in operator interface?
A: No. The catalog number specifies a blank configuration without a Human Interface Module (HIM). A compatible optional HIM or external configuration tool can be used for commissioning, parameter setup, and diagnostics.
