Technical Specifications
| Parameter | Description |
|---|---|

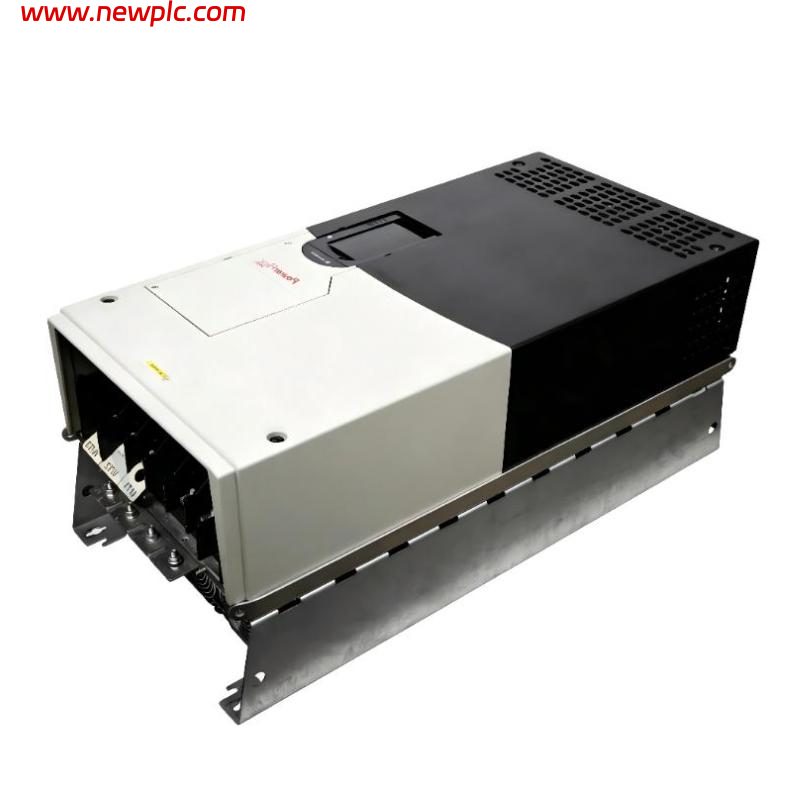

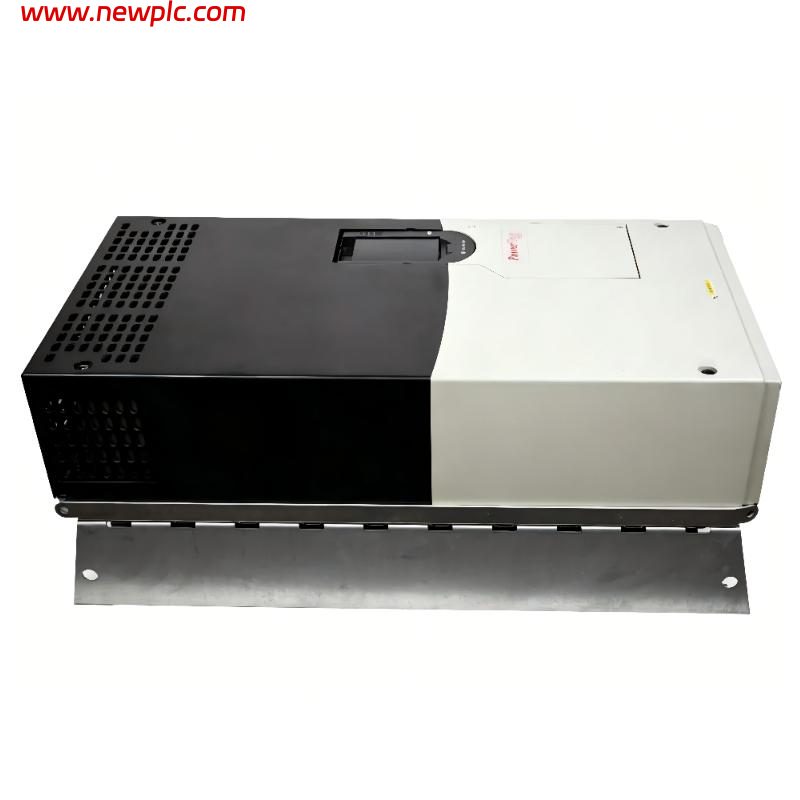

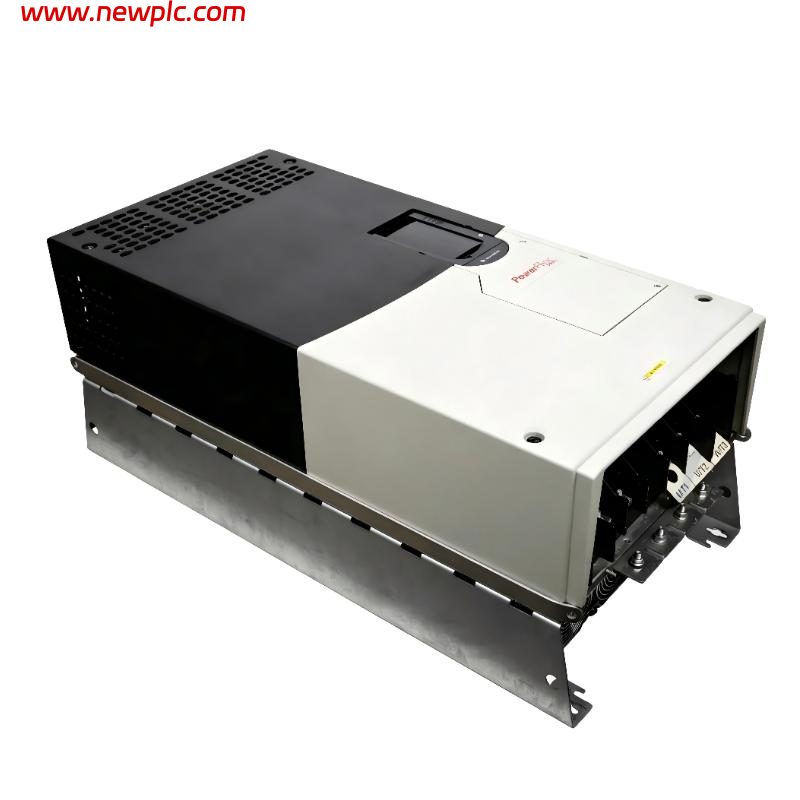

| Product Model | Allen-Bradley 20F1ANC170JA0NNNNN |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | PowerFlex® 753 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Function | Provides variable speed, torque, and process control for three-phase AC motors |
| Application | Pumps, fans, conveyors, compressors, mixers, extruders, material handling systems, and other industrial automation equipment |
| Drive Type | Air-Cooled AC Drive with Embedded I/O |
| Input Voltage | 380–480 VAC, Three-phase (400 V Class) |
| Nominal Input Voltage | 400 VAC |
| Output Current | 170 A |
| Motor Power Rating | 90 kW (Normal Duty), 75 kW (Heavy Duty) |
| Input Configuration | AC Input with Precharge, No DC Terminals |
| Input Frequency | 50/60 Hz |
| Control Modes | V/Hz Control, Sensorless Vector Control, Vector Control, PID Control |
| Frame Size | Frame 6 |
| Enclosure Rating | IP20 / IP00, NEMA/UL Open Type |
| Cooling Method | Forced Air |
| EMC Filter | Integrated EMC Filter (CM Jumper Installed) |
| Dynamic Braking | Built-in Dynamic Braking Transistor |
| Human Interface Module (HIM) | Blank (No HIM) |
| Embedded I/O | Standard Embedded I/O |
| Safety Functions | Supports optional Safe Torque Off (STO) |
| Mounting Type | Panel Mount |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 665.5 × 308 × 346.4 mm (H × W × D) |
| Weight | 48 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F1ANC170JA0NNNNN used for?
A: This drive is designed to provide accurate speed and torque control for three-phase AC motors used in conveyors, pumps, fans, compressors, mixers, and other industrial machinery. It helps improve process efficiency, reduce energy consumption, and enhance equipment performance.
Q2: What are the electrical ratings of the 20F1ANC170JA0NNNNN?
A: The drive operates on a 380–480 VAC, three-phase power supply with a nominal voltage of 400 VAC. It delivers 170 A output current and supports 90 kW motors in Normal Duty applications or 75 kW motors in Heavy Duty applications.
Q3: Does this drive include an EMC filter and dynamic braking transistor?
A: Yes. The 20F1ANC170JA0NNNNN comes with an integrated EMC filter (CM jumper installed) and a built-in dynamic braking transistor, simplifying installation and improving braking performance for high-inertia loads.
Q4: What enclosure type does the drive use?
A: The drive features an IP20/IP00, NEMA/UL Open Type enclosure. It is intended for installation inside a properly ventilated industrial control cabinet where environmental protection is provided by the enclosure.
Q5: Does the 20F1ANC170JA0NNNNN include a keypad?
A: No. This configuration is supplied with Blank (No HIM). A compatible PowerFlex Human Interface Module (HIM) can be installed separately for programming, diagnostics, and local monitoring.
Q6: What are the dimensions and weight of the 20F1ANC170JA0NNNNN?
A: The drive measures approximately 665.5 × 308 × 346.4 mm and weighs approximately 48 kg, allowing installation in standard industrial control cabinets with sufficient mounting space and ventilation.
Q7: What communication and expansion options are available?
A: The PowerFlex 753 platform supports optional communication modules for industrial networks such as EtherNet/IP, along with additional I/O, encoder feedback, and safety option cards. This modular architecture allows the drive to be adapted to a wide range of automation systems.
Q8: What should be checked before installing the 20F1ANC170JA0NNNNN?
A: Before installation, verify the incoming three-phase power supply, motor specifications, wiring and grounding, cabinet ventilation, braking requirements, and parameter configuration. After commissioning, confirm motor rotation, protection settings, and communication status to ensure reliable long-term operation.
