Technical Specifications
| Parameter | Description |
|---|---|

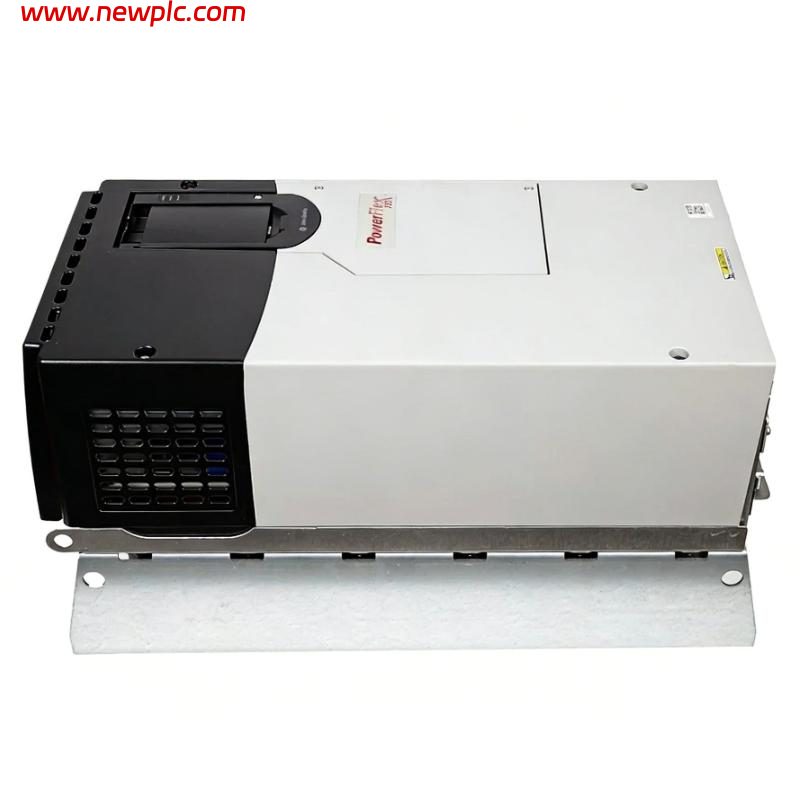

| Product Model | Allen-Bradley 20F1ANC205JN0NNNNN |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | PowerFlex® 753 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Function | Provides variable speed, torque, and process control for three-phase AC motors |
| Application | Pumps, fans, conveyors, compressors, mixers, extruders, material handling systems, and industrial automation equipment |
| Drive Type | Air-Cooled AC Drive with Embedded I/O |
| Input Voltage | 380–480 VAC, Three-phase (400 V Class) |
| Nominal Input Voltage | 400 VAC |
| Output Current | 205 A |
| Motor Power Rating | 110 kW (Normal Duty), 90 kW (Heavy Duty) |
| Input Configuration | AC Input with Precharge, No DC Terminals |
| Input Frequency | 50/60 Hz |
| Control Modes | V/Hz Control, Sensorless Vector Control, Closed Loop Vector Control, PID Control |
| Frame Size | Frame 6 |
| Enclosure Rating | IP20 / IP00, NEMA/UL Open Type |
| Cooling Method | Forced Air |
| EMC Filter | Integrated EMC Filter (CM Jumper Installed) |
| Dynamic Braking | No Internal Dynamic Braking Transistor |
| Human Interface Module (HIM) | Blank (No HIM) |
| Embedded I/O | Standard Embedded I/O |
| Safety Function | Supports Safe Torque Off (STO) with optional safety module |
| Mounting Type | Panel Mount |
| Operating Temperature | -20°C to +60°C |
| Lifecycle Status | Active |
| Country of Origin | Multiple |
| Dimensions | 665.5 × 308 × 346.4 mm (H × W × D) |
| Weight | 48 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F1ANC205JN0NNNNN used for?
A: The 20F1ANC205JN0NNNNN is used for controlling large three-phase AC motors in industrial applications such as pumps, conveyors, fans, compressors, mixers, and process equipment requiring accurate speed and torque control.
Q2: What are the voltage and current ratings of this drive?
A: This drive operates at 380–480 VAC three-phase and provides a rated output current of 205 A. It supports 110 kW motors in Normal Duty and 90 kW motors in Heavy Duty applications.
Q3: Does the 20F1ANC205JN0NNNNN have a built-in braking transistor?
A: No. The 20F1ANC205JN0NNNNN does not include an internal dynamic braking transistor. If the application requires fast stopping or high-inertia load control, an external braking solution should be selected.
Q4: What type of enclosure does this PowerFlex 753 drive use?
A: The drive uses an IP20/IP00 NEMA/UL Open Type enclosure and is designed for installation inside a suitable industrial control cabinet with proper ventilation.
Q5: Does the 20F1ANC205JN0NNNNN include a keypad or HIM module?
A: No. This configuration is supplied as Blank (No HIM). A compatible PowerFlex Human Interface Module can be added separately for local setup, monitoring, and diagnostics.
Q6: What are the dimensions and weight of the 20F1ANC205JN0NNNNN?
A: The drive dimensions are approximately 665.5 × 308 × 346.4 mm, and the weight is approximately 48 kg.
Q7: What communication and expansion options are available for this drive?
A: The PowerFlex 753 platform supports optional communication modules, additional I/O expansion, encoder feedback options, and safety-related accessories, allowing integration with different industrial automation systems.
Q8: What should be checked before installing the 20F1ANC205JN0NNNNN?
A: Before installation, confirm the incoming power supply, motor ratings, wiring, grounding, cabinet ventilation, environmental conditions, and parameter configuration. If braking performance is required, verify the external braking solution before commissioning the drive.
