Technical Specifications
| Parameter | Specification |
|---|---|

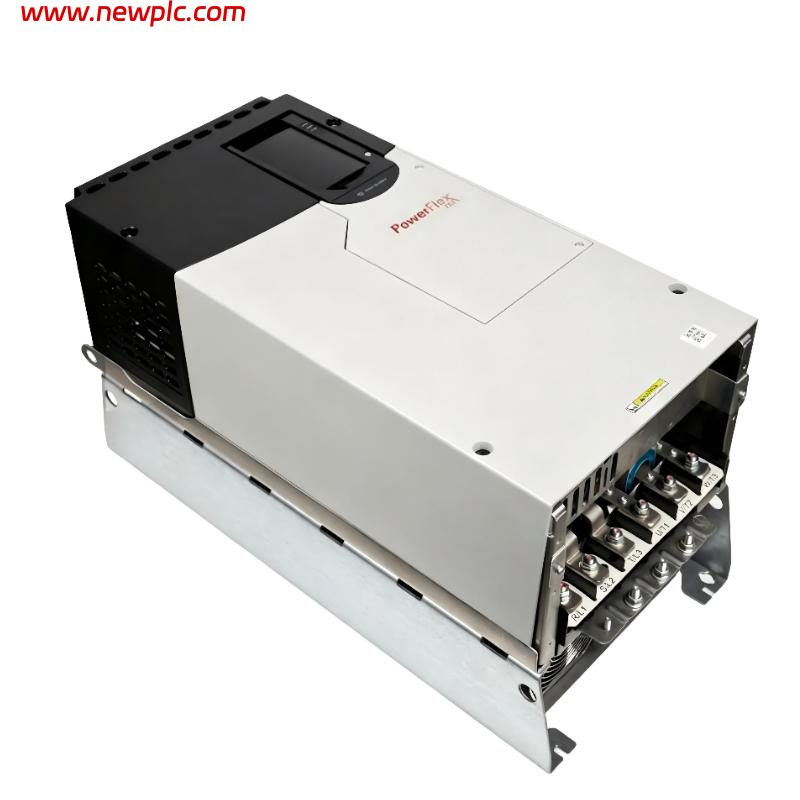

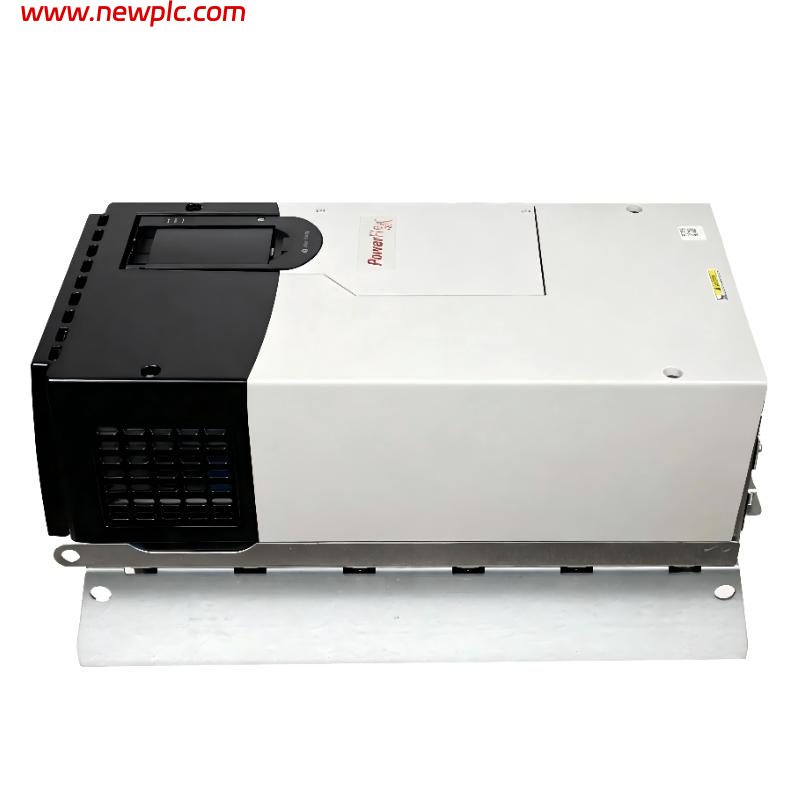

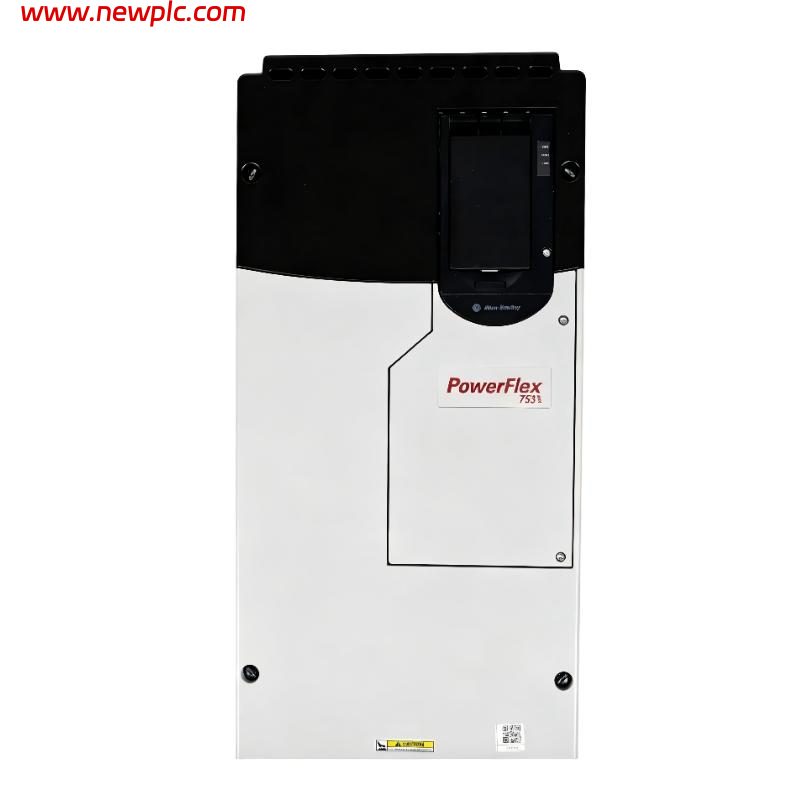

| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 753 |
| Model Number | 20F1ANC260JA0NNNNN |
| Product Type | AC Variable Frequency Drive (VFD) |
| Drive Type | Adjustable Frequency AC Drive |
| Input Voltage | 600V AC |
| Input Phase | 3-Phase |
| Output Voltage | 0…600V AC |
| Output Phase | 3-Phase |
| Rated Output Current | 260 A |
| Normal Duty Power Rating | 250 kW / 350 HP |
| Heavy Duty Power Rating | 200 kW / 300 HP |
| Input Frequency | 48…63 Hz |
| Output Frequency Range | 0…590 Hz |
| Enclosure Rating | IP20 / NEMA Type Open |
| HIM Interface | No HIM Included |
| Embedded EtherNet/IP | Yes |
| Safe Torque-Off (STO) | Optional |
| Brake Transistor | No |
| EMC Filter | No Internal Filter |
| Control Method | V/Hz, Sensorless Vector, Flux Vector Control |
| Mounting Type | Floor / Panel Mount |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, CSA |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | Approx. 1190 × 450 × 370 mm |
| Actual Weight | Approx. 95 kg |
| Typical Applications | Large Conveyors, Pumps, Fans, Compressors, Heavy Industrial Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F1ANC260JA0NNNNN used for?
A1: The 20F1ANC260JA0NNNNN is a PowerFlex 753 AC variable frequency drive designed for high-power industrial motor speed and torque control applications.
Q2: What is the power rating of the 20F1ANC260JA0NNNNN?
A2: The drive is rated for 250 kW (350 HP) normal duty and 200 kW (300 HP) heavy duty operation.
Q3: What input voltage does the 20F1ANC260JA0NNNNN require?
A3: The drive operates on 600V AC three-phase input power.
Q4: Does the 20F1ANC260JA0NNNNN include embedded EtherNet/IP communication?
A4: Yes. The drive includes embedded EtherNet/IP communication capability.
Q5: Which motor control methods are supported by the 20F1ANC260JA0NNNNN?
A5: The drive supports V/Hz control, sensorless vector control, and flux vector motor control.
Q6: Does the 20F1ANC260JA0NNNNN include an internal brake transistor?
A6: No. This model does not include an internal brake transistor.
Q7: What are the actual dimensions and weight of the 20F1ANC260JA0NNNNN?
A7: The approximate dimensions are 1190 × 450 × 370 mm (H × W × D) and the approximate weight is 95 kg.
Q8: What are common applications for the 20F1ANC260JA0NNNNN?
A8: Common applications include heavy-duty conveyors, large pumps, industrial fans, compressors, material handling systems, and high-power industrial motor control applications.
