Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Variable Frequency Drive |

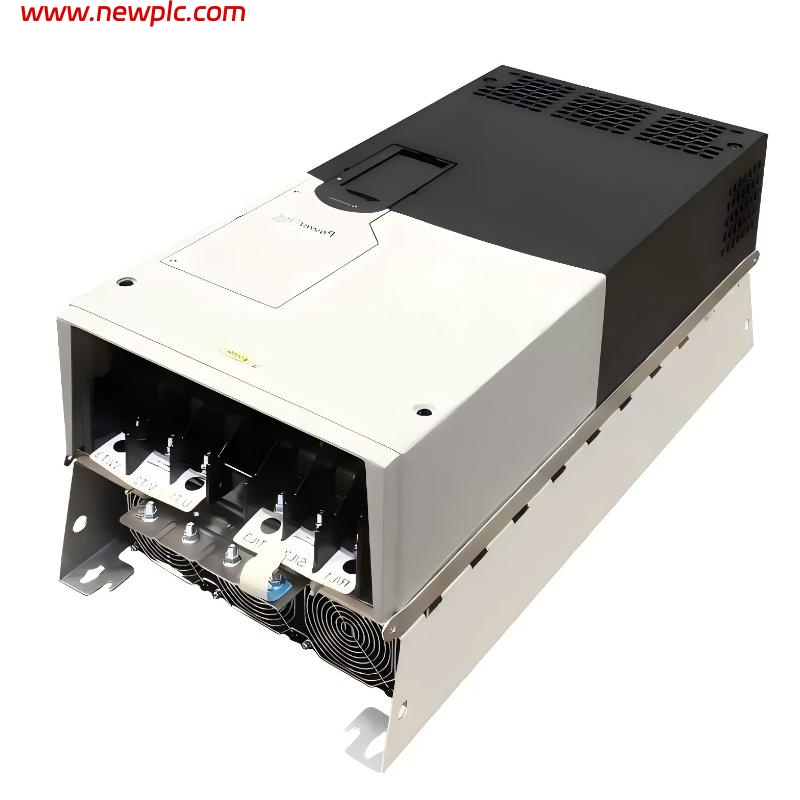

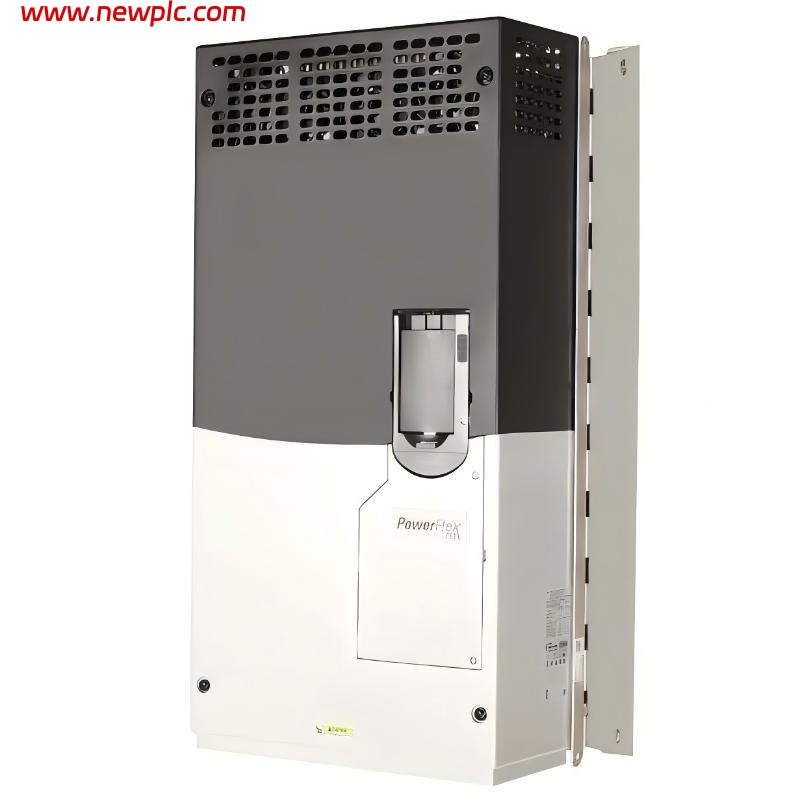

| Model | Allen-Bradley 20F1ANC367AN0NNNNN |
| Series | PowerFlex 753 |
| Function | Industrial high-power AC motor speed and torque control drive |
| Input Voltage | 380–480 V AC, 3-phase |
| Nominal Voltage | 400 V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–460 V AC, 3-phase |
| Output Current | 367 A |
| Output Power | 200 kW (Normal Duty) / 160 kW (Heavy Duty) |
| Frame Size | Frame 7 |
| Control Method | Sensorless Vector Control / V/Hz control |
| Communication | Modular (EtherNet/IP, DeviceNet, ControlNet via option modules) |
| EMC Filter | Integrated EMC filter |
| Brake Function | No built-in dynamic braking transistor |
| Control I/O | Embedded I/O, expandable via option modules |
| Protection Functions | Overcurrent, overvoltage, undervoltage, motor overload, ground fault |
| Enclosure Rating | IP00 / IP20 (open type, panel mounted) |
| Cooling Method | Air-cooled |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 665.5 × 308 × 346.4 mm |
| Weight | ~79–121 kg (varies by configuration) |
FAQ
FAQ
Q1. What is the 20F1ANC367AN0NNNNN used for?
It is a PowerFlex 753 high-power AC drive used for controlling large industrial motors in applications such as pumps, compressors, conveyors, and heavy machinery.
Q2. What is its power rating?
It provides 200 kW (normal duty) and 160 kW (heavy duty) output with a rated current of 367 A.
Q3. What type of input power does it require?
It operates on a 380–480 V AC three-phase supply, typically used in 400 V industrial systems.
Q4. Does it include braking capability?
No, this configuration does not include a built-in dynamic braking transistor, so external braking components are required.
Q5. What enclosure type does it use?
It is an open-type drive (IP00/IP20), designed for installation inside electrical cabinets.
Q6. What communication options are available?
It supports modular communication such as EtherNet/IP, DeviceNet, and ControlNet via optional modules.
Q7. What are its physical dimensions and weight?
Its dimensions are approximately 665.5 × 308 × 346.4 mm, with weight ranging roughly from 79 kg to over 100 kg depending on configuration.
Q8. Is this model still available?
No, it has been discontinued as part of the PowerFlex 753 lifecycle phase-out (end of sale in 2024).
