Technical Specifications

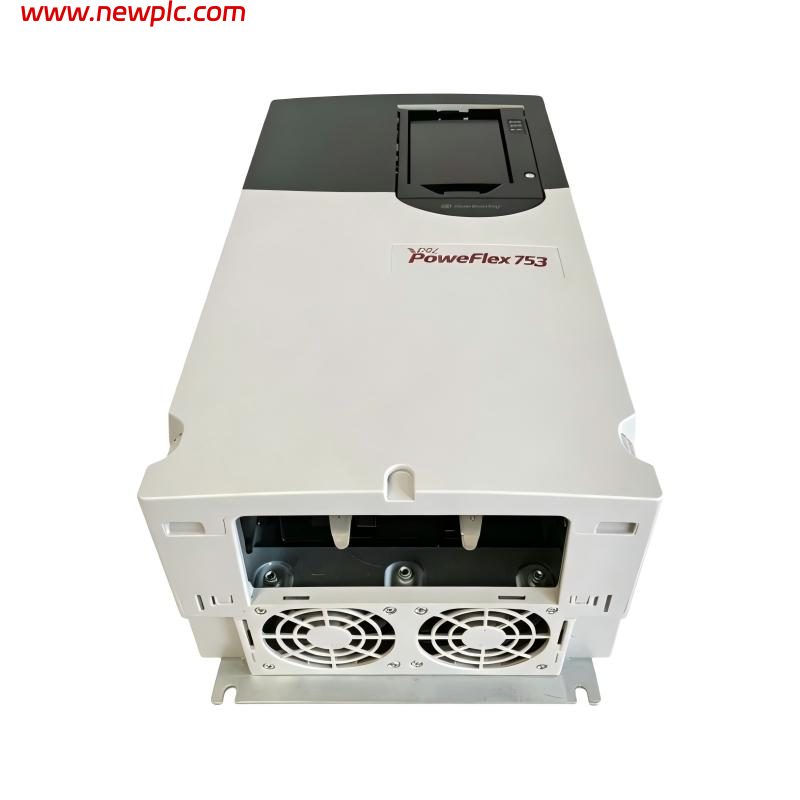

Allen-Bradley 20F1ANE063AA0NNNNN — PowerFlex 753 AC Drive
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 20F1ANE063AA0NNNNN |
| Product Type | Variable Frequency AC Drive |
| Product Family | PowerFlex 753 |
| Input Voltage | 600 VAC, 3-phase |
| DC Bus Voltage | Approximately 810 VDC |
| Input Configuration | AC input with precharge |
| DC Terminals | None |
| Rated Output Current | 63 A |
| Normal-Duty Power Rating | 60 HP (approximately 45 kW) |
| Heavy-Duty Power Rating | 50 HP (approximately 37 kW) |
| Frame Size | Frame 6 |
| Enclosure Type | IP00/IP20, NEMA/UL Open Type |
| EMC Filtering | Included |
| Common-Mode Capacitor Jumper | Removed |
| Dynamic Braking | Internal dynamic braking transistor included |
| Embedded I/O | Included |
| Cooling Method | Forced-air cooling |
| Human Interface Module (HIM) | Not included; blank configuration |
| Dimensions (H × W × D) | 665.5 × 308 × 346.4 mm (26.20 × 12.13 × 13.64 in) |
| Weight | 38.6 kg (85 lb) |
| Lifecycle Status | Discontinued |
| Discontinued Date | June 30, 2024 |
| Direct Replacement | 20F1ANE063JA0NNNNN |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F1ANE063AA0NNNNN?
A: It is a PowerFlex 753 variable-frequency AC drive designed for industrial three-phase motor speed and torque control.
Q2: What is its input voltage?
A: It is designed for a 600 VAC, three-phase supply, with an internal DC bus of approximately 810 VDC.
Q3: What are its rated current and power?
A: The drive is rated at 63 A, with 60 HP (approximately 45 kW) normal-duty power and 50 HP (approximately 37 kW) heavy-duty power.
Q4: Does this model include an internal dynamic braking transistor?
A: Yes. This configuration includes an internal dynamic braking transistor. An appropriately rated external braking resistor may be needed depending on the application.
Q5: Does it include EMC filtering?
A: Yes. EMC filtering is included, and the common-mode capacitor jumper is removed in this configuration.
Q6: What are its dimensions and weight?
A: The Frame 6 reference dimensions are 665.5 × 308 × 346.4 mm (H × W × D), and the listed weight is approximately 38.6 kg (85 lb).
Q7: Does the drive include a built-in keypad or HIM?
A: No. This configuration is supplied without a Human Interface Module. A compatible HIM can be purchased separately for local monitoring and programming.
Q8: Is the 20F1ANE063AA0NNNNN still available from Rockwell Automation?
A: No. Rockwell Automation lists this catalog number as discontinued, effective June 30, 2024, and identifies 20F1ANE063JA0NNNNN as the direct replacement. The replacement has the common-mode capacitor jumper installed, so verify configuration compatibility before substituting.
