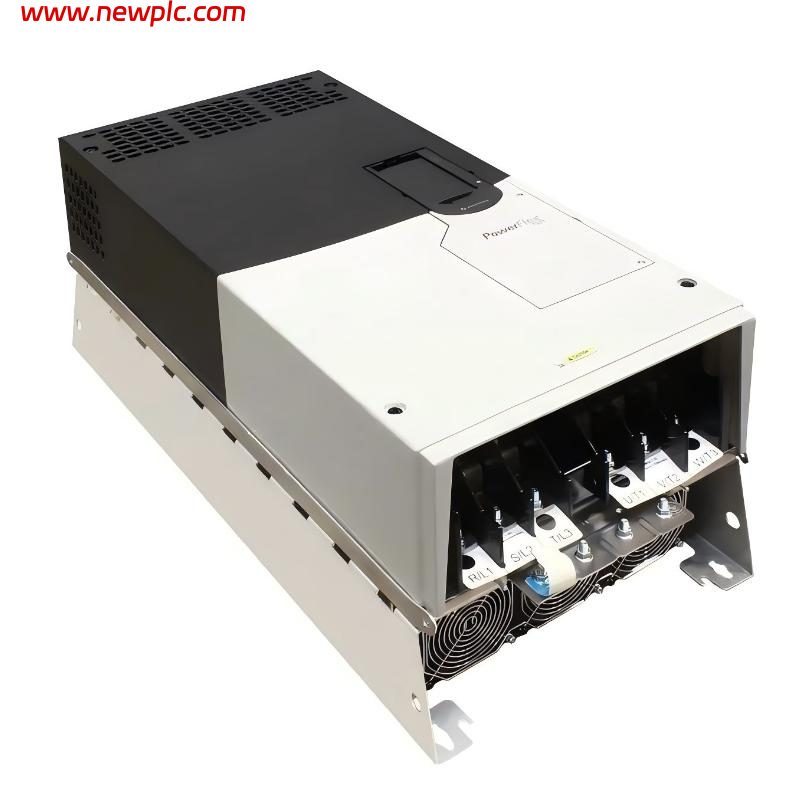

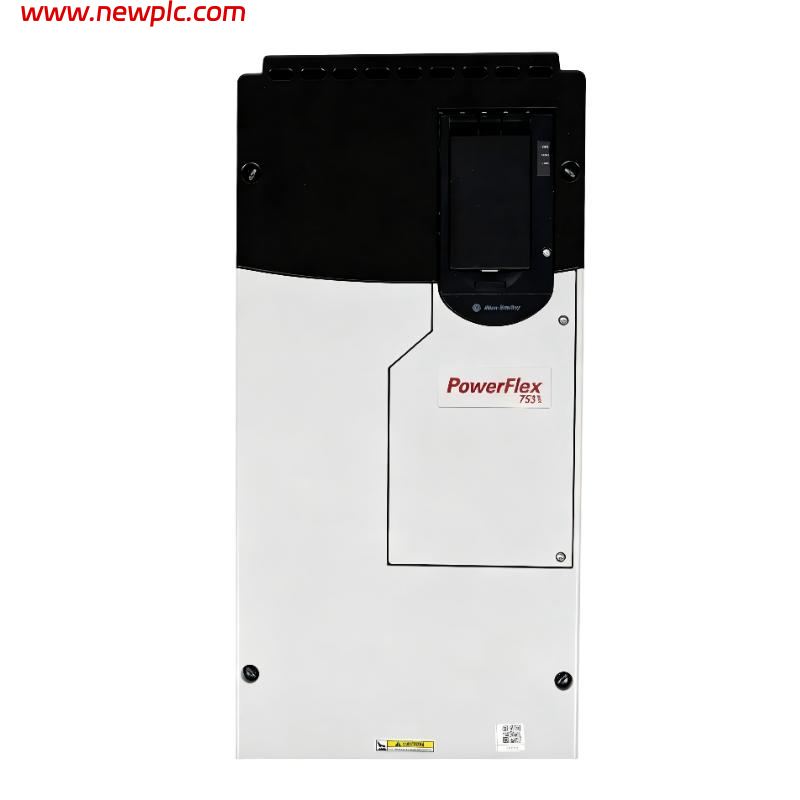

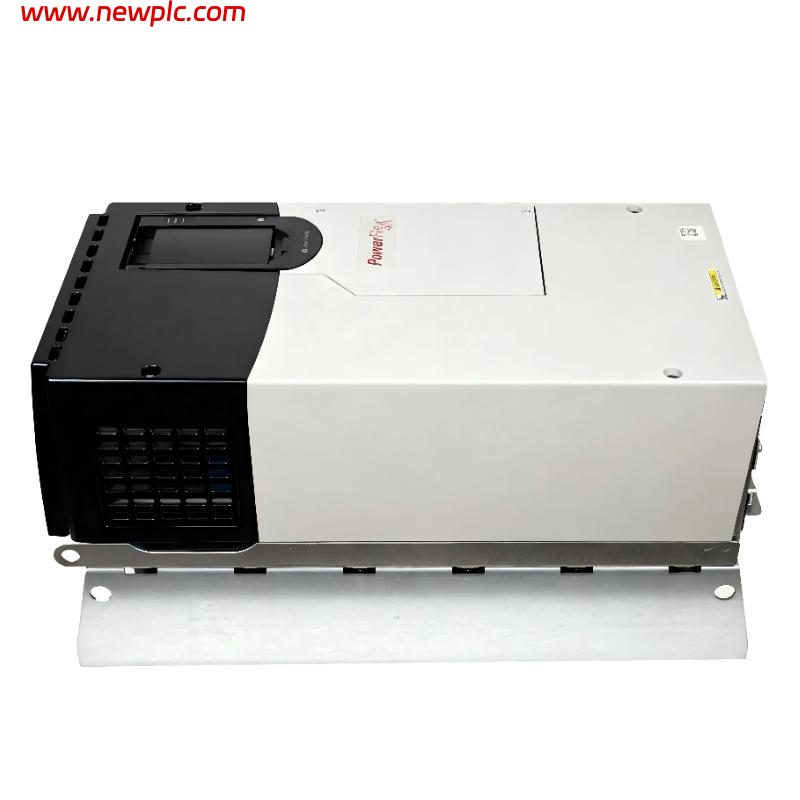

Allen Bradley 20G11BC910JN0NNNNN Air-Cooled AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the Allen-Bradley 20G11BC910JN0NNNNN used for?
A: The 20G11BC910JN0NNNNN is designed for controlling high-power AC motors in applications such as large conveyors, pumps, fans, compressors, mills, and process equipment requiring precise speed and torque control.

Q2: What are the voltage and current ratings of this drive?
A: The drive operates at 400 VAC three-phase and provides a rated output current of 910 A. It supports 500 kW Normal Duty, 400 kW Heavy Duty, and up to 560 kW Low Duty applications.

Q3: Does the 20G11BC910JN0NNNNN include a built-in braking transistor?
A: No. This model does not include an internal dynamic braking transistor. External braking equipment must be selected separately if the application requires rapid deceleration or regenerative energy handling.

Q4: What enclosure type does this PowerFlex 755 drive use?
A: The drive uses a Type 1, IP20, 600 mm deep MCC-style enclosure, designed for installation in industrial motor control centers or suitable electrical cabinets.

Q5: Does the 20G11BC910JN0NNNNN include a keypad or HIM module?
A: No. This configuration is supplied as Blank (No HIM). A compatible PowerFlex HIM can be added separately for local operation, setup, and diagnostics.

Q6: What are the dimensions and weight of the 20G11BC910JN0NNNNN?
A: The drive uses a large Frame 9 MCC-style construction. The approximate cabinet dimensions are 600 mm depth × 600 mm width × 2200 mm height, with an estimated weight of approximately 400 kg.

Q7: What communication features are available on this drive?
A: The PowerFlex 755 includes embedded EtherNet/IP communication, allowing integration with Rockwell Automation control systems and industrial Ethernet networks. Additional communication, feedback, and I/O modules can also be added.

Q8: What should be checked before installing the 20G11BC910JN0NNNNN?
A: Before installation, verify the incoming three-phase power supply, motor ratings, grounding, cabinet ventilation, MCC installation requirements, network configuration, and protection settings. Due to the high power rating, proper electrical design and installation procedures are required.
