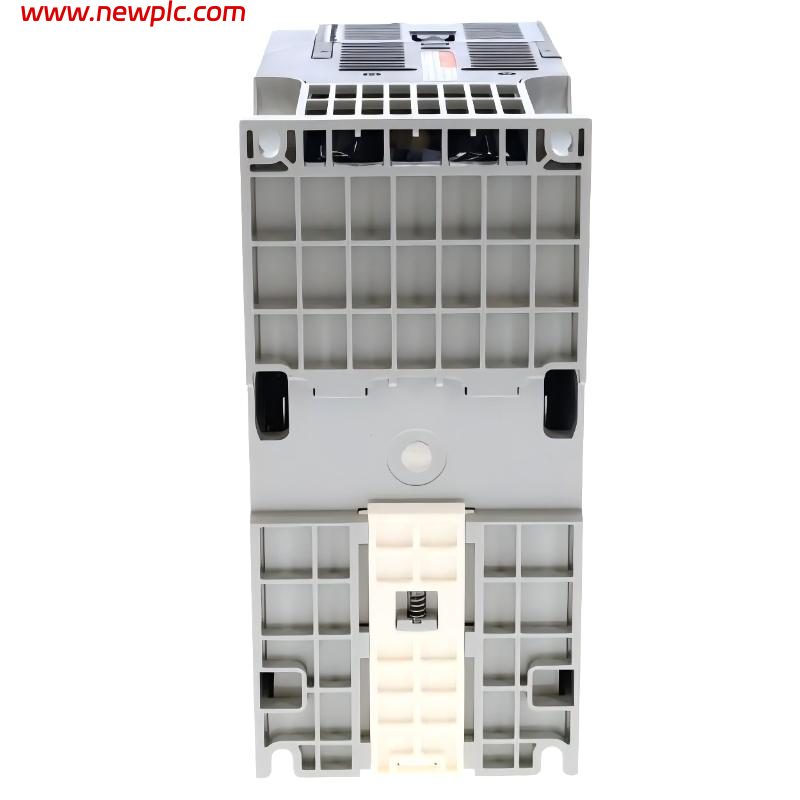

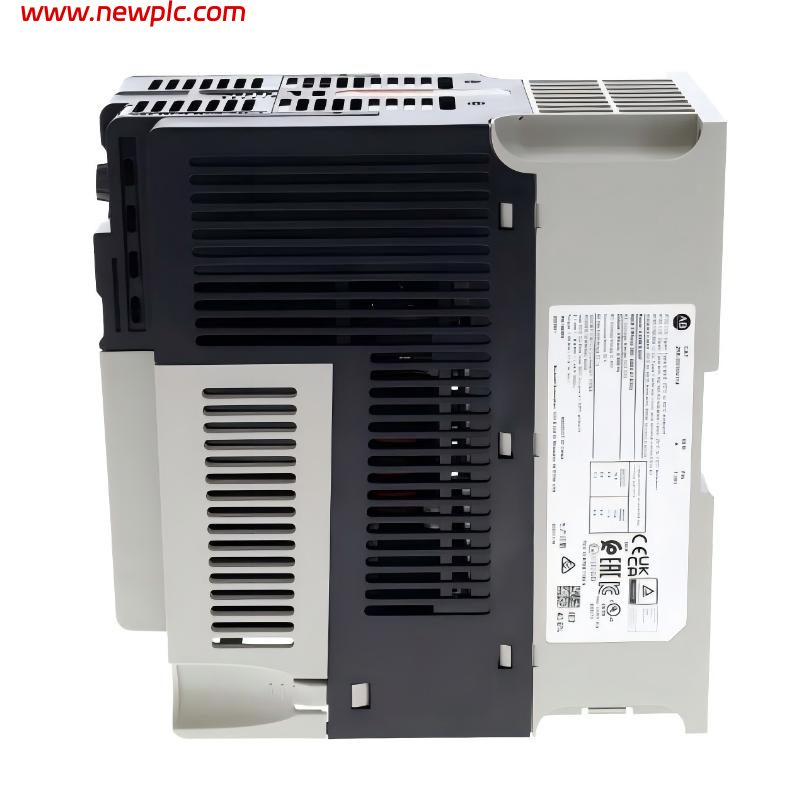

Allen-Bradley 20G11BD1K2AN0NNNNN PowerFlex 755 AC Drive – Technical Specifications and FAQ
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Type | PowerFlex 755 AC Drive |
| Catalog Number | 20G11BD1K2AN0NNNNN |
| Series | PowerFlex 755 |
| Input Voltage | 480 VAC |
| Input Phase | 3 Phase |
| Rated Current | 1135 A |
| Low-Duty Rating | 1100 HP |
| Normal-Duty Rating | 1000 HP |
| Heavy-Duty Rating | 800 HP |
| Frame | Frame 9 |
| Cooling Method | Air Cooled |
| Communication | Embedded EtherNet/IP |
| Input Configuration | AC Input with Precharge |
| DC Terminals | Included |
| Enclosure | Type 1, IP20 |
| Cabinet Style | 600 mm Deep MCC Style |
| Filtering | Yes |
| CM Jumper | Removed |
| Dynamic Braking | None |
| HIM | Blank — No HIM |
| Line Frequency | 50/60 Hz |
| Dimensions | 600 mm deep MCC-style Frame 9; overall height and width depend on the packaged cabinet arrangement |
| Weight | Approx. 1,270 kg |
| Lifecycle Status | Discontinued |
| Discontinued Date | June 30, 2024 |
| Direct Replacement | 20G11BD1K2JN0NNNNN |
FAQ
FAQ
Q1: What is the Allen-Bradley 20G11BD1K2AN0NNNNN?
A: It is an air-cooled Allen-Bradley PowerFlex 755 AC drive intended for high-power motor control. The unit is rated for 480 VAC three-phase input and 1135 A.
Q2: What are the horsepower ratings of the 20G11BD1K2AN0NNNNN?
A: The drive is rated at 1100 HP for Low Duty, 1000 HP for Normal Duty, and 800 HP for Heavy Duty operation.
Q3: What input voltage does this PowerFlex 755 use?
A: The catalog configuration is designed for 480 VAC, three-phase power. Rockwell Automation identifies the input type as AC input with precharge.
Q4: Does the drive have built-in EtherNet/IP communication?
A: Yes. The 20G11BD1K2AN0NNNNN includes embedded EtherNet/IP, allowing it to be integrated into compatible industrial automation and control networks.
Q5: What enclosure is used on this model?
A: It uses a Type 1, IP20 enclosure in a 600 mm deep MCC-style cabinet configuration. The published technical data also lists a 600 mm depth.
Q6: Does the 20G11BD1K2AN0NNNNN include a HIM keypad?
A: No. The AN0 configuration is listed with a blank operator interface, meaning no HIM is supplied as part of this catalog configuration.
Q7: Does this drive include dynamic braking?
A: No. The catalog configuration specifies no internal dynamic braking. Filtering is included, while the common-mode capacitor jumper is removed.
Q8: Is the 20G11BD1K2AN0NNNNN discontinued?
A: Yes. Rockwell Automation lists the model as discontinued effective June 30, 2024. The listed direct replacement is 20G11BD1K2JN0NNNNN.
