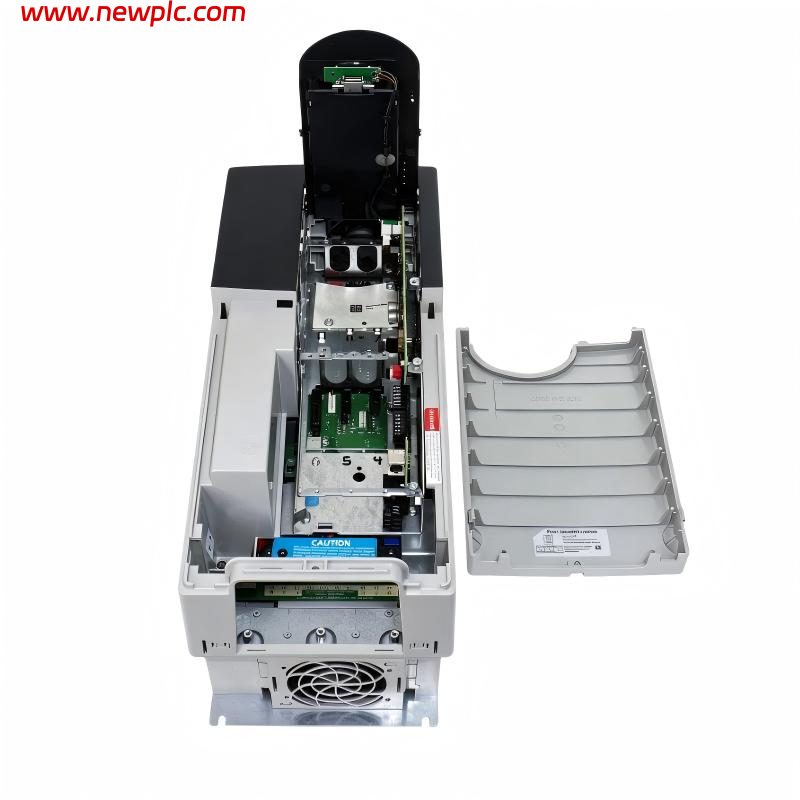

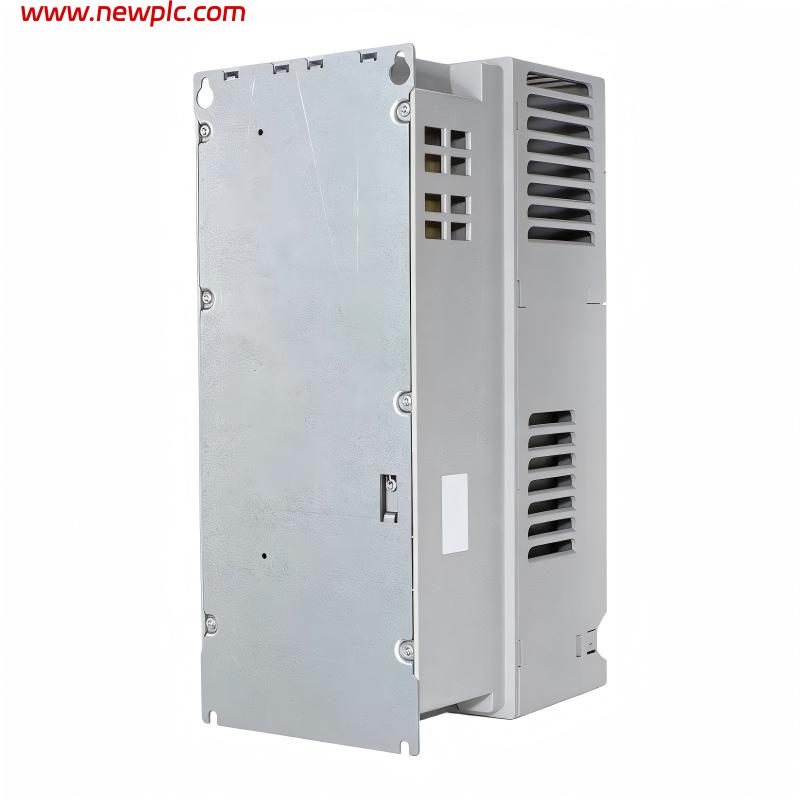

Allen-Bradley 20G11BF590JN0NNNNN PowerFlex 755 AC Drive – Technical Specifications and FAQ
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Type | PowerFlex 755 AC Drive |
| Catalog Number | 20G11BF590JN0NNNNN |
| Voltage Rating | 690 VAC |
| Input Phase | 3 Phase |
| Rated Current | 590 A |
| Power Rating – LD | 630 kW |
| Power Rating – ND | 560 kW |
| Power Rating – HD | 450 kW |
| Frame Size | Frame 9 |
| Cooling | Forced Air |
| Input Type | AC Input with Precharge and DC Terminals |
| Network Interface | Embedded EtherNet/IP |
| Enclosure | UL Type 1, IP20 |
| MCC Style | 600 mm Deep MCC Style |
| Filtering | Filtered |
| CM Jumper | Installed |
| Dynamic Braking | None |
| HIM | Blank – No HIM |
| Dimensions | 600 mm deep MCC-style configuration; overall height and width depend on the packaged installation |
| Weight | 1000kg |
FAQ
FAQ
Q1: What is the 20G11BF590JN0NNNNN?
A: It is an Allen-Bradley PowerFlex 755 AC Drive designed for high-power motor control applications using a 690 VAC, three-phase supply.
Q2: What is the rated current of this drive?
A: The drive has a rated current of 590 A.
Q3: What are the power ratings of the 20G11BF590JN0NNNNN?
A: The ratings are 630 kW for light duty, 560 kW for normal duty, and 450 kW for heavy duty.
Q4: What frame size does this PowerFlex 755 use?
A: This model uses Frame 9.
Q5: Does the drive support EtherNet/IP communication?
A: Yes. Embedded EtherNet/IP is included for connection to compatible industrial automation and control systems.
Q6: What enclosure and mounting configuration does it use?
A: The drive is specified as UL Type 1, IP20, with a 600 mm deep MCC-style configuration.
Q7: Does the 20G11BF590JN0NNNNN include a HIM?
A: No. The JN0 configuration is specified as blank, meaning no HIM is included.
Q8: Does this model include dynamic braking?
A: No. Rockwell Automation specifies dynamic braking as none for this catalog configuration.
