Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Family | PowerFlex Digital DC Drive |
| Catalog Number | 20P41AB180RA0NNN |
| Drive Type | Regenerative DC drive |
| AC Input Voltage | 240 VAC (208 VAC), 3-phase |
| Rated Armature Current | 180 A |
| Motor Rating | 50 HP / 37 kW |
| Frame Size | Frame B |
| Enclosure | IP20, NEMA/UL Type Open |
| Motor Operation | Regenerative |
| Field Supply | Regulated field converter |
| Overload Capability | 150% for 60 s; 200% for 3 s |
| Conformal Coating | Yes |
| HIM | No HIM, blank plate |
| Communication | No communication module |
| Dimensions (H × W × D) | 311 × 388 × 350 mm |
| Approx. Drive Weight | 25.5 kg |
| Approx. Shipping Weight | 27.5 kg |
FAQ
FAQ

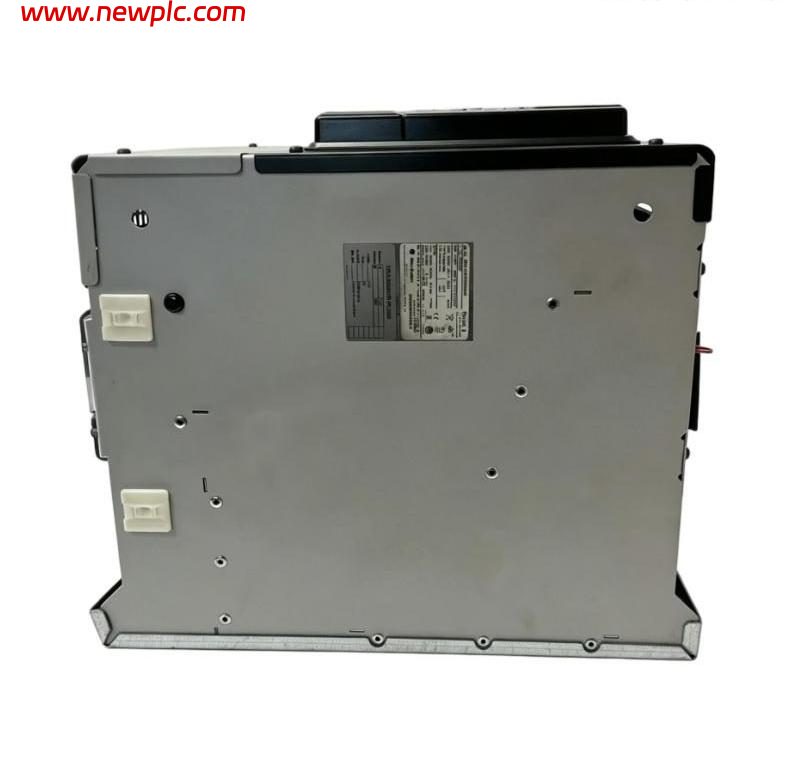

Q1: What is the 20P41AB180RA0NNN?
It is an Allen-Bradley PowerFlex Digital DC Drive for controlling DC motors, with regenerative operation.
Q2: What is the input voltage?
It is designed for 240 VAC (208 VAC), three-phase input.
Q3: What is the current and horsepower rating?
The drive is rated at 180 A and 50 HP (37 kW).
Q4: Is this a regenerative drive?
Yes. The 20P41 series configuration identifies this model as a regenerative PowerFlex DC drive, allowing energy to be returned to the AC supply during regenerative braking.
Q5: What frame size is used?
The 180 A model uses Frame B. Rockwell’s selection table places the 20P41AB180RA0NNN in Frame B.
Q6: Does it include a HIM keypad?
No. The catalog description specifies No HIM (Blank Plate).
Q7: Does it have a communication module?
No. This catalog configuration is specified with no communication module.
Q8: What are the dimensions and weight?
The approximate dimensions are 311 × 388 × 350 mm (H × W × D). The drive weighs approximately 25.5 kg, while the packaged weight is approximately 27.5 kg.
