Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 5700 |
| Model Number | 2198-ABQE |

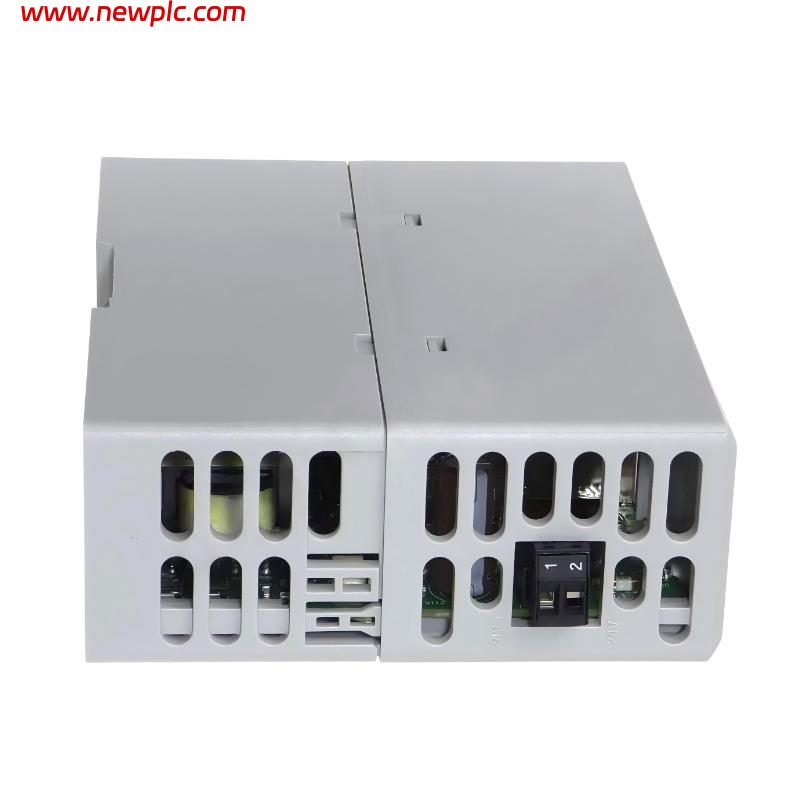

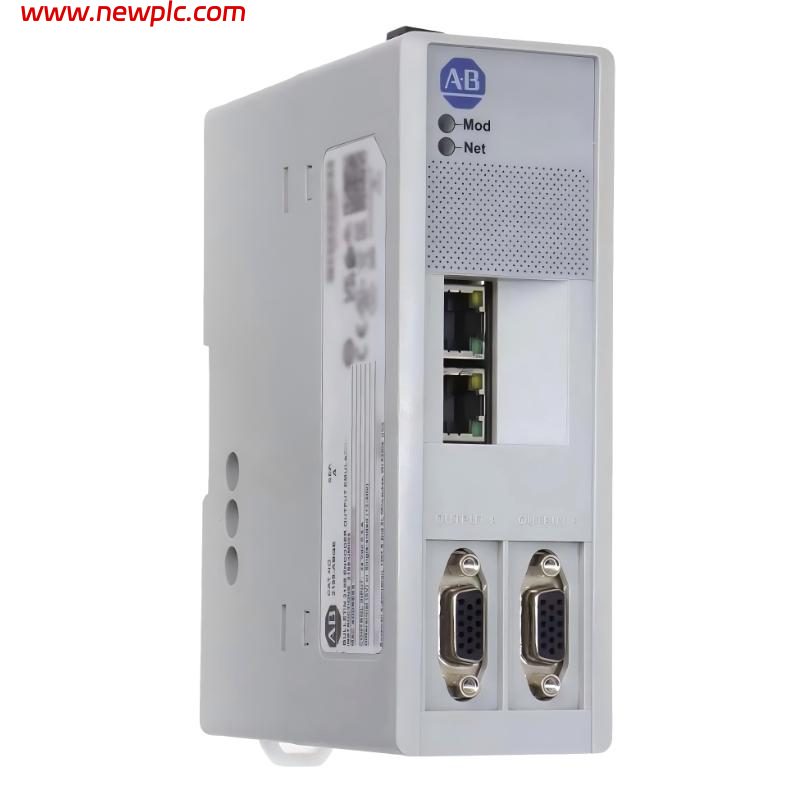

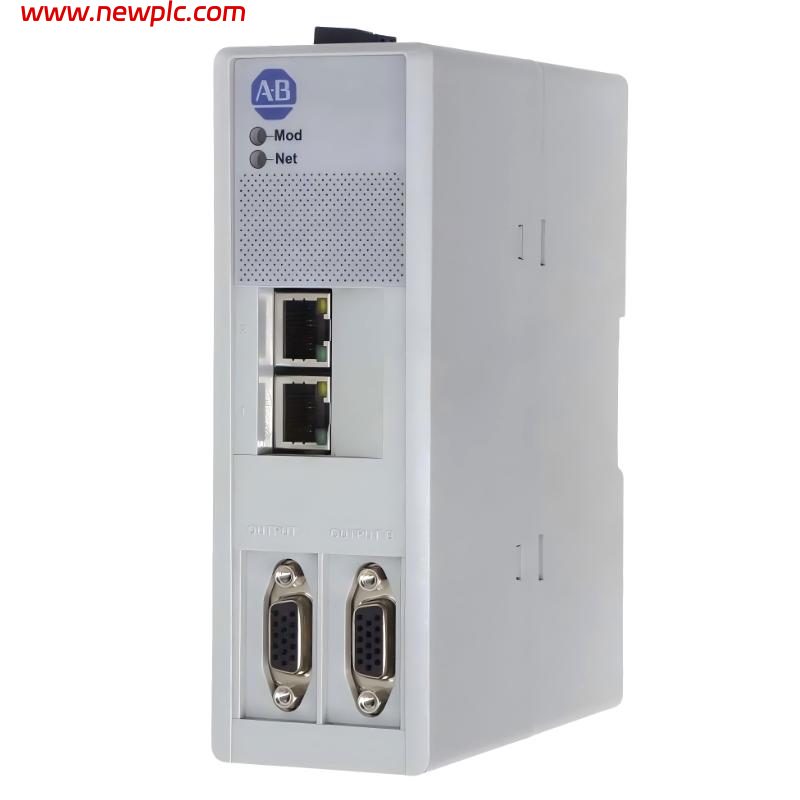

| Product Type | EtherNet/IP Encoder Output Emulator Module |
| Module Function | Encoder Pulse Output Emulator |
| Communication Protocol | EtherNet/IP |

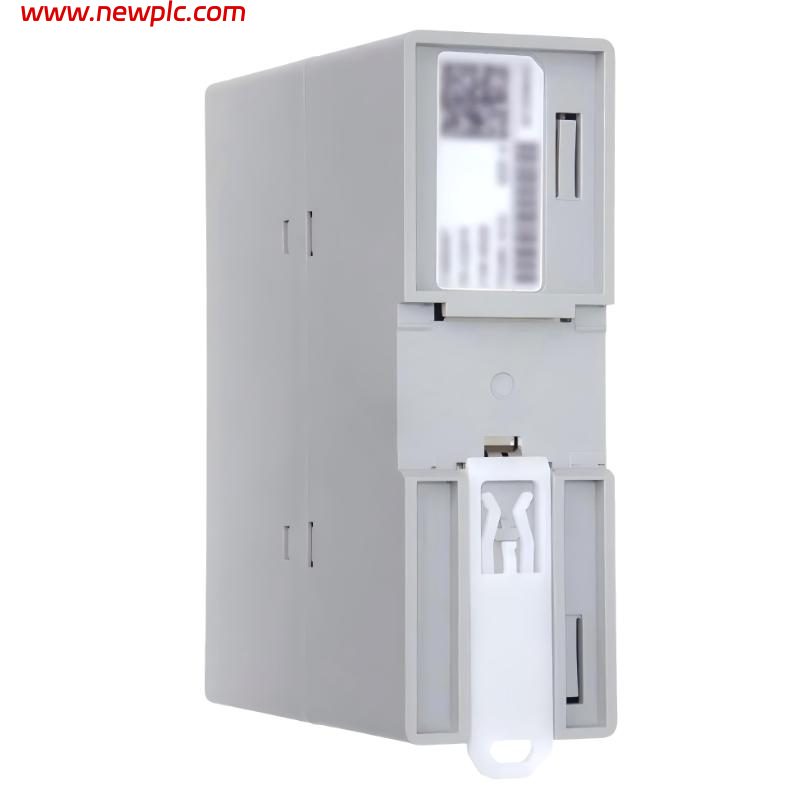

| Mounting Type | DIN-rail Mount |
| Output Channels | 2 Channels |
| Output Connectors | 2 × D-sub 15-pin Female Connectors |
| Ethernet Ports | 2 × RJ45 EtherNet/IP Ports |
| Input Power | 24V DC Control Power |
| Supported Axes | Real and Virtual Axes |
| Supported Encoder Outputs | Differential and Single-ended Encoder Signals |
| Maximum Cable Length | 100 m Differential / 30 m Single-ended |
| Compatible Systems | Kinetix Integrated Motion over EtherNet/IP |
| Typical Peripheral Devices | Cameras, Line-scan Vision Systems, Printers, Registration Systems |
| Status Indicators | Module Status, Network Status, Link/Activity LEDs |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, cUL, CE, C-Tick |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | Approx. 156 × 104 × 186 mm |
| Actual Weight | Approx. 0.51 kg |
| Included Accessories | 24V Wiring Plug |
| Optional Accessories | 2198-K57CK-D15M Connector Kit, 2198-KITCON-ABQE Spare Connector Kit |
| Typical Applications | Vision Systems, Registration Control, Glue Systems, Line Tracking, In-line Printing |
FAQ
FAQ
Q1: What is the Allen-Bradley 2198-ABQE used for?
A1: The 2198-ABQE is a Kinetix EtherNet/IP encoder output emulator module used to generate encoder pulse outputs for peripheral devices such as cameras and line-scan vision systems.
Q2: How many encoder output channels does the 2198-ABQE support?
A2: The module supports 2 independent encoder output channels through dual 15-pin D-sub female connectors.
Q3: What communication protocol does the 2198-ABQE use?
A3: The module communicates over the EtherNet/IP industrial network.
Q4: What input power is required for the 2198-ABQE?
A4: The module requires 24V DC control input power.
Q5: Which applications commonly use the 2198-ABQE?
A5: Common applications include registration systems, line tracking, glue systems, camera synchronization, hot foil embossers, and in-line printing systems.
Q6: What are the actual dimensions of the 2198-ABQE?
A6: The approximate dimensions are 156 × 104 × 186 mm (H × W × D).
Q7: What is the actual weight of the 2198-ABQE?
A7: The approximate weight is 0.51 kg.
Q8: Which accessories are commonly used with the 2198-ABQE?
A8: Common accessories include the 2198-K57CK-D15M connector kit and the 2198-KITCON-ABQE spare connector and DIN-rail end-anchor kit.
