Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 5700 |

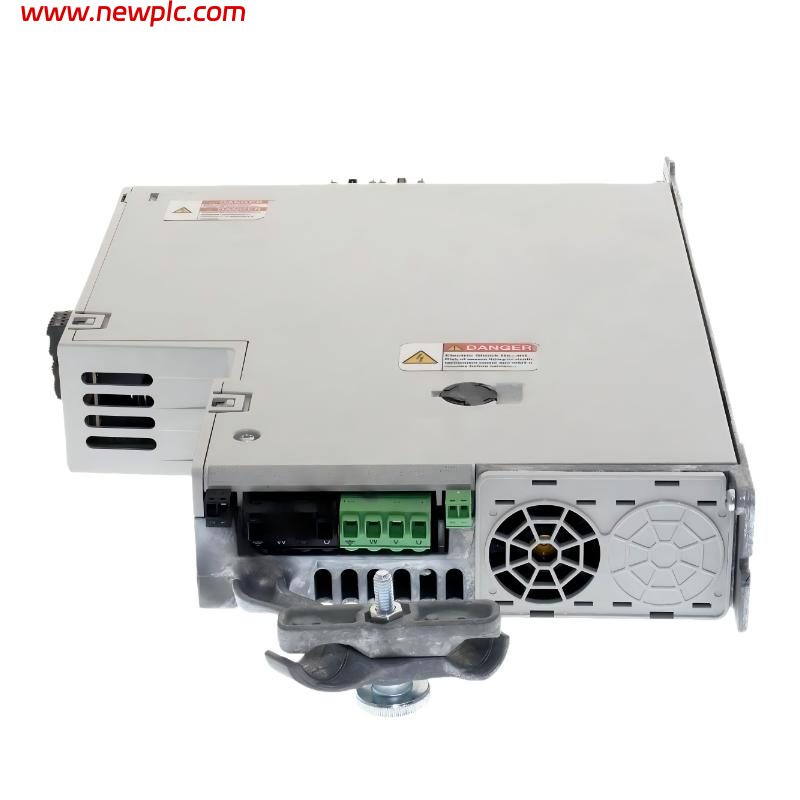

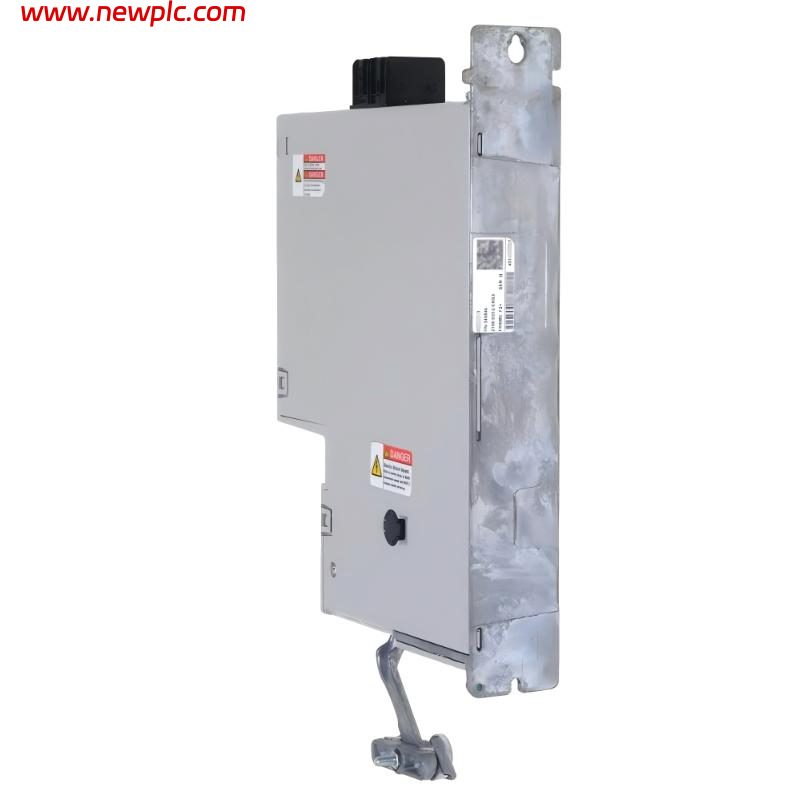

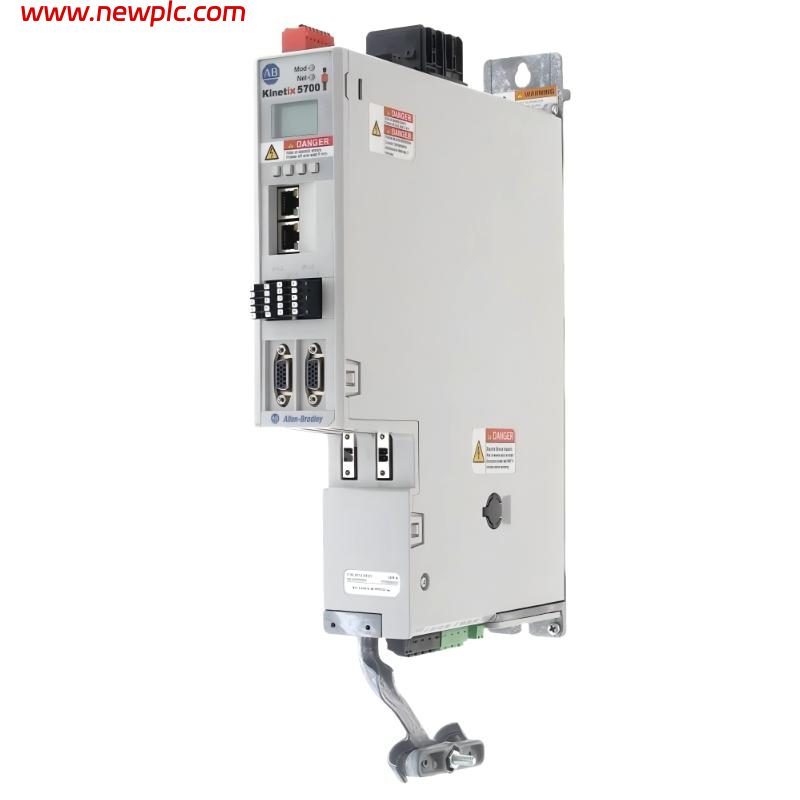

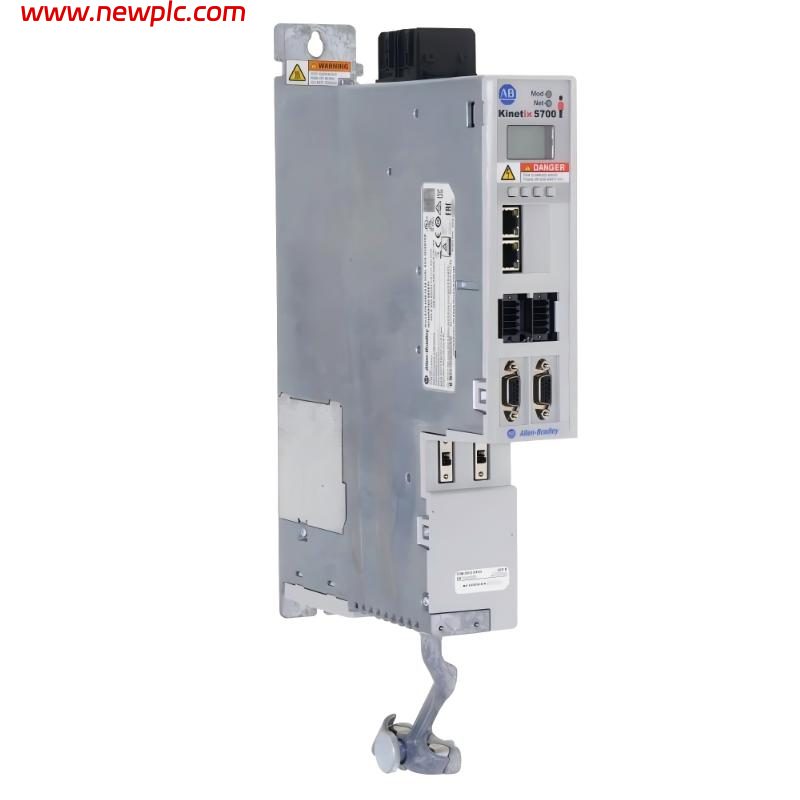

| Model Number | 2198-D012-ERS3 |
| Product Type | Dual-axis Servo Drive |
| Drive Function | EtherNet/IP Integrated Motion Servo Drive |
| Axis Configuration | 2 Axes |
| Input Voltage | 324…528V AC |
| Nominal Voltage Class | 400V Class |
| Input Phase | 3-Phase |
| Input Frequency | 47…63 Hz |
| Continuous Output Current | 12 A RMS per Axis |
| Peak Output Current | 36 A Peak per Axis |
| Continuous Output Power | Approx. 5.5 kW Total |
| Communication Protocol | EtherNet/IP |
| Ethernet Ports | Dual RJ45 EtherNet/IP Ports |
| Integrated Safety | Safe Torque-Off (STO), Safe Speed Monitor |
| Safety Rating | SIL 3 / PLe |
| Feedback Support | High-resolution Digital Servo Feedback |
| Compatible Motors | Kinetix VP and MP-Series Servo Motors |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, KC, RCM |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | Approx. 355 × 55 × 196 mm |
| Actual Weight | Approx. 3.0 kg |
| Typical Applications | Robotics, Packaging Machinery, Material Handling, High-performance Motion Control |
FAQ
FAQ
Q1: What is the Allen-Bradley 2198-D012-ERS3 used for?
A1: The 2198-D012-ERS3 is a Kinetix 5700 dual-axis servo drive designed for integrated motion control applications using EtherNet/IP networks.
Q2: How many axes does the 2198-D012-ERS3 support?
A2: The drive supports two servo axes in a single compact drive module.
Q3: What is the continuous output current of the 2198-D012-ERS3?
A3: The drive provides 12 A RMS continuous output current per axis.
Q4: What communication protocol does the 2198-D012-ERS3 support?
A4: The drive supports integrated motion communication over EtherNet/IP.
Q5: Does the 2198-D012-ERS3 include integrated safety features?
A5: Yes. The drive includes Safe Torque-Off (STO) and advanced integrated safety features rated up to SIL 3 / PLe.
Q6: Which motors are compatible with the 2198-D012-ERS3?
A6: The drive is commonly used with Allen-Bradley Kinetix VP and MP-Series servo motors.
Q7: What are the actual dimensions and weight of the 2198-D012-ERS3?
A7: The approximate dimensions are 355 × 55 × 196 mm (H × W × D) and the approximate weight is 3.0 kg.
Q8: What are common applications for the 2198-D012-ERS3?
A8: Common applications include robotics, packaging machinery, material handling systems, automated assembly equipment, and precision industrial motion control systems.
