Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex Accessories |

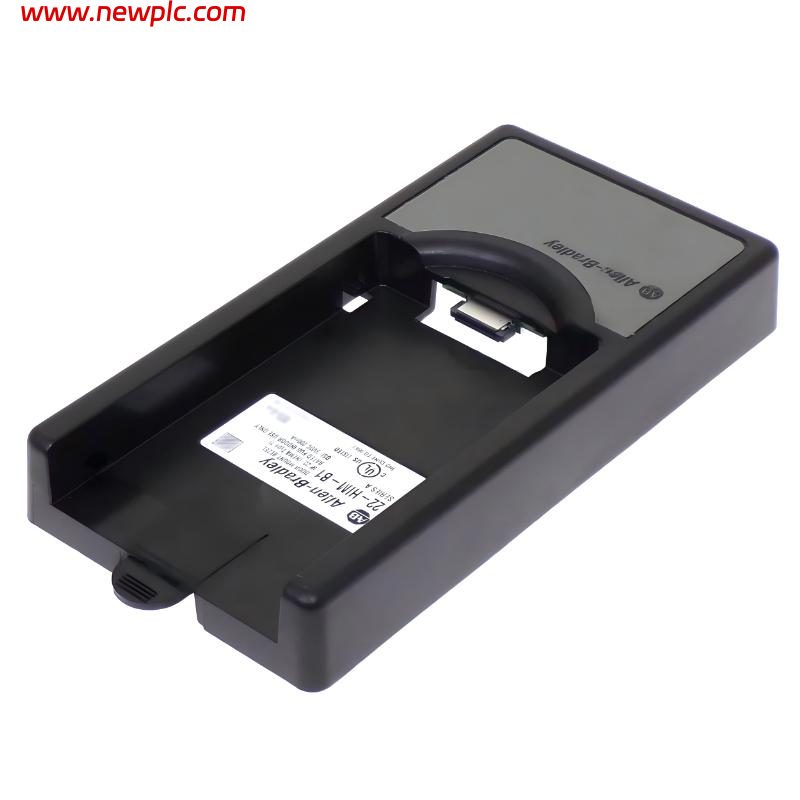

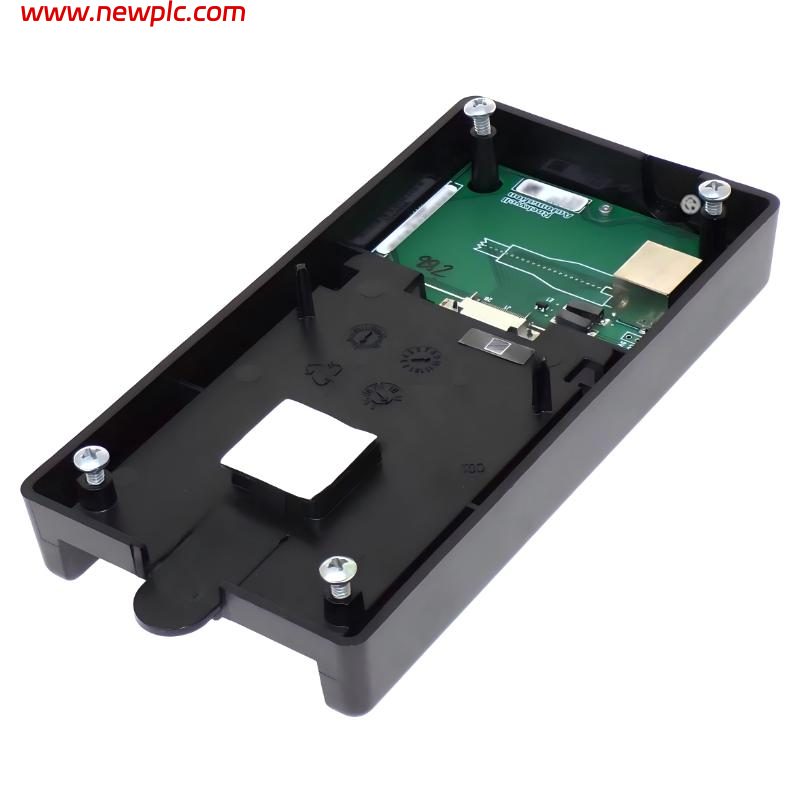

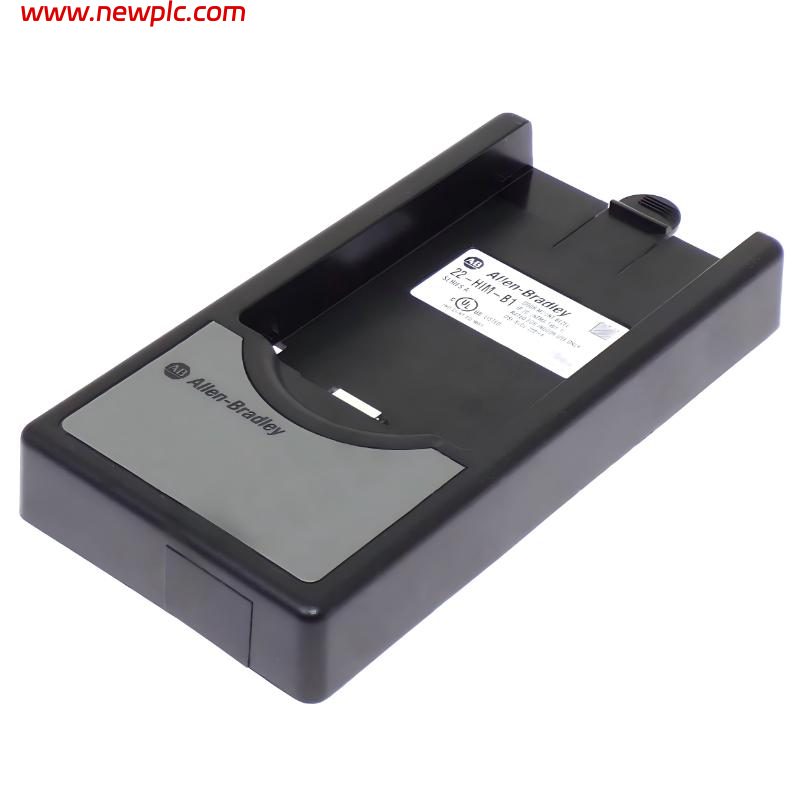

| Model Number | 22-HIM-B1 |
| Product Type | HIM Bezel Mounting Kit |
| Accessory Type | Bezel Kit |
| Function | Remote Panel Mounting Kit for HIM |
| Compatible HIM | 22-HIM-A3 Handheld HIM |
| Compatible Drives | PowerFlex 4, 4M, 40, 40P, 400 Series |
| Included Components | Remote Mount Unit with RJ45 Cable |
| Cable Type | RJ45 Communication Cable |
| Cable Length | Approx. 2 m |
| Mounting Type | Panel Mount |
| Enclosure Rating | IP30 / NEMA Type 1 |
| Material | Industrial Plastic Housing |
| Interface Support | DSI / HIM Remote Connection |
| Certifications | UL, CE, KC, cUL, GOST |
| Lifecycle Status | Active |
| Country of Origin | Mexico |
| Actual Dimensions | Approx. 93 × 93 × 25 mm |
| Approximate Weight | Approx. 0.31 kg |
| Typical Applications | Remote Operator Interface Mounting for PowerFlex Drives |
FAQ
FAQ
Q1: What is the Allen-Bradley 22-HIM-B1 used for?
A1: The 22-HIM-B1 is a bezel mounting kit designed for remotely mounting a 22-HIM-A3 Human Interface Module (HIM) on a panel door or enclosure.
Q2: Which drives are compatible with the 22-HIM-B1?
A2: The kit is compatible with Allen-Bradley PowerFlex 4, 4M, 40, 40P, and 400 series drives.
Q3: What components are included in the 22-HIM-B1 kit?
A3: The kit includes a remote mounting bezel assembly and an RJ45 communication cable for connecting the HIM to the drive.
Q4: What HIM model is intended for use with the 22-HIM-B1?
A4: The bezel kit is specifically intended for use with the 22-HIM-A3 handheld Human Interface Module.
Q5: What is the enclosure protection rating of the 22-HIM-B1?
A5: The mounting kit is rated IP30 / NEMA Type 1 for indoor industrial panel applications.
Q6: What are the approximate dimensions of the 22-HIM-B1?
A6: The bezel dimensions are approximately 93 × 93 × 25 mm with a cable length of about 2 meters.
Q7: Is the 22-HIM-B1 still an active product?
A7: Yes. Rockwell Automation currently lists the 22-HIM-B1 lifecycle status as Active.
Q8: What are common applications for the 22-HIM-B1?
A8: Common applications include mounting PowerFlex drive operator interfaces on enclosure doors for easier local monitoring, parameter setup, and troubleshooting.
