Technical Specifications
| Item | Specification |
|---|---|

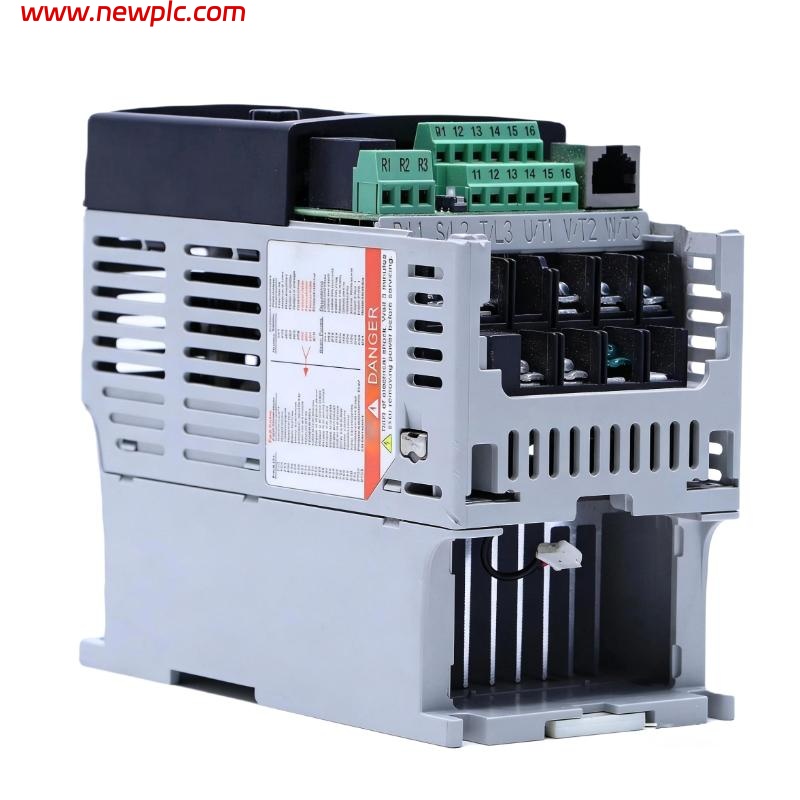

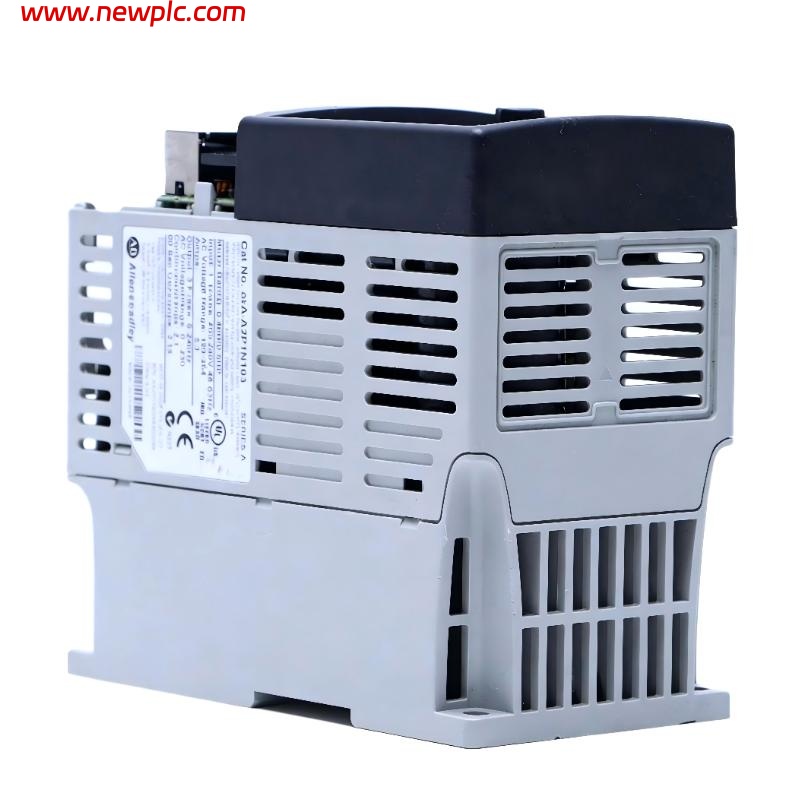

| Product Name | Allen-Bradley 22A-A2P1N103 |
| Product Series | PowerFlex 4 AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | General-purpose motor speed control (pumps, fans, conveyors, light machinery) |
| Input Voltage | 200–240 V AC, single-phase |
| Output Voltage | 0–230 V AC, three-phase |
| Output Current | 2.1 A |
| Power Rating | 0.4 kW (0.5 HP) |
| Control Method | V/Hz control |
| Frequency Range | 0–240 Hz |
| Communication | RS-485 (Modbus RTU) |

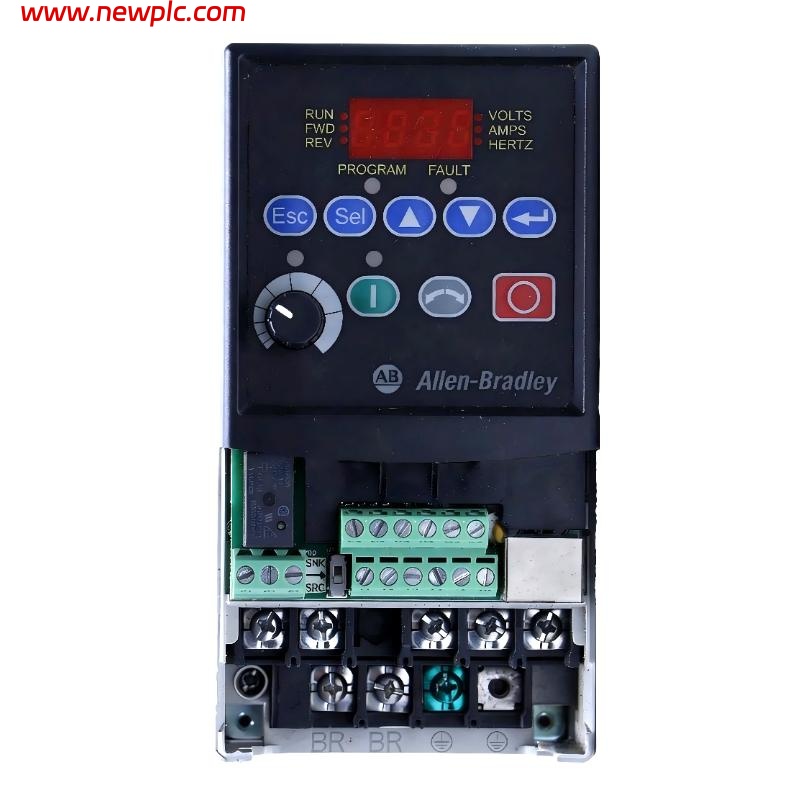

| Interface | Fixed keypad with LED display |
| Protection Level | IP20 (Open Type) |
| Mounting Type | Panel mount / DIN rail |
| Dimensions (L × W × H) | 23 cm × 14 cm × 22 cm |
| Weight | 0.35 kg |
| Cooling Method | Natural convection |
| Operating Temperature | -10°C to +50°C |
FAQ
FAQ
Q1. What is the main function of the 22A-A2P1N103?
It is used to control the speed of AC motors in industrial applications.
Q2. What type of motors is it suitable for?
It is suitable for small single-phase input motors up to 0.4 kW (0.5 HP).
Q3. What is the input power requirement?
It requires 200–240 V AC single-phase input.
Q4. What control method does it use?
It uses V/Hz (voltage/frequency) control for motor speed regulation.
Q5. What are the physical dimensions?
The unit measures 23 cm × 14 cm × 22 cm.
Q6. What is its weight?
The weight is 0.35 kg.
Q7. Does it support communication protocols?
Yes, it supports RS-485 communication using Modbus RTU.
Q8. Is this model still available for purchase?
No, it has been officially discontinued by the manufacturer.
