Technical Specifications
| Item | Specification |
|---|---|

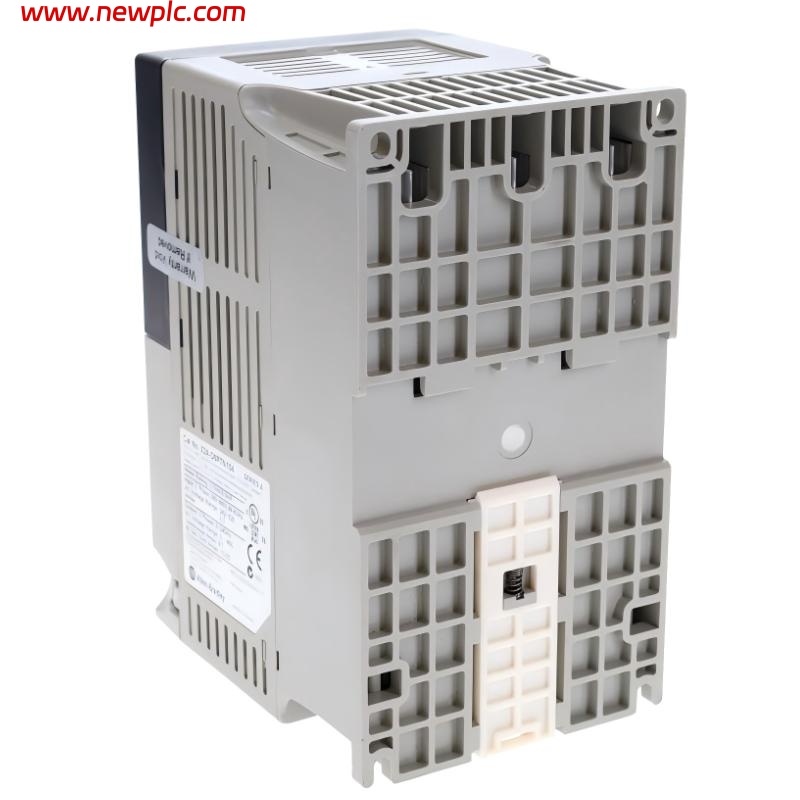

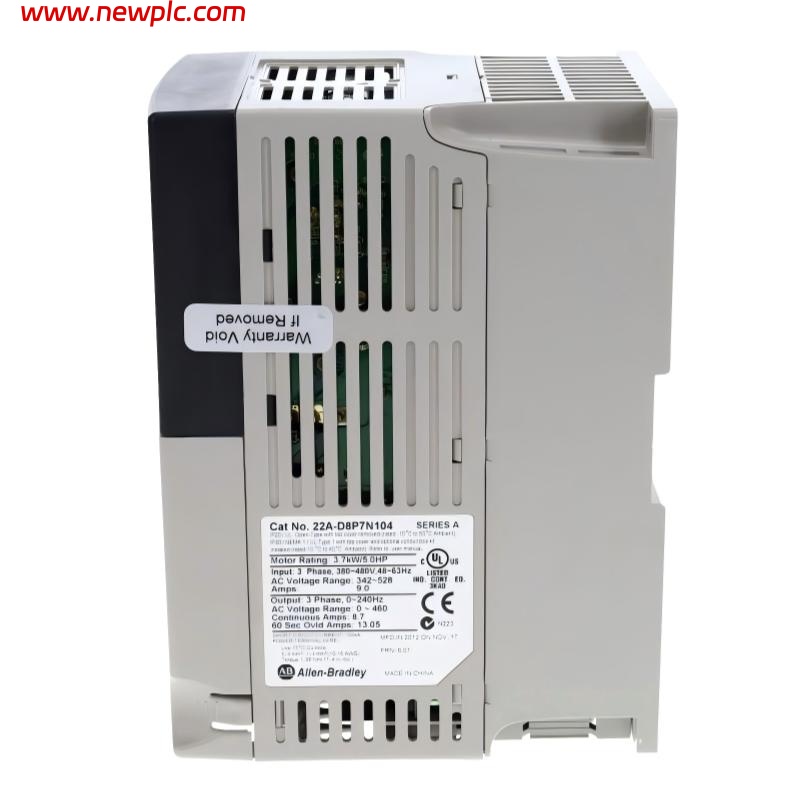

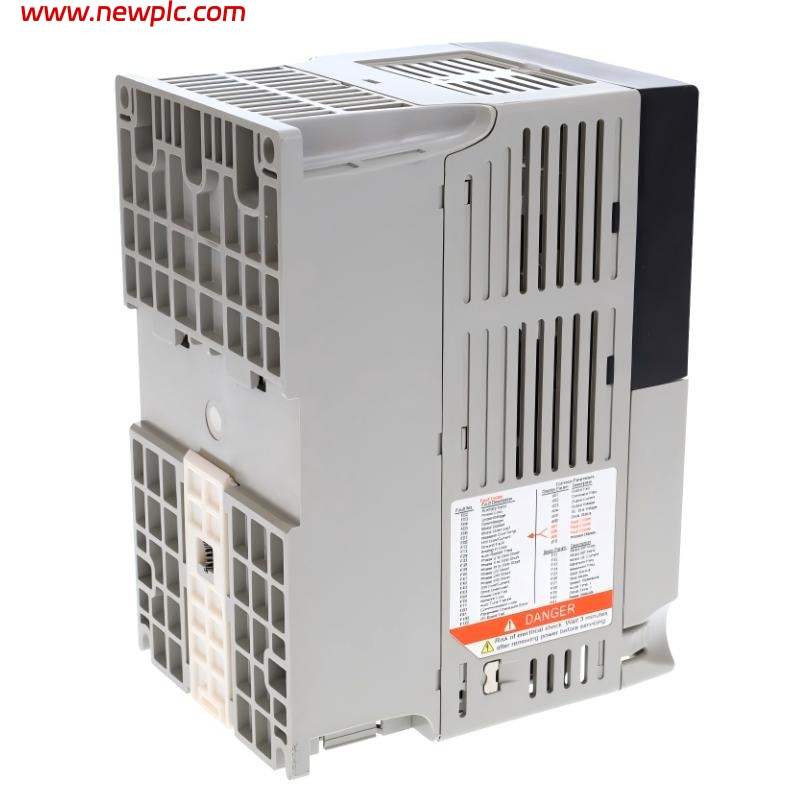

| Product Name | Allen-Bradley 22A-D8P7N104 |
| Product Series | PowerFlex 4 AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | Industrial motor speed control (fans, pumps, conveyors, heavy-duty machinery) |
| Input Voltage | 380–480 V AC, three-phase |
| Output Voltage | 0–460 V AC, three-phase |
| Output Current | 8.7 A |
| Power Rating | 3.7 kW (5 HP) |
| Frequency Range | 0–240 Hz |
| Control Method | V/Hz control |
| Communication | RS-485 (Modbus RTU / DSI) |
| Protection Rating | IP20 (open type) |
| Mounting Type | Panel mount |
| Interface | Integral keypad with LED display |
| Dimensions (L × W × H) | 278 mm × 161 mm × 194 mm |
| Weight | 2.13 kg |
| Cooling Method | Natural convection |
| Operating Environment | Industrial automation systems |
FAQ
FAQ
Q1. What is the main function of the 22A-D8P7N104?
It is used to control the speed and operation of three-phase AC motors in industrial applications.
Q2. What input power does it require?
It operates on 380–480 V AC three-phase input.
Q3. What is the rated output capacity?
It provides 8.7 A output current and supports motors up to 3.7 kW (5 HP).
Q4. What types of applications is it suitable for?
It is commonly used in pumps, fans, conveyors, and other industrial machinery.
Q5. What are the exact physical dimensions?
The dimensions are 278 mm × 161 mm × 194 mm.
Q6. What is the weight of the unit?
The weight is 2.13 kg.
Q7. Does it support communication protocols?
Yes, it supports RS-485 communication for integration into automation systems.
Q8. Is this model still available?
No, it has been officially discontinued, and replacement models are recommended.
