Technical Specifications
| Item | Specification |
|---|---|

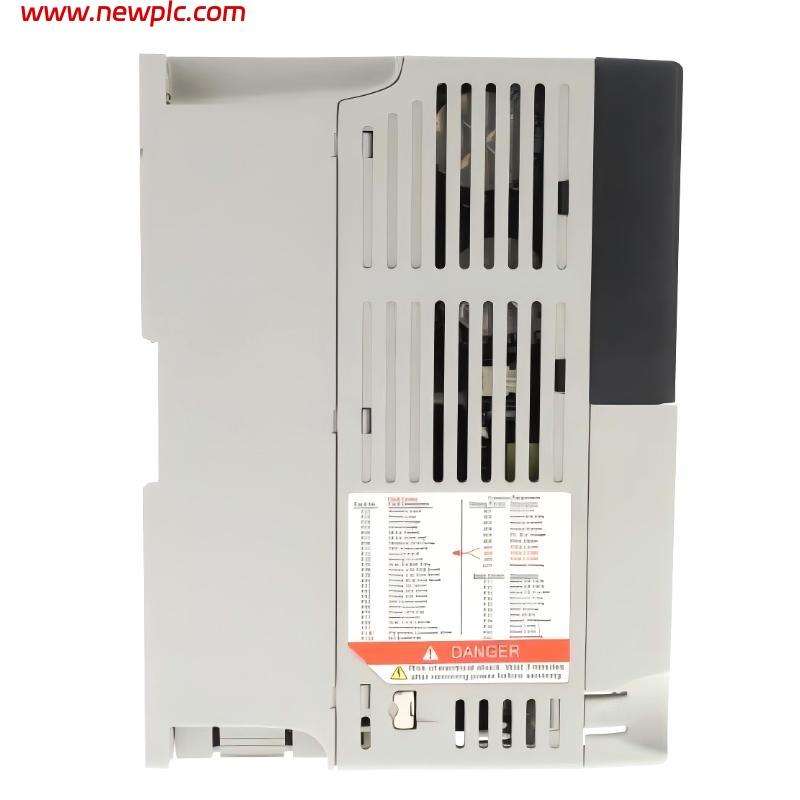

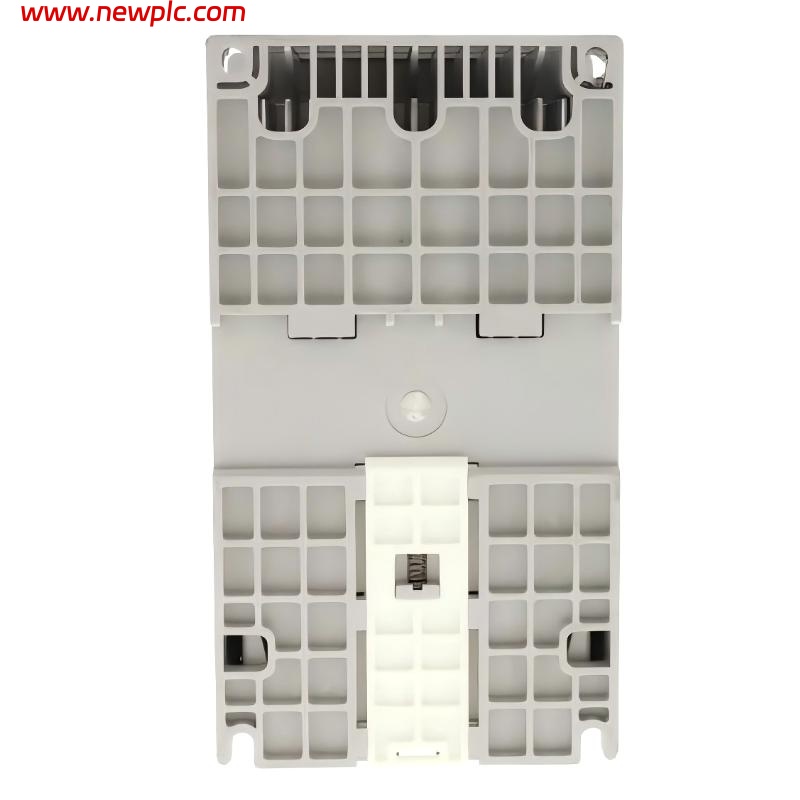

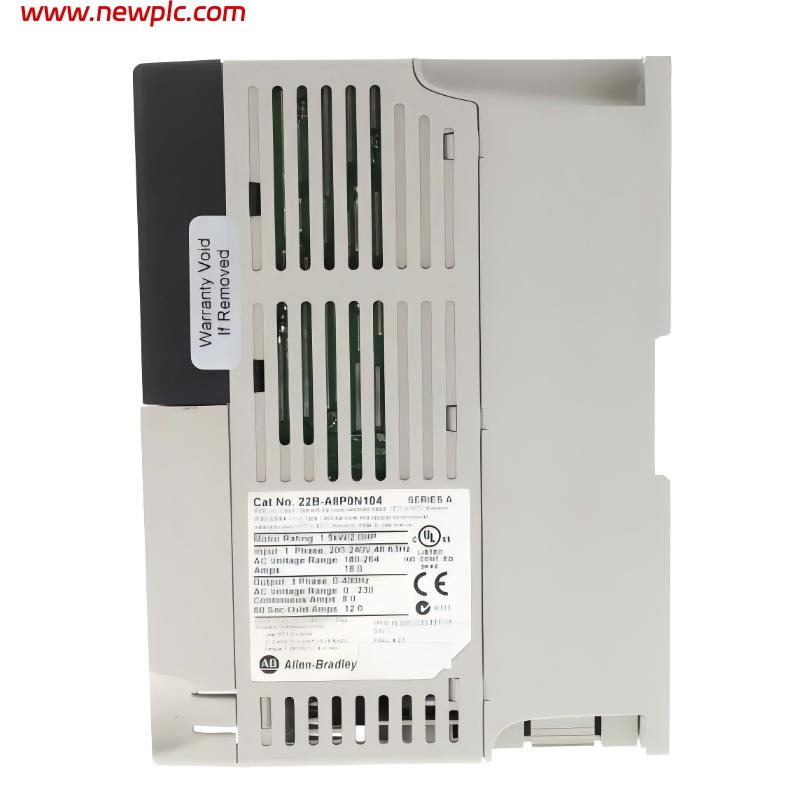

| Product Name | Allen-Bradley 22B-A8P0N104 |
| Product Series | PowerFlex 40 AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | Motor speed control for pumps, fans, conveyors, and light industrial machinery |
| Input Voltage | 200–240 V AC, single-phase |
| Output Voltage | 0–230 V AC, three-phase |
| Output Current | 8.0 A |
| Power Rating | 1.5 kW (2 HP) |
| Frequency Range | 50–60 Hz |
| Control Method | V/Hz control / Sensorless Vector Control |
| Communication | RS-485 (Modbus RTU / DSI) |
| Protection Rating | IP20 (open type) |
| Mounting Type | Panel mount |
| Interface | Integral keypad with LED display |
| Frame Size | B |
| Dimensions (L × W × H) | 280 mm × 157 mm × 191 mm |
| Weight | 2.16 kg |
| Cooling Method | Natural convection |
| Operating Environment | Industrial automation systems |
FAQ
FAQ
Q1. What is the 22B-A8P0N104 used for?
It is used to control the speed of AC motors in industrial applications such as pumps, fans, and conveyors.
Q2. What is the power rating of this drive?
It supports 1.5 kW (2 HP) motor applications.
Q3. What input voltage does it require?
It operates on 200–240 V AC single-phase input power.
Q4. What is the rated output current?
The drive provides 8.0 A output current.
Q5. What are the exact physical dimensions?
The dimensions are 280 mm × 157 mm × 191 mm.
Q6. What is the weight of the device?
The weight is approximately 2.16 kg.
Q7. Does it support communication protocols?
Yes, it supports RS-485 communication using Modbus RTU / DSI.
Q8. Is this model still available?
No, it has been officially discontinued as of June 30, 2025.
