Technical Specifications
| Item | Specification |
|---|---|

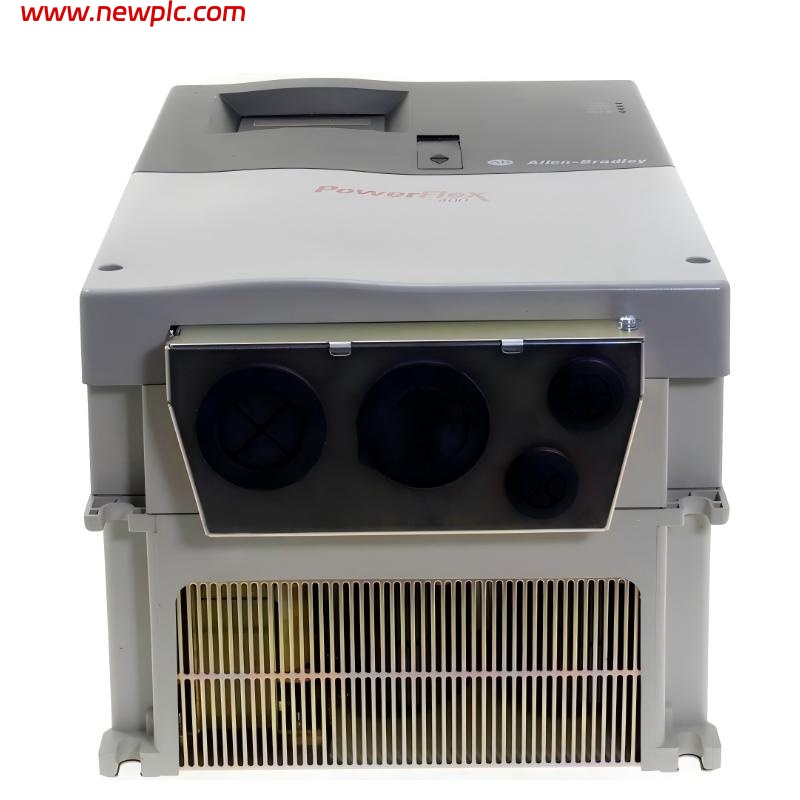

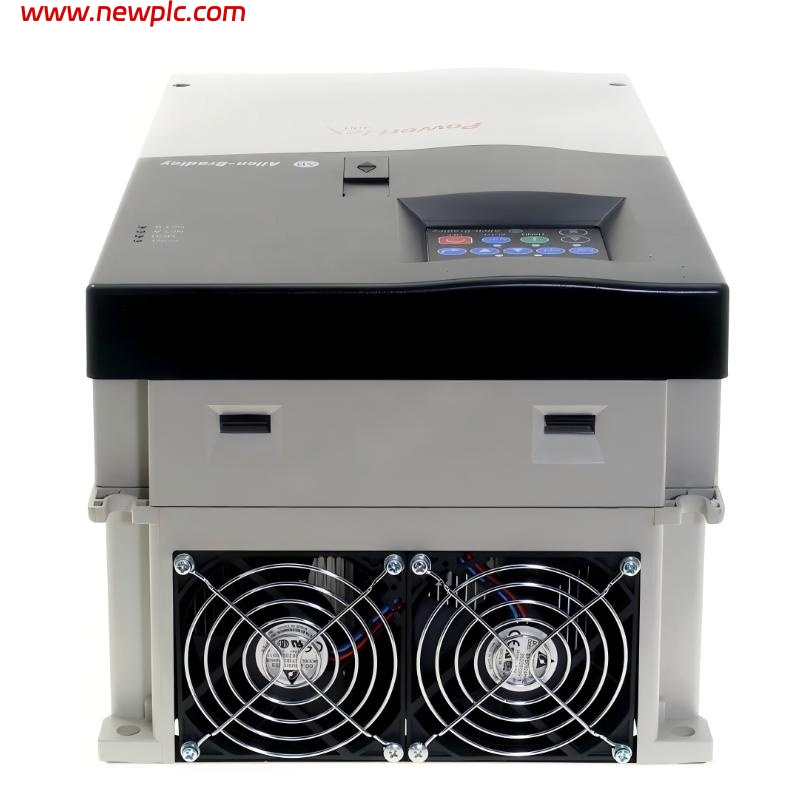

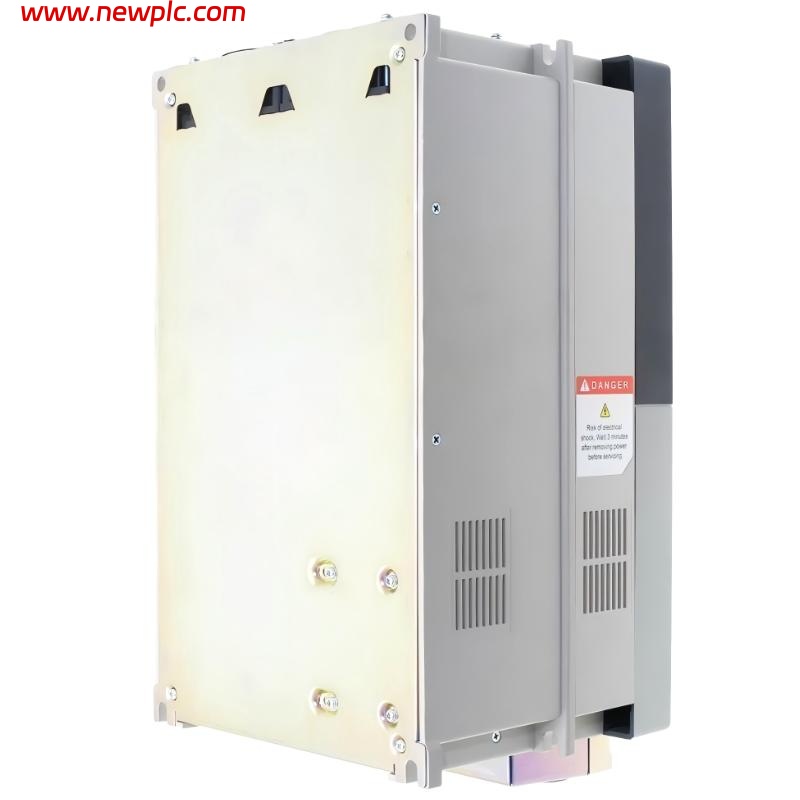

| Product Name | Allen-Bradley 22C-D045A103 |
| Product Series | PowerFlex 400 AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | Designed for fan and pump control in industrial HVAC and fluid systems |
| Input Voltage | 380–480 V AC, three-phase |
| Output Voltage | 0–480 V AC, three-phase |
| Output Current | 45.5 A |
| Power Rating | 22 kW (30 HP) |
| Frequency Range | 0–320 Hz |
| Control Method | V/Hz control |
| Communication | RS-485 (Modbus RTU / DSI) |
| Protection Rating | IP30 / NEMA 1 |
| Mounting Type | Panel mount |
| Interface | Integral keypad with LED display |
| Frame Size | D |
| Dimensions (L × W × H) | 490 mm × 427 mm × 325 mm |
| Weight | 14.08 kg |
| Cooling Method | Forced air cooling |
| Power Factor | 0.98 |
| Brake IGBT | Not included |
| Operating Environment | Industrial automation / HVAC systems |
| Status | Active product lifecycle |
FAQ
FAQ
Q1. What is the 22C-D045A103 mainly used for?
It is primarily used for controlling fans and pumps in industrial HVAC and fluid handling systems.
Q2. What is the power capacity of this drive?
It supports up to 22 kW (30 HP) motor applications.
Q3. What input power does it require?
It operates on 380–480 V AC three-phase power supply.
Q4. What is the rated output current?
The drive provides a continuous output current of 45.5 A.
Q5. What are the exact physical dimensions?
The dimensions are 490 mm × 427 mm × 325 mm.
Q6. What is the weight of the device?
The weight is approximately 14.08 kg.
Q7. Does it include a braking unit?
No, it does not include a built-in brake IGBT.
Q8. Is this model still available?
Yes, it is currently in active lifecycle and still supported by the manufacturer.
