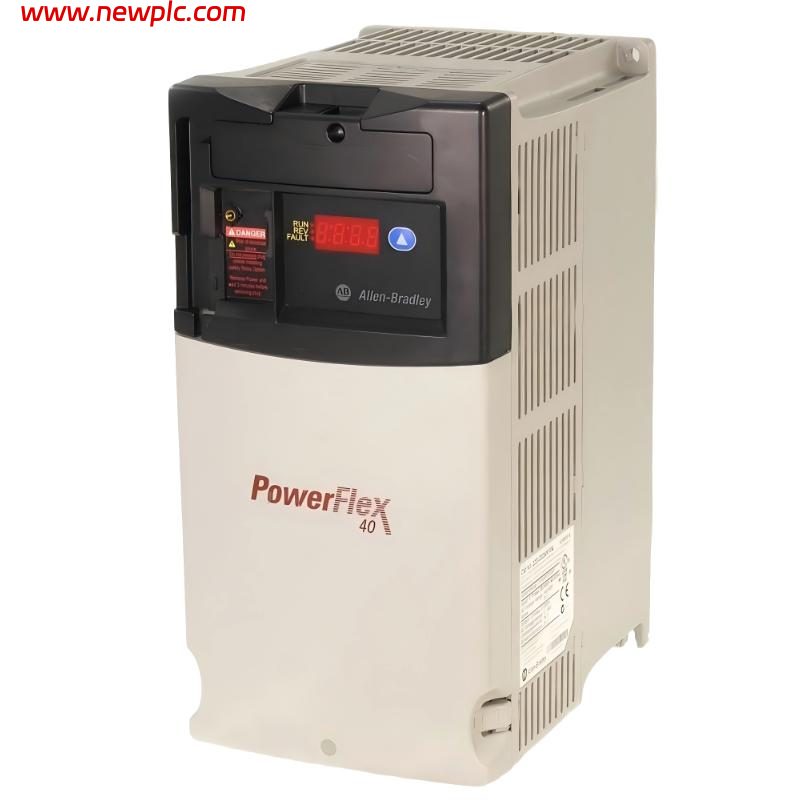

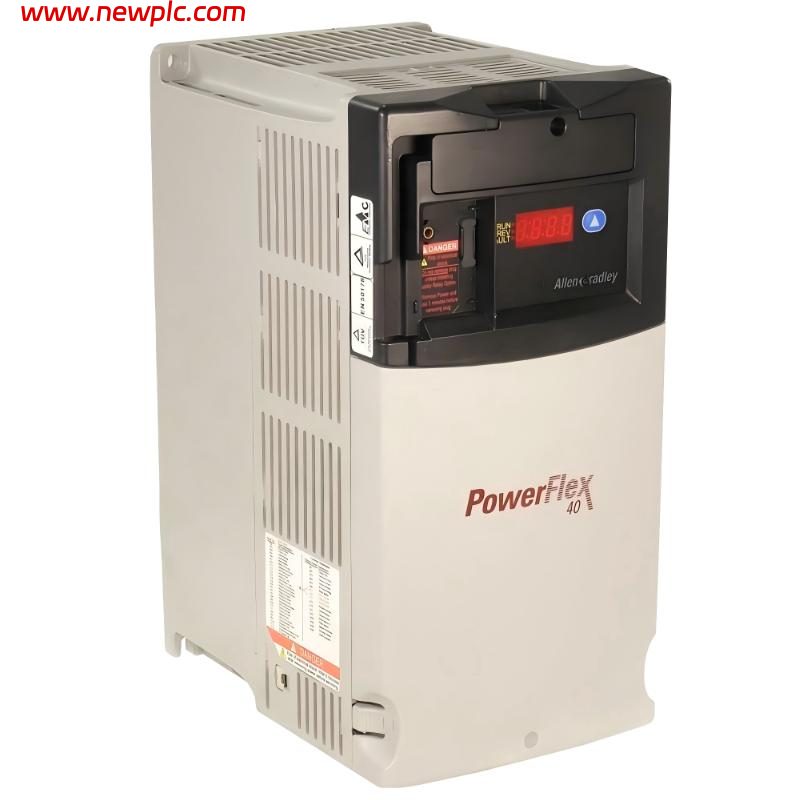

Technical Specifications

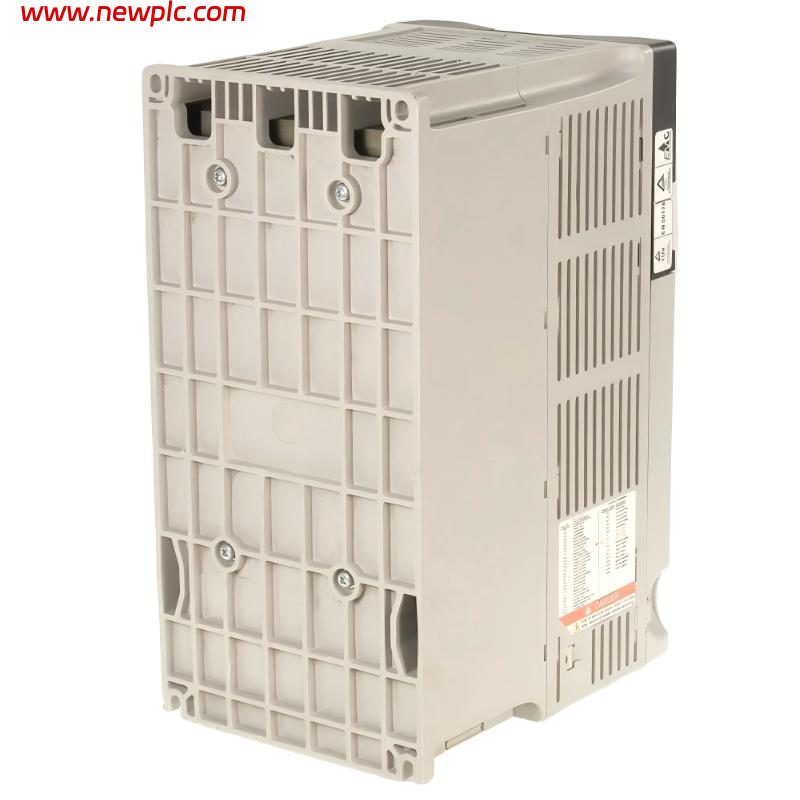

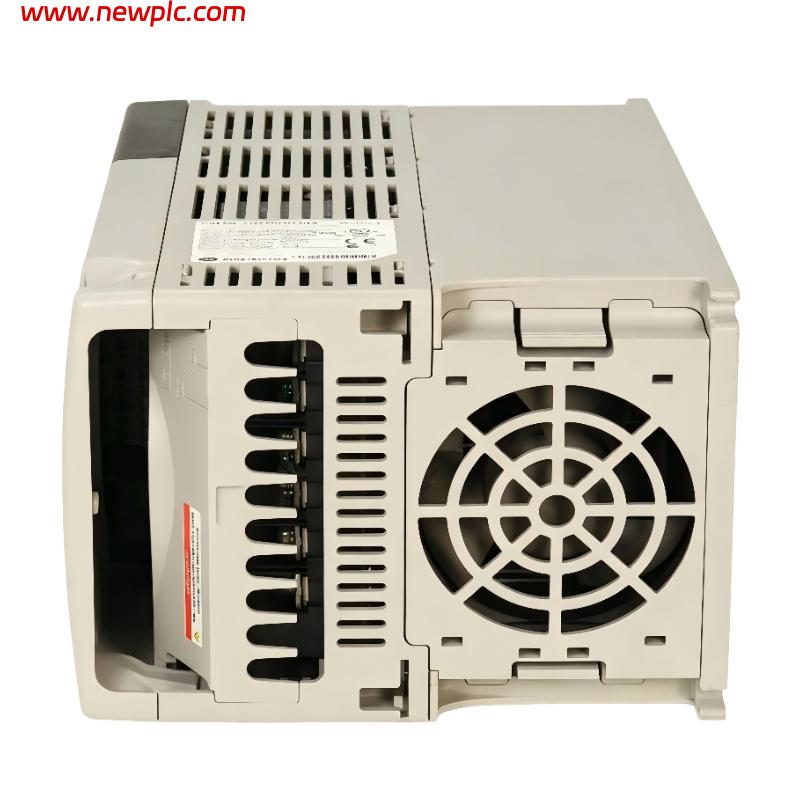

| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 40P |
| Model Number | 22D-D024N104 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Drive Type | Adjustable Frequency AC Drive |
| Input Voltage | 342…528V AC |
| Nominal Voltage Class | 480V AC |
| Input Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0…460V AC |
| Output Frequency Range | 0…500 Hz Programmable |
| Rated Output Current | 24 A |
| Input Current | 26 A |
| Output Power | 11 kW / 15 HP |
| Control Methods | V/Hz, Sensorless Vector, PWM |
| Overload Capacity | 150% for 60 sec / 200% for 3 sec |
| Communication Port | Embedded RS-485 |
| Optional Communication | EtherNet/IP, DeviceNet, PROFIBUS, BACnet, ControlNet, LonWorks |
| Digital Inputs | 7 |
| Digital Outputs | 2 Opto Outputs |
| Analog Inputs | 1 × 0–10VDC / 0–20mA |
| Analog Outputs | 1 × 0–10VDC / 0–20mA |
| Relay Output | 1 Form-C Relay |
| Brake IGBT | Included |
| EMC Filter | No CE-compliant filter |
| Enclosure Rating | IP20 / NEMA Open Type |
| Mounting Type | Panel Mount |
| Frame Size | Frame C |
| Cooling Method | Forced Air Cooling |
| Display | 4-digit LED Display with Status LEDs |
| Operating Temperature | -10°C to 50°C |
| Humidity | 0–95% Non-condensing |
| Certifications | UL, CE, cUL, KC, C-Tick |
| Lifecycle Status | Mature / Phase-out |
| Actual Dimensions (H × W × D) | Approx. 260 × 130 × 180 mm |
| Actual Weight | Approx. 7.3–9.4 kg |
| Typical Applications | Conveyors, Pumps, Fans, Packaging Machines, Material Handling |
FAQ
FAQ
Q1: What is the Allen-Bradley 22D-D024N104 used for?
A1: The 22D-D024N104 is a PowerFlex 40P AC drive used for variable-speed control of industrial AC motors in automation and process applications.
Q2: What motor size can the 22D-D024N104 control?
A2: The drive supports motors up to 11 kW (15 HP) with a rated output current of 24 A.
Q3: What input power does the 22D-D024N104 require?
A3: The drive requires 380–480V AC three-phase input power, with an allowable range of 342–528V AC.
Q4: Does the 22D-D024N104 include communication capability?
A4: Yes. It includes embedded RS-485 communication and supports optional EtherNet/IP, DeviceNet, PROFIBUS, BACnet, LonWorks, and ControlNet adapters.
Q5: Does the 22D-D024N104 include a brake transistor?
A5: Yes. The drive includes an integrated Brake IGBT for dynamic braking applications.
Q6: What are the actual dimensions and weight of the 22D-D024N104?
A6: The approximate dimensions are 260 × 130 × 180 mm. Reported weights vary by packaging and source from about 7.3 kg to 9.4 kg.
Q7: What enclosure type does the 22D-D024N104 use?
A7: The drive uses an IP20 / NEMA Open Type enclosure intended for panel mounting inside a control cabinet.
Q8: What are common applications for the 22D-D024N104?
A8: Common applications include conveyors, pumps, fans, mixers, packaging systems, and material-handling equipment requiring adjustable motor speed control.
