Technical Specifications
| Item | Specification |
|---|---|

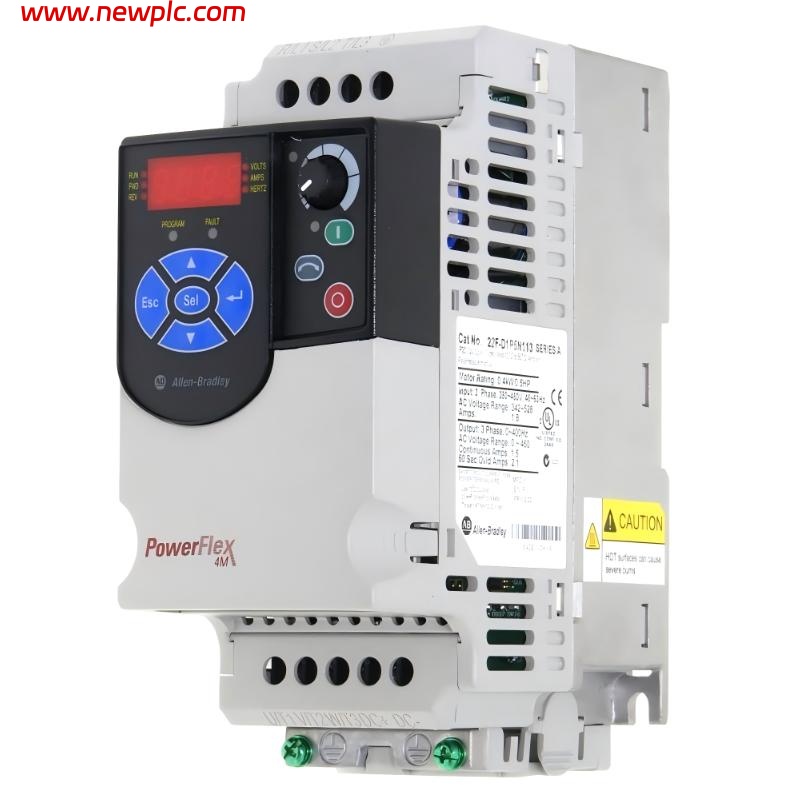

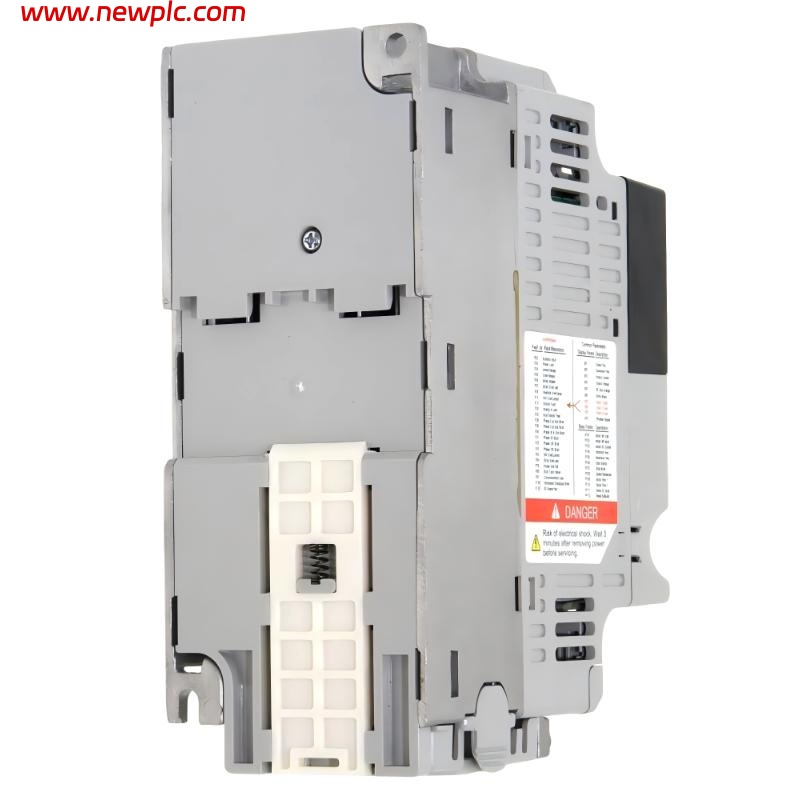

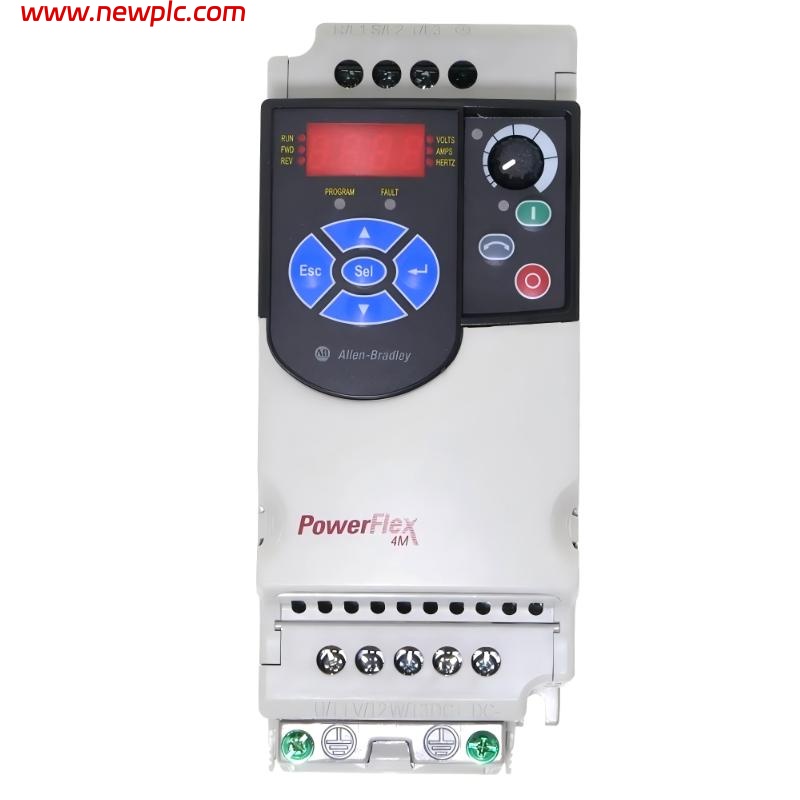

| Product Name | Allen-Bradley 22F-D1P5N113 |
| Product Series | PowerFlex 4M AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | Compact motor speed control (fans, pumps, conveyors, OEM equipment) |
| Input Voltage | 380–480 V AC, three-phase |
| Output Voltage | 0–460 V AC, three-phase |
| Output Current | 1.5 A |
| Power Rating | 0.4 kW (0.5 HP) |
| Frequency Range | 0–400 Hz |
| Control Method | V/Hz control |
| Communication | RS-485 (Modbus RTU / DSI) |
| Protection Rating | IP20 (open type) |
| Mounting Type | Panel mount / DIN rail |
| Interface | Integral keypad with potentiometer and LED display |
| Frame Size | A |
| Power Factor | 0.98 |
| Dimensions (L × W × H) | 235 mm × 190 mm × 140 mm |
| Weight | 1.45 kg |
| Cooling Method | Natural convection |
| Operating Temperature | -10°C to +50°C |
| Compliance | CE, UL, CSA |
| Status | Active |
FAQ
FAQ
Q1. What is the 22F-D1P5N113 used for?
It is used for basic and compact AC motor speed control in industrial and OEM applications.
Q2. What is the power rating of this drive?
It supports 0.4 kW (0.5 HP) motor applications.
Q3. What input power does it require?
It operates on 380–480 V AC three-phase input.
Q4. What is the rated output current?
The drive provides 1.5 A output current.
Q5. What are the exact physical dimensions?
The dimensions are 235 mm × 190 mm × 140 mm.
Q6. What is the weight of the device?
The weight is approximately 1.45 kg.
Q7. Does it support communication protocols?
Yes, it supports RS-485 communication using Modbus RTU / DSI.
Q8. Is this model still available?
Yes, it is currently in active lifecycle and supported by the manufacturer.
