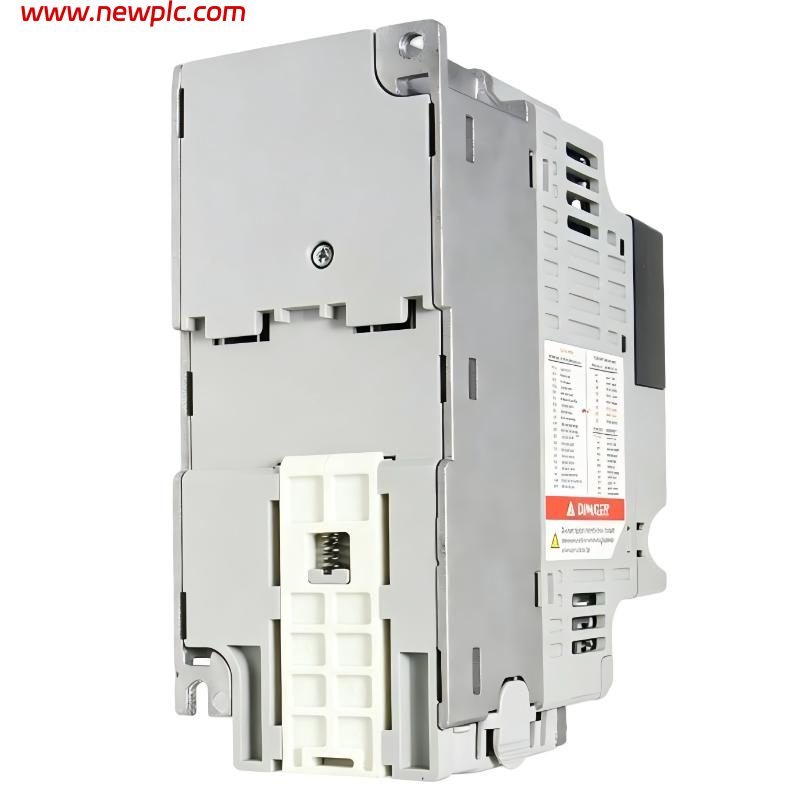

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 4M |
| Model Number | 22F-D4P2N103 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Drive Type | Compact Adjustable Frequency AC Drive |
| Input Voltage | 380…480V AC |
| Nominal Voltage Class | 480V AC |
| Input Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0…460V AC |
| Output Frequency Range | 0…400 Hz |
| Rated Output Current | 4.2 A |
| Output Power | 1.5 kW / 2 HP |
| Frame Size | Frame A |
| Control Method | V/Hz Control with Slip Compensation |
| Communication Port | Integral RS-485 |
| Supported Protocol | Modbus RTU |
| Digital Inputs | 5 |
| Digital Outputs | 1 Relay Output |
| Analog Inputs | 1 |
| Analog Outputs | 0 |
| Brake IGBT | Omitted |
| EMC Filter | No CE-compliant Filter |

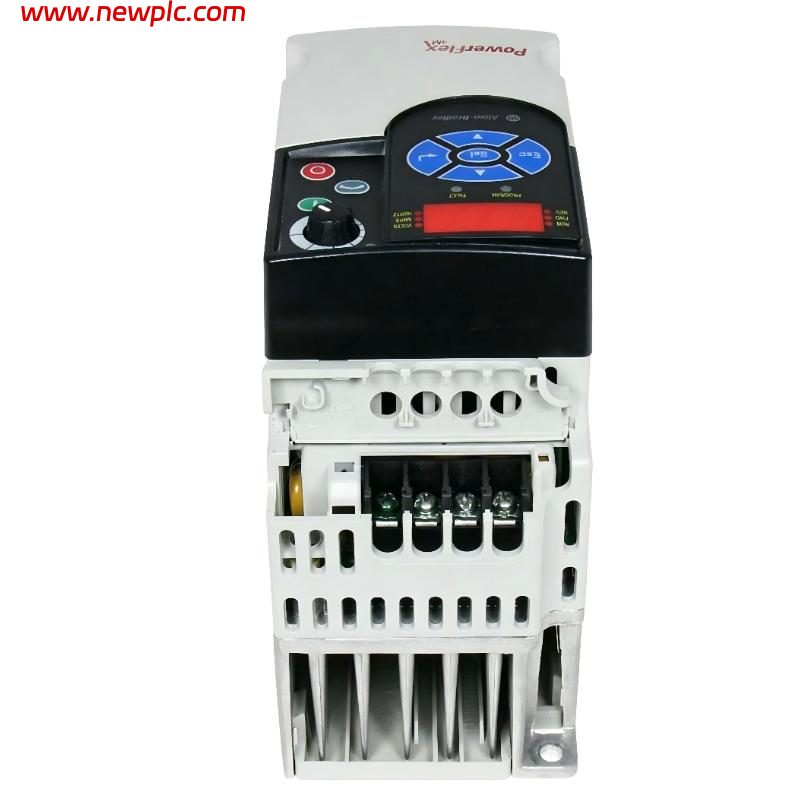

| User Interface | Fixed Digital Keypad with LED Display |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Mounting Type | Panel Mount / DIN Rail |
| Cooling Method | Natural Air Cooling |
| Power Factor | 0.98 |
| Overload Capacity | 150% for 60 sec / 200% for 3 sec |
| Operating Temperature | -10°C to +50°C |
| Certifications | UL, CE, CSA, KC, C-Tick |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | Approx. 174 × 72 × 136 mm |
| Actual Weight | Approx. 1.1–1.4 kg |
| Typical Applications | Small Conveyors, Fans, Pumps, Packaging Machines, OEM Equipment |
FAQ
FAQ
Q1: What is the Allen-Bradley 22F-D4P2N103 used for?
A1: The 22F-D4P2N103 is a compact PowerFlex 4M AC drive designed for variable-speed control of industrial AC motors in compact automation systems.
Q2: What motor size can the 22F-D4P2N103 control?
A2: The drive supports motors up to 1.5 kW (2 HP) with a rated output current of 4.2 A.
Q3: What input power does the 22F-D4P2N103 require?
A3: The drive operates on 380–480V AC three-phase input power at 50/60 Hz.
Q4: Does the 22F-D4P2N103 include a brake transistor?
A4: No. This configuration does not include an internal Brake IGBT or brake chopper.
Q5: What communication capability is included?
A5: The drive includes integrated RS-485 communication and supports Modbus RTU protocol.
Q6: What are the actual dimensions and weight of the 22F-D4P2N103?
A6: The approximate dimensions are 174 × 72 × 136 mm, and the actual weight is approximately 1.1–1.4 kg depending on packaging and source.
Q7: What enclosure type does the 22F-D4P2N103 use?
A7: The drive uses an IP20 / NEMA UL Open Type enclosure intended for panel or DIN-rail installation inside control cabinets.
Q8: What are common applications for the 22F-D4P2N103?
A8: Common applications include conveyors, fans, pumps, packaging equipment, and OEM machinery requiring compact motor-speed control.
