Technical Specifications
| Item | Specification |
|---|---|

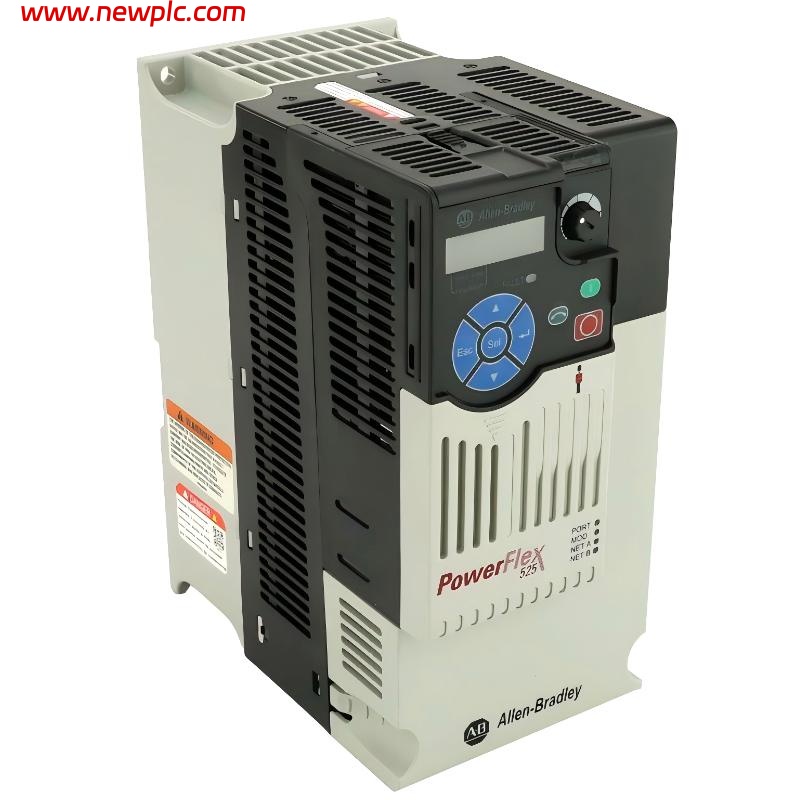

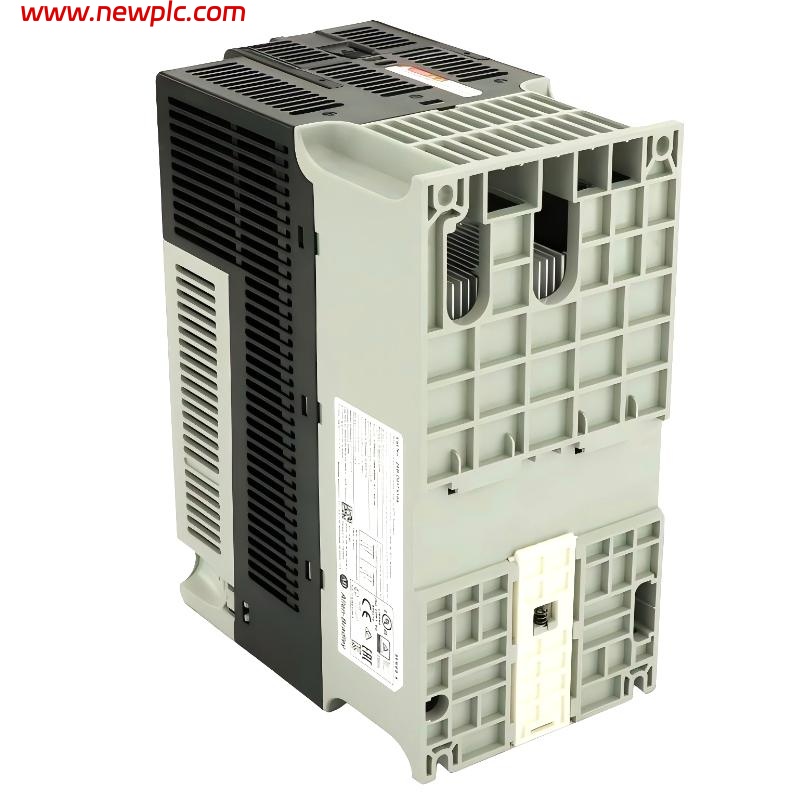

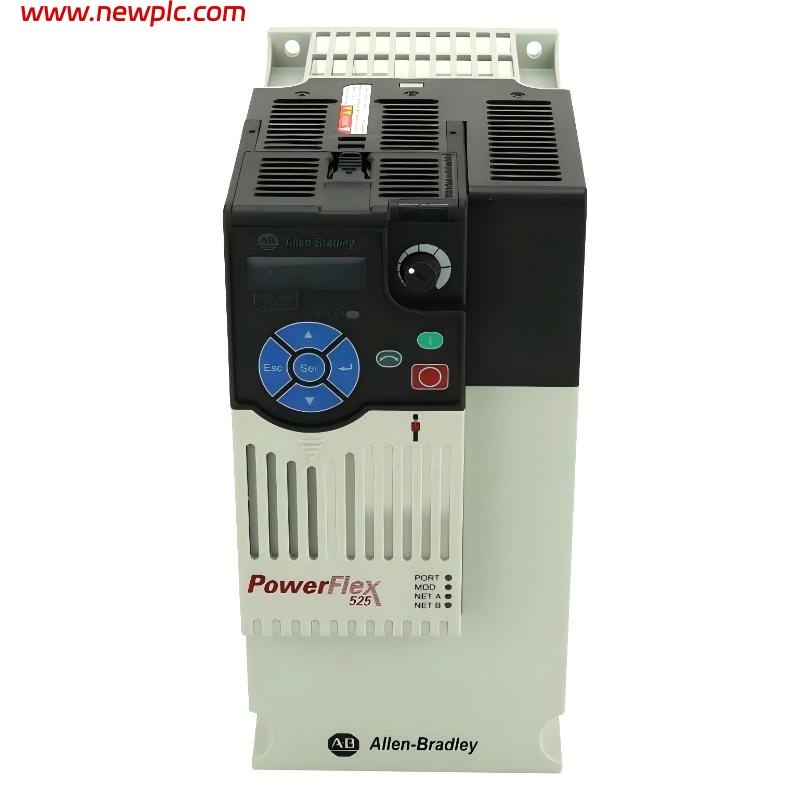

| Product Name | Allen-Bradley 25B-D017N114 |
| Product Series | PowerFlex 525 AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | Motor speed control for pumps, fans, conveyors, compressors, and general industrial automation |
| Input Voltage | 380–480 V AC, three-phase |
| Output Voltage | 0–460 V AC, three-phase |
| Output Current | 17.0–17.5 A |
| Power Rating | 7.5 kW (10 HP) |
| Frequency Range | 0–500 Hz |
| Control Method | V/Hz control / Sensorless Vector Control / Closed Loop Vector Control |
| Communication | Built-in EtherNet/IP + RS-485 (Modbus RTU) |
| Safety Function | Safe Torque Off (STO), SIL2 / Cat 3 |
| Protection Rating | IP20 (NEMA/Open Type) |
| Mounting Type | Panel mount / DIN rail |
| Interface | Integral keypad with potentiometer + LED display |
| Frame Size | C |
| Brake IGBT | Included |
| EMC Filter | Integrated |
| Dimensions (L × W × H) | 220 mm × 109 mm × 184 mm |
| Weight | 2.3–3.4 kg |
| Cooling Method | Natural convection / forced air (depending on load) |
| Operating Temperature | -20°C to +50°C |
| Status | Active |
FAQ
FAQ
Q1. What is the 25B-D017N114 used for?
It is used for precise speed control of AC motors in industrial automation systems such as conveyors, pumps, and HVAC equipment.
Q2. What is the power rating of this drive?
It supports 7.5 kW (10 HP) motor applications.
Q3. What input voltage does it require?
It operates on 380–480 V AC three-phase power supply.
Q4. What is the rated output current?
The output current is approximately 17 A.
Q5. What are the exact physical dimensions?
The dimensions are about 220 mm × 109 mm × 184 mm.
Q6. What is the weight of the device?
The weight is approximately 2.3 kg (varies slightly by configuration).
Q7. Does it support communication protocols?
Yes, it supports built-in EtherNet/IP and RS-485 Modbus RTU communication.
Q8. Does it include safety functions?
Yes, it includes Safe Torque Off (STO) safety functionality certified to SIL2 / Cat 3 standards.
