Technical Specifications
| Item | Specification |
|---|---|

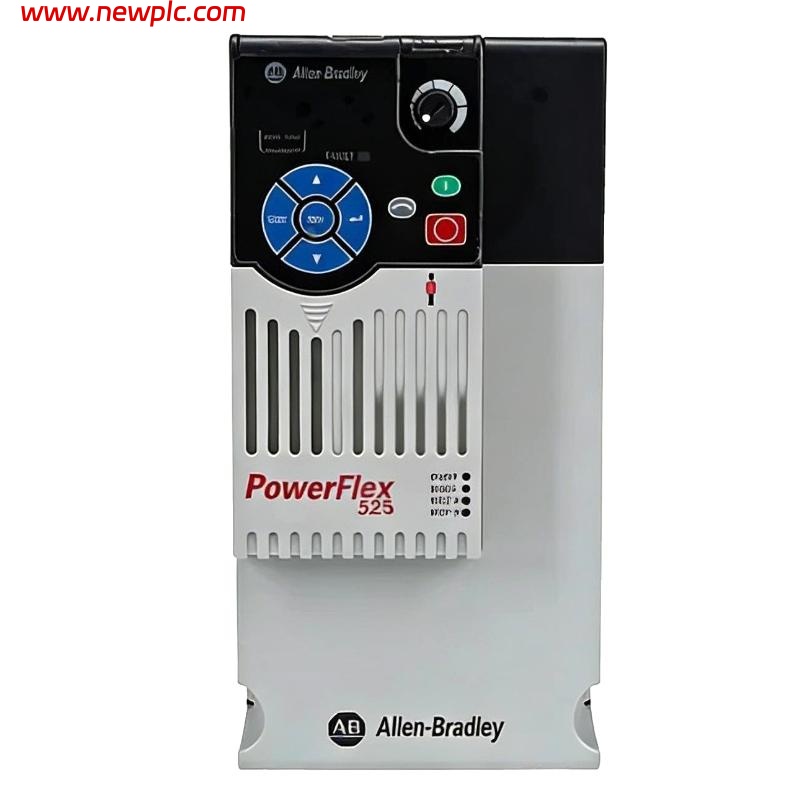

| Product Name | Allen-Bradley 25B-E012N104 |
| Product Series | PowerFlex 525 AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | Motor speed control for pumps, fans, conveyors, mixers, and industrial automation systems |
| Input Voltage | 446–660 V AC, three-phase |
| Output Voltage | 0–600 V AC, three-phase |
| Output Current | 12 A |
| Power Rating | 7.5 kW (10 HP) |
| Frequency Range | 0–500 Hz |
| Control Method | V/Hz control / Sensorless Vector Control / Closed Loop Vector Control |
| Communication | Built-in EtherNet/IP + RS-485 (Modbus RTU) |
| Safety Function | Safe Torque Off (STO), SIL2 / Cat 3 |
| Protection Rating | IP20 (Open Type) |
| Mounting Type | Panel mount |
| Interface | LCD keypad with navigation keys |
| Frame Size | C |
| Dimensions (L × W × H) | 220 mm × 109 mm × 184 mm |
| Weight | 1.94 kg |
| Cooling Method | Natural convection / forced air (depending on load) |
| Operating Temperature | -20°C to +60°C |
| Status | Active |
FAQ
FAQ
Q1. What is the 25B-E012N104 used for?
It is used for controlling the speed of AC motors in industrial applications such as conveyors, pumps, HVAC systems, and process equipment.
Q2. What is the power rating of this drive?
It supports 7.5 kW (10 HP) motor applications.
Q3. What input voltage does it require?
It operates on 446–660 V AC three-phase power supply.
Q4. What is the rated output current?
The drive provides 12 A output current.
Q5. What are the exact physical dimensions?
The dimensions are 220 mm × 109 mm × 184 mm.
Q6. What is the weight of the device?
The weight is approximately 1.94 kg.
Q7. Does it support industrial communication protocols?
Yes, it supports built-in EtherNet/IP and RS-485 Modbus RTU communication.
Q8. Does it include safety features?
Yes, it includes Safe Torque Off (STO) safety function certified to SIL2 / Cat 3 standards.
