Technical Specifications
| Item | Specification |
|---|---|

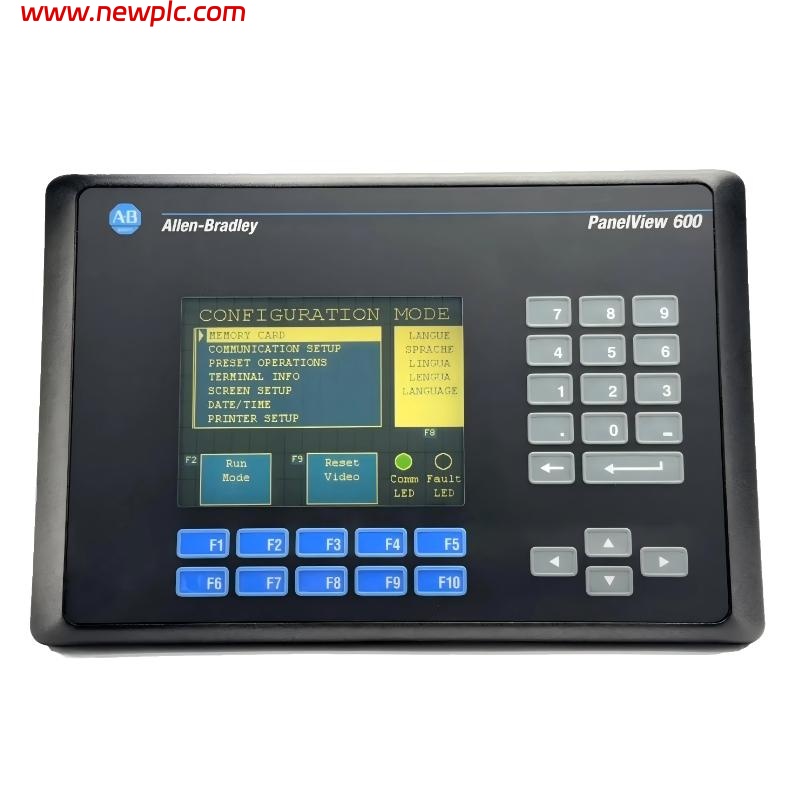

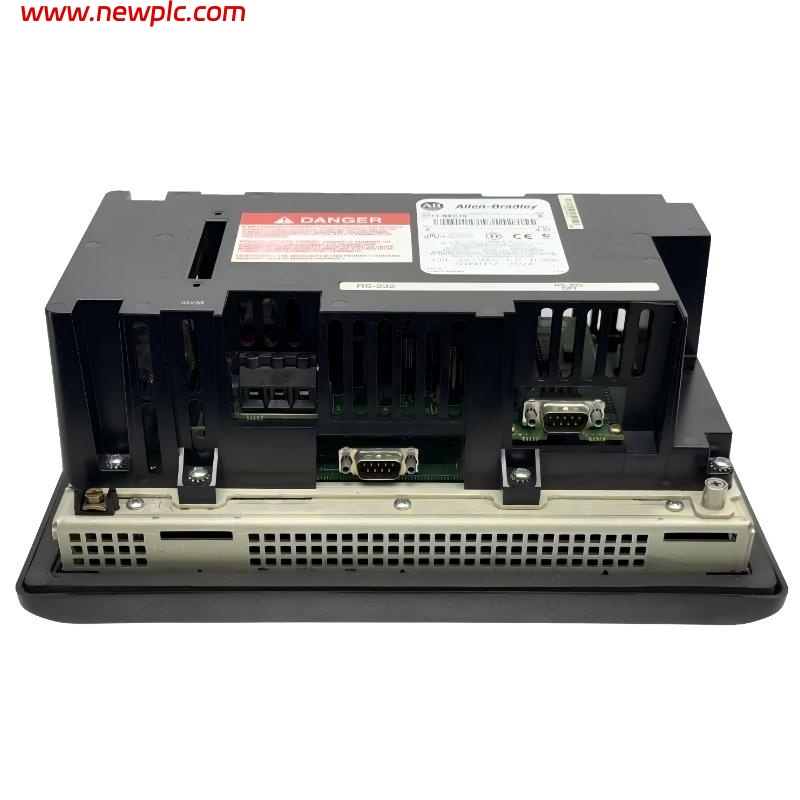

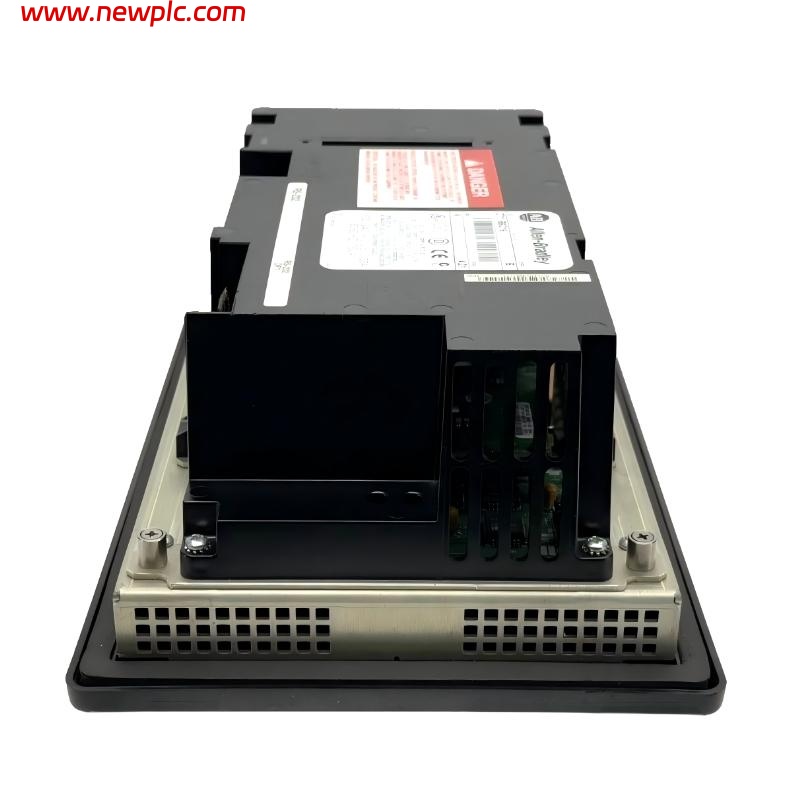

| Product Name | Allen-Bradley 2711-B6C16 |
| Product Series | PanelView 600 HMI |
| Product Type | Operator Interface Terminal (HMI) |
| Application | Industrial machine monitoring and control interface |
| Display Type | Color STN LCD |
| Display Size | 5.7 in |
| Resolution | 320 × 234 pixels |
| Input Type | Keypad + Touchscreen |
| Function Keys | Built-in programmable function keys |
| Input Voltage | 85–264 V AC, 50/60 Hz |
| Communication Ports | RS-232 (DF1), RS-232 printer/download |
| Memory | 240 KB flash / ~190 KB runtime |
| Programming Software | PanelBuilder 32 |
| Backlight | Field replaceable |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (L × W × H) | 263 mm × 172 mm × 58 mm |
| Weight | 1.8 kg |
| Mounting Type | Panel mount |
| Protection Rating | IP65 (front panel when properly installed) |
FAQ
FAQ
Q1. What is the 2711-B6C16 used for?
It is an HMI used for operator control and monitoring of industrial machines and automation systems.
Q2. What display does it use?
It uses a 5.7-inch color STN LCD display with 320 × 234 resolution.
Q3. What communication interfaces does it support?
It supports RS-232 (DF1 protocol) and RS-232 printer/download ports.
Q4. What is the input power requirement?
It operates on 85–264 V AC, 50/60 Hz.
Q5. What are its physical dimensions?
The dimensions are 263 mm × 172 mm × 58 mm.
Q6. What is the weight of the device?
The weight is approximately 1.8 kg.
Q7. What software is used to program it?
It is programmed using PanelBuilder 32 software.
Q8. Is the 2711-B6C16 still in production?
No, it is a legacy PanelView 600 series model and has been discontinued.
