Technical Specifications
| Parameter | Specification |
|---|---|

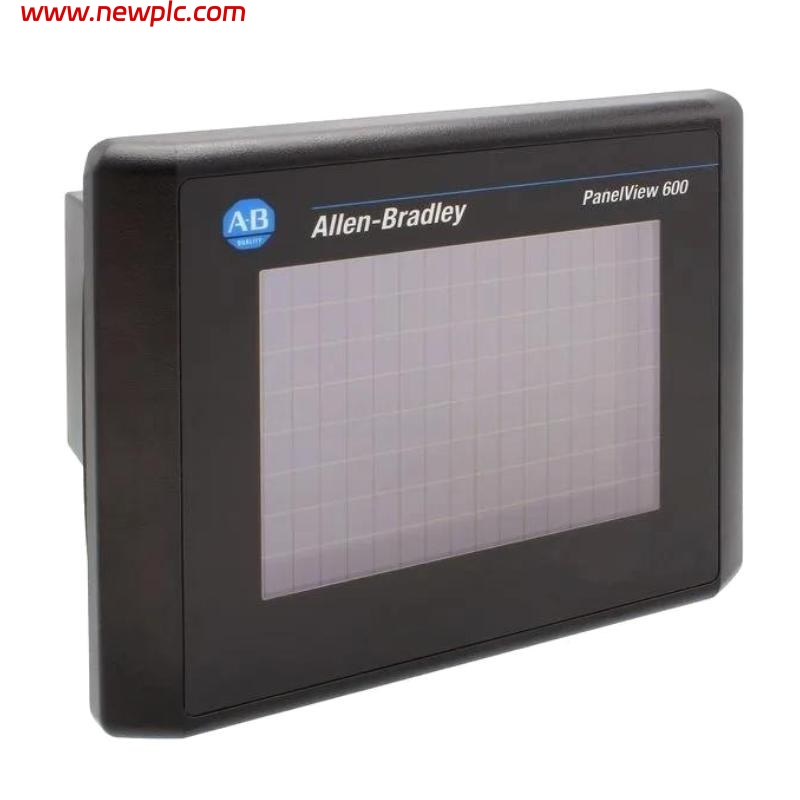

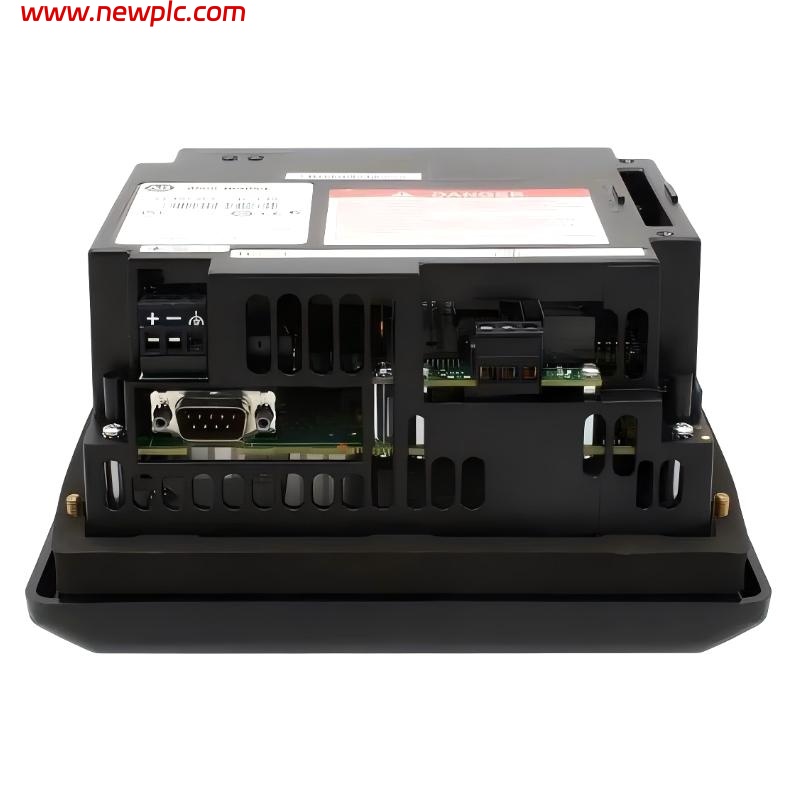

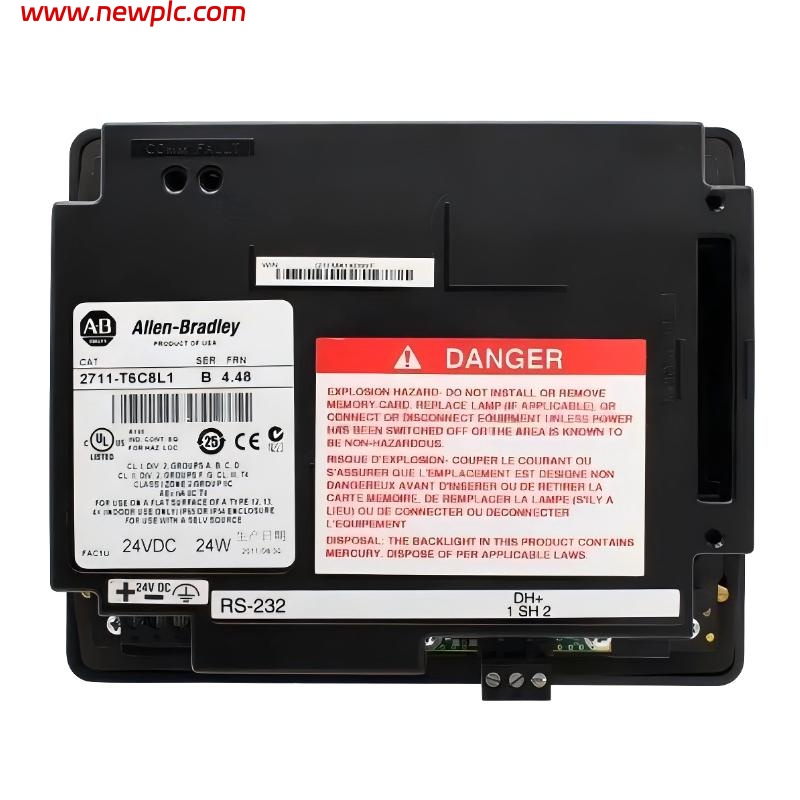

| Product Series | Allen-Bradley PanelView Standard |
| Model Number | 2711-T6C8L1 |
| Display Type | 5.5-inch color STN LCD (touchscreen) |
| Resolution | 320 × 240 pixels |
| Input Method | Touchscreen |
| Communication Ports | DH-485 |
| Power Supply | 85–264V AC |
| Memory | Integrated application memory |
| Operating System | Embedded firmware |
| Enclosure Rating | NEMA Type 12/13, IP54 (front panel) |
| Mounting Type | Panel mount |
| Dimensions | 145 × 195 × 80 mm (W × H × D) |
| Weight | Approx. 1.2 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
FAQ
FAQ
Q1. What is the primary use of the 2711-T6C8L1?
It is used as a human-machine interface (HMI) for monitoring and controlling industrial equipment.
Q2. What type of display does this model use?
It uses a 5.5-inch color STN touchscreen display.
Q3. What communication protocol is supported?
This model supports DH-485 communication.
Q4. Does it support Ethernet connectivity?
No, this model does not support Ethernet.
Q5. What power supply does it require?
It operates on 85–264V AC power.
Q6. Is it suitable for harsh industrial environments?
Yes, the front panel is rated NEMA 12/13 and IP54 for protection.
Q7. What kind of input method is available?
It uses a touchscreen for operator input.
Q8. Is this model part of the PanelView Plus series?
No, it belongs to the PanelView Standard series.
