Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PanelView Plus 6 1000 |

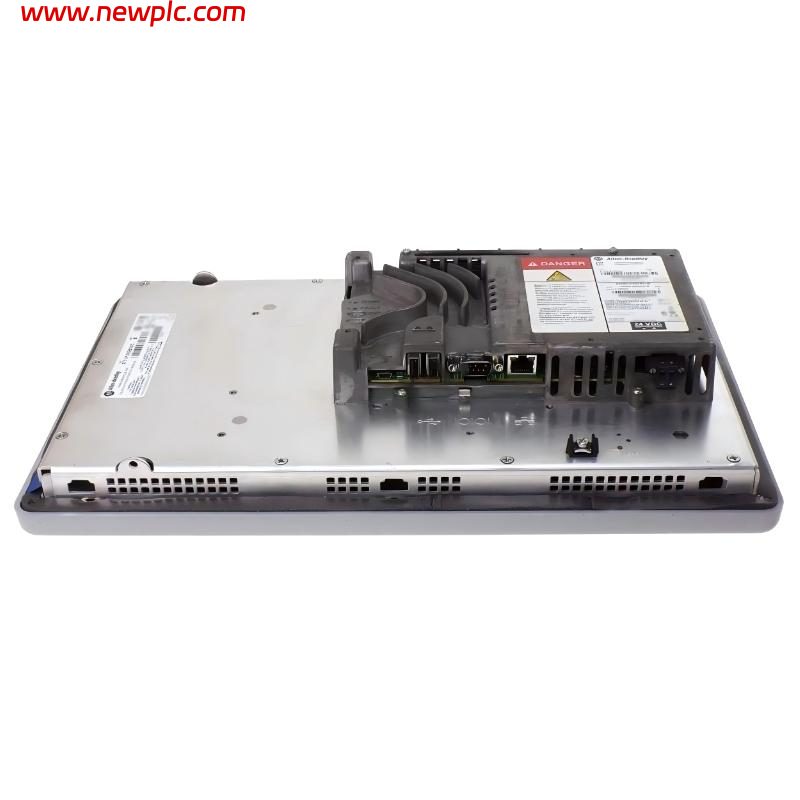

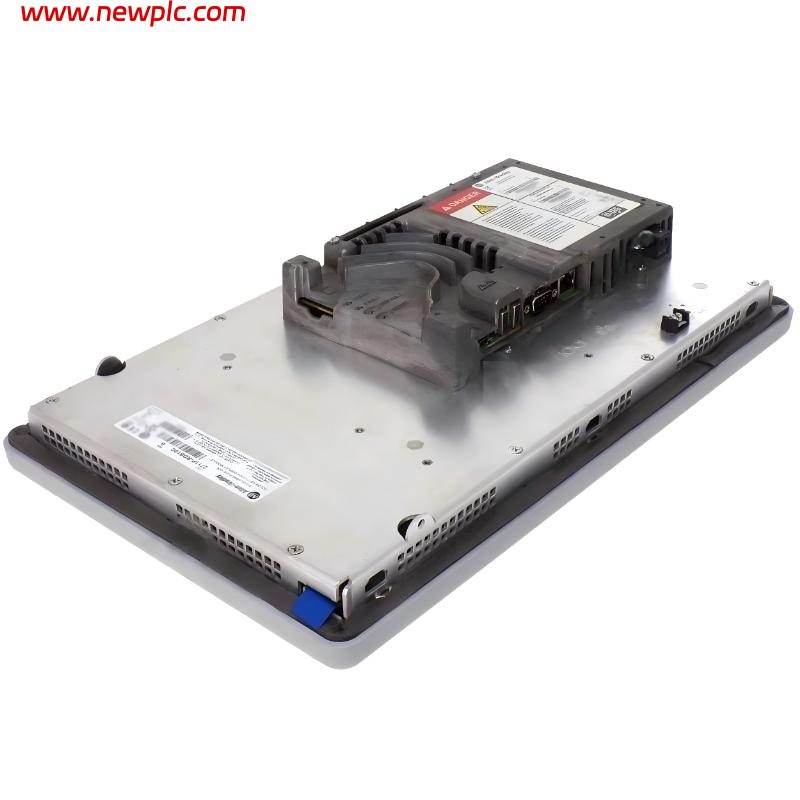

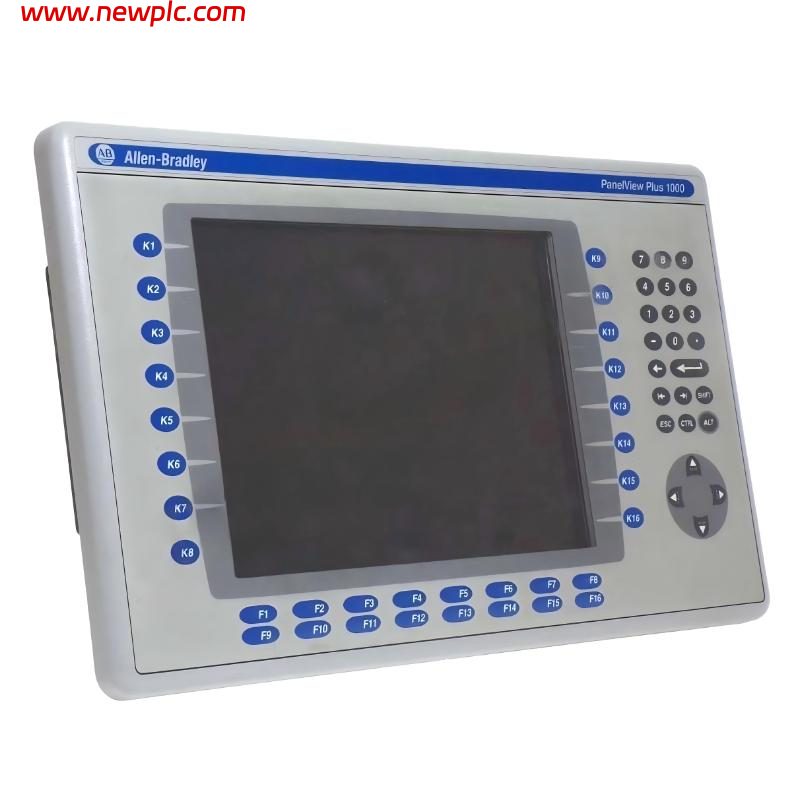

| Model Number | 2711P-K10C4A9 |
| Product Type | Operator Interface Terminal / HMI |
| Display Size | 10.4 in. |
| Display Type | Color Active Matrix TFT LCD |
| Display Resolution | 640 × 480 Pixels |
| Display Area | 211 × 158 mm |
| Display Colors | 18-Bit Color Graphics |
| Operator Interface | Keypad |
| Keypad Type | Stainless-Steel Membrane |
| Function Keys | 32 Programmable Keys (F1–F16 and K1–K16) |
| Communication Ports | Ethernet, RS-232, USB Host |
| Communication Protocol | EtherNet/IP |
| Ethernet Speed | 10/100 Mbps |
| USB Ports | 2 USB Host Ports |
| Power Supply | 100–240V AC |
| Input Frequency | 50/60 Hz |
| Power Consumption | 160 VA Maximum, 65 VA Typical |
| Internal Memory | 512 MB RAM / 512 MB Flash |
| User Memory | Approx. 79 MB Free User Memory |
| External Storage | Secure Digital (SD) Card Slot |
| Operating System | Windows CE 6.0 |
| Backlight Type | Replaceable CCFL Backlight |
| Backlight Life | Approx. 50,000 Hours |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA Type 12/13, 4X Indoor / IP54, IP65 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (H × W × D) | 248 × 399 × 55 mm |
| Weight | Approx. 2.8 kg / 6.17 lb |
| Software Compatibility | FactoryTalk View Machine Edition |
| Product Status | Discontinued / Obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711P-K10C4A9 used for?
A1: The 2711P-K10C4A9 is a PanelView Plus 6 1000 HMI terminal designed for industrial automation applications, including machine monitoring, operator control, and process visualization.
Q2: What type of operator interface does the 2711P-K10C4A9 use?
A2: This model uses a keypad-only interface with 32 programmable keys, including function, navigation, and numeric keys.
Q3: What display specifications does the terminal offer?
A3: The terminal features a 10.4-inch color TFT LCD display with a resolution of 640 × 480 pixels and 18-bit color graphics.
Q4: Which communication interfaces are available on the 2711P-K10C4A9?
A4: The unit supports EtherNet/IP communication and includes Ethernet, RS-232, and dual USB host ports for industrial connectivity.
Q5: What power input does the 2711P-K10C4A9 require?
A5: The terminal operates on 100–240V AC power with a 50/60 Hz input frequency range.
Q6: What software is used to configure this HMI terminal?
A6: The 2711P-K10C4A9 is configured using FactoryTalk View Machine Edition software from Rockwell Automation.
Q7: Is the 2711P-K10C4A9 still manufactured by Allen-Bradley?
A7: No. This model has been discontinued by Rockwell Automation, although refurbished and surplus units are still available through industrial automation suppliers.
Q8: What are the dimensions and weight of the 2711P-K10C4A9?
A8: The terminal measures approximately 248 × 399 × 55 mm and weighs about 2.8 kg (6.17 lb).
