Technical Specifications
| Item | Specification |
|---|---|

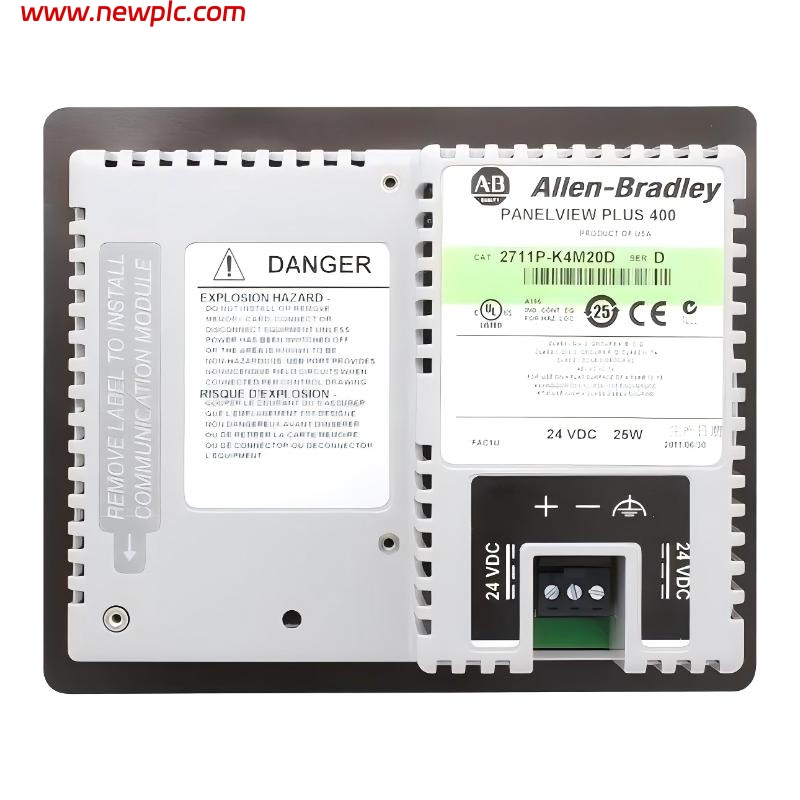

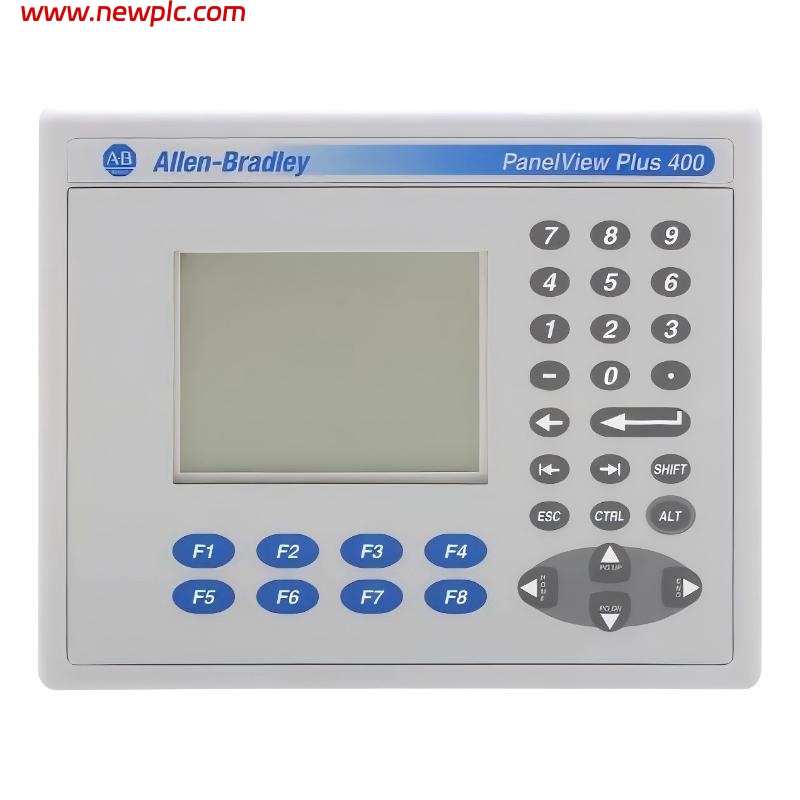

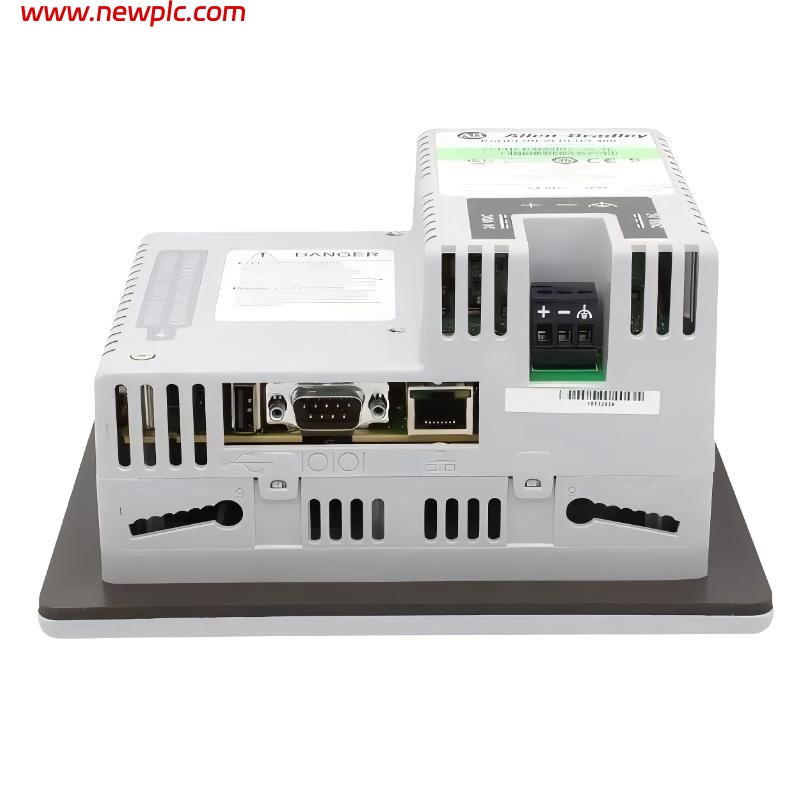

| Product Name | Allen-Bradley 2711P-K4M20D |
| Product Series | PanelView Plus 400 |
| Product Type | Operator Interface Terminal (HMI) |
| Application | Industrial automation HMI for machine monitoring and control |
| Display Type | Grayscale FSTN LCD |
| Display Size | 3.8 in |
| Resolution | 320 × 240 pixels |
| Input Type | Keypad |
| Key Layout | Numeric, navigation, function keys |
| Input Voltage | 18–30 V DC (24 V DC nominal) |
| Power Consumption | ~25 W max |
| Communication Ports | Ethernet, RS-232, USB host |
| Memory | 64 MB |
| Operating System | Windows CE-based |
| Software Platform | FactoryTalk View Machine Edition |
| Protection Rating | NEMA 4X / IP54–IP65 (front panel installed) |
| Backlight | LED |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (L × W × H) | 150 mm × 185 mm × 100 mm |
| Weight | 1.0 kg |
FAQ
FAQ
Q1. What is the 2711P-K4M20D used for?
It is an HMI panel used for operator control and monitoring in industrial automation systems.
Q2. What display does it use?
It uses a 3.8-inch grayscale LCD with 320 × 240 resolution.
Q3. What communication interfaces are available?
It supports Ethernet, RS-232, and USB host communication.
Q4. What is the power requirement?
It operates on 18–30 V DC, typically 24 V DC.
Q5. What are its exact physical dimensions?
The approximate dimensions are 150 mm × 185 mm × 100 mm.
Q6. What is the weight of the device?
The weight is about 1.0 kg.
Q7. What software is used for programming?
It is configured using FactoryTalk View Machine Edition.
Q8. Is the 2711P-K4M20D still in production?
No, it is a discontinued PanelView Plus 400 series model.
