Technical Specifications
| Parameter | Description |
|---|---|

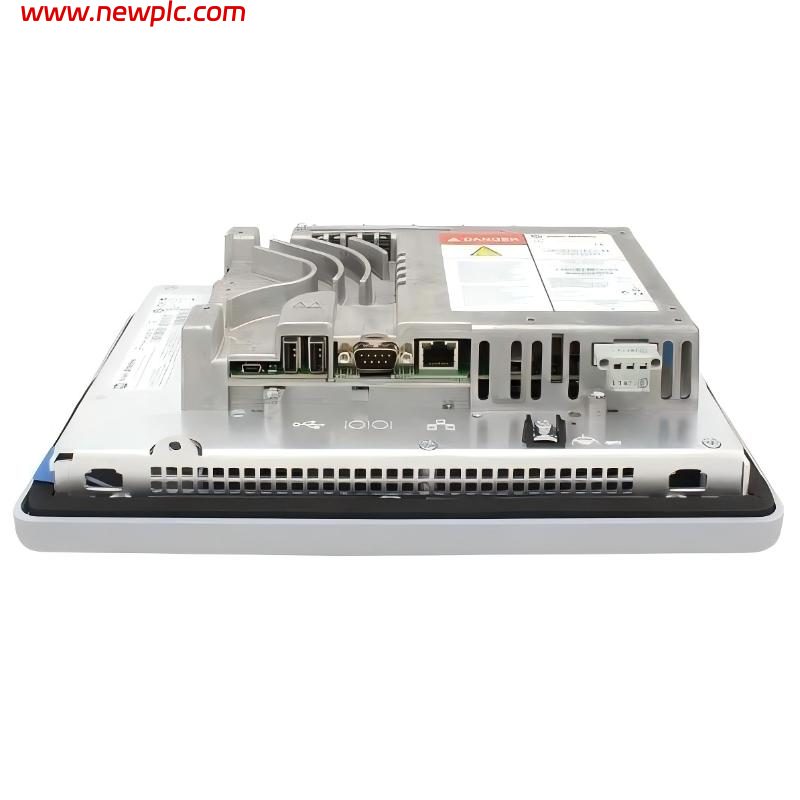

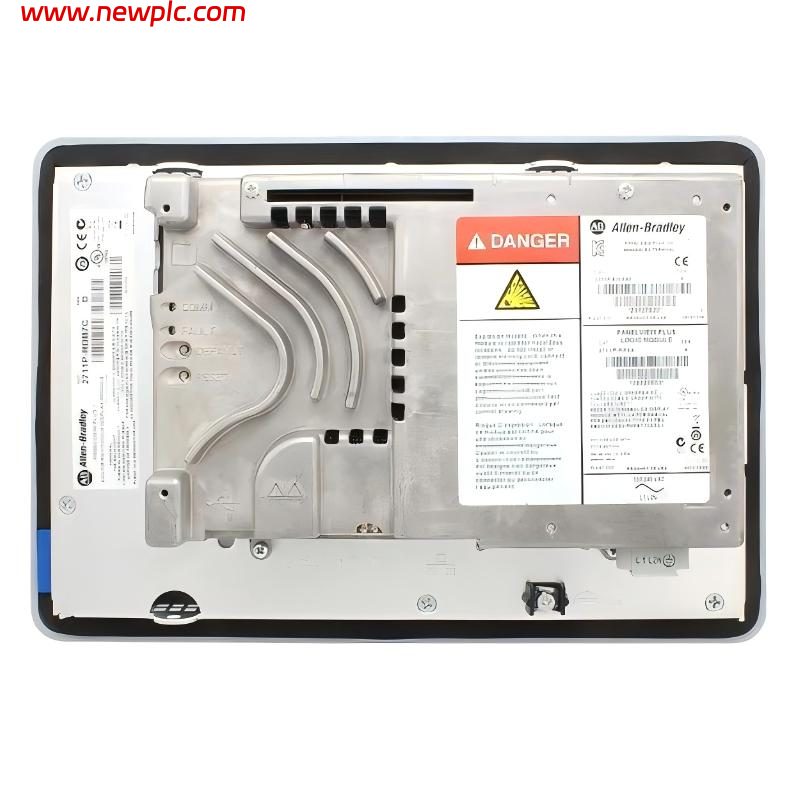

| Product Name | Allen-Bradley 2711P-RDB15C |
| Part Number | 2711P-RDB15C |
| Product Type | PanelView Plus 1500 Display Module (15-inch HMI Display Unit) |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | PanelView Plus / PanelView Plus 1500 |
| Function | Provides operator visualization interface for industrial control systems, displaying process data and enabling HMI interaction |
| Application | Industrial automation / PLC HMI systems / machine control / process monitoring |
| Display Type | 15-inch color TFT LCD (active matrix) |
| Resolution | 1024 × 768 (XGA) |
| Input Type | Touchscreen + keypad (depending on terminal configuration) |
| Backlight Type | CCFL (typical PanelView Plus generation) |
| Communication | Used with PanelView Plus logic modules (EtherNet/IP, serial, etc. depending on system) |
| Compatibility | PanelView Plus 1500 terminal systems (logic module required for full operation) |
| Power Supply | Supplied via PanelView Plus terminal system |
| Mounting Type | Front-panel integrated HMI display assembly |
| Protection Rating | IP65 front panel (typical installed enclosure condition) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5–95% RH non-condensing |
| Parameter | Description |
|---|---|
| Dimensions (W × H × D) | 469 × 330 × 65 mm |
| Weight | Approx. 4.6 kg |
FAQ
FAQ
Q1: What is 2711P-RDB15C used for?
A1: It is a 15-inch PanelView Plus HMI display module used to visualize and control industrial processes.
Q2: Is 2711P-RDB15C a complete HMI system?
A2: No, it is only the display module and must be used with a compatible PanelView Plus logic module.
Q3: What display size does it have?
A3: It has a 15-inch TFT LCD display.
Q4: What is the resolution of the screen?
A4: 1024 × 768 pixels (XGA resolution).
Q5: What type of input does it support?
A5: It supports touchscreen and keypad input depending on the terminal configuration.
Q6: What system is it compatible with?
A6: It is used in Allen-Bradley PanelView Plus 1500 systems.
Q7: What are its physical dimensions?
A7: 469 × 330 × 65 mm.
Q8: What is its weight?
A8: Approximately 4.6 kg.
