Technical Specifications
| Item | Specification |
|---|---|

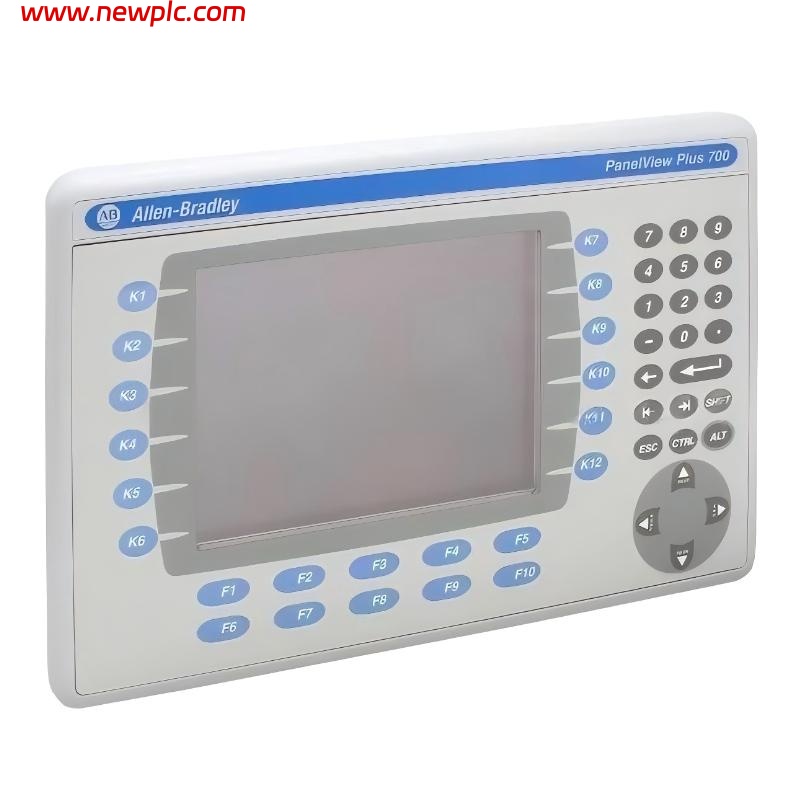

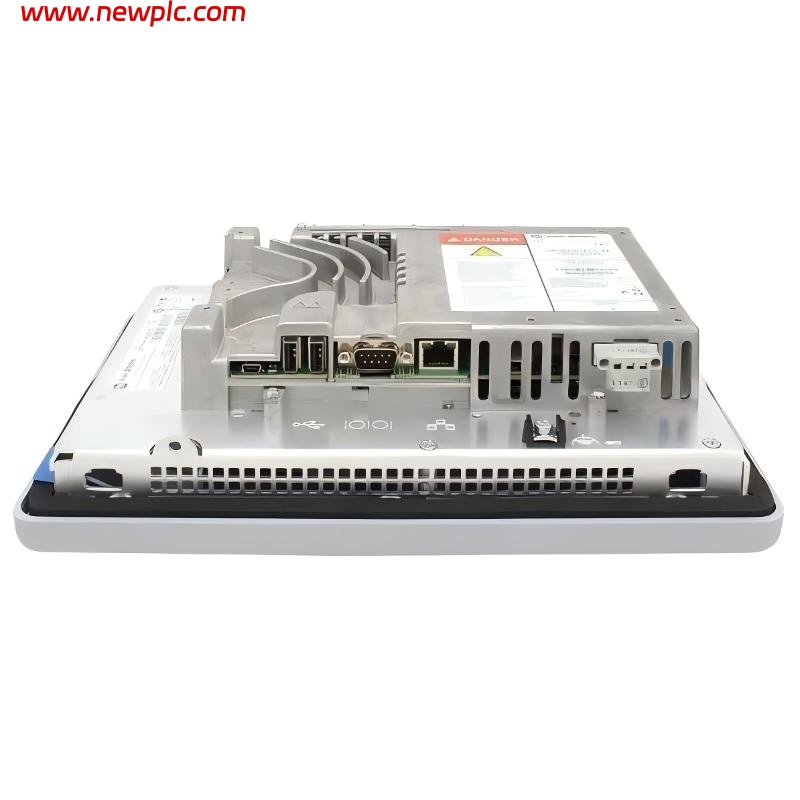

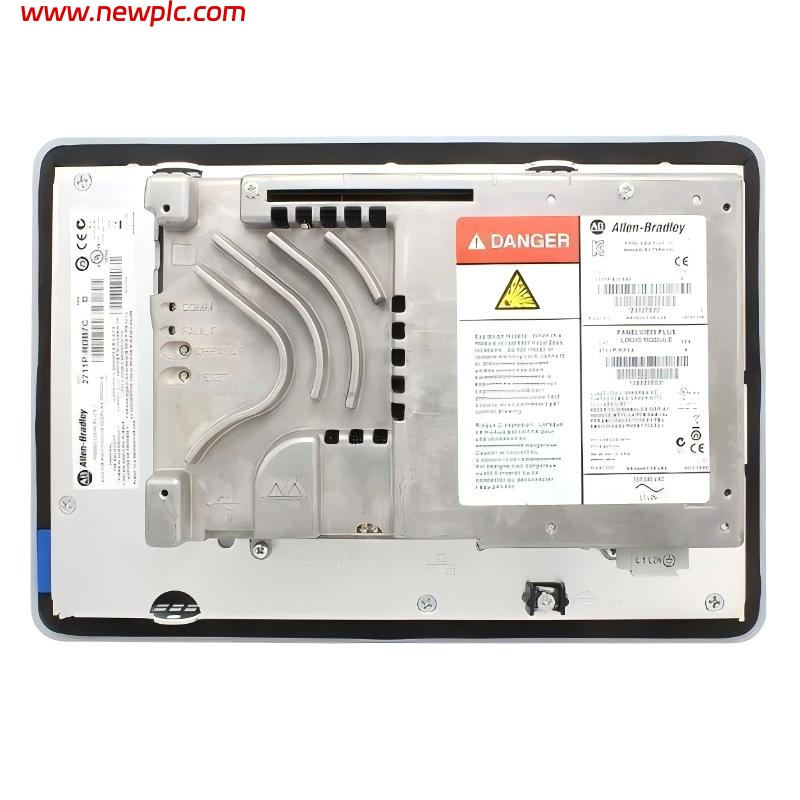

| Product Name | Allen-Bradley 2711P-RDB7C |
| Product Type | PanelView Plus 700 Display Module |
| Application | HMI display module for PanelView Plus systems (industrial automation) |
| Display Type | Color TFT LCD |
| Display Size | 6.5 in |
| Resolution | 640 × 480 pixels |
| Input Type | Touchscreen + keypad |
| Touch Technology | 8-wire analog resistive |
| Compatibility | PanelView Plus / PanelView Plus CE 700 series |
| Backlight | CCFL |
| Input Interface | Keypad and touch |
| Operating Environment | Industrial control systems |
| Protection Rating | NEMA 4X / IP65 (front panel installed) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (L × W × H) | 373 mm × 293 mm × 55 mm |
| Weight | 2.47 kg |
FAQ
FAQ
Q1. What is the 2711P-RDB7C used for?
It is a display module used in Allen-Bradley PanelView Plus 700 HMIs for operator interaction in industrial systems.
Q2. What display does it use?
It uses a 6.5-inch color TFT LCD with 640 × 480 resolution.
Q3. Does it support touch and keypad input?
Yes, it supports both touchscreen and keypad operation for industrial control tasks.
Q4. What systems is it compatible with?
It is designed for PanelView Plus and PanelView Plus CE 700 terminals.
Q5. What are its physical dimensions?
The approximate size is 373 mm × 293 mm × 55 mm.
Q6. What is the weight of the device?
It weighs about 2.47 kg.
Q7. Is the 2711P-RDB7C still available?
No, it has been discontinued by the manufacturer.
Q8. Can it be repaired instead of replaced?
Yes, repair services are commonly available, which can extend its operational life.
