Technical Specifications
| Item | Specification |
|---|---|

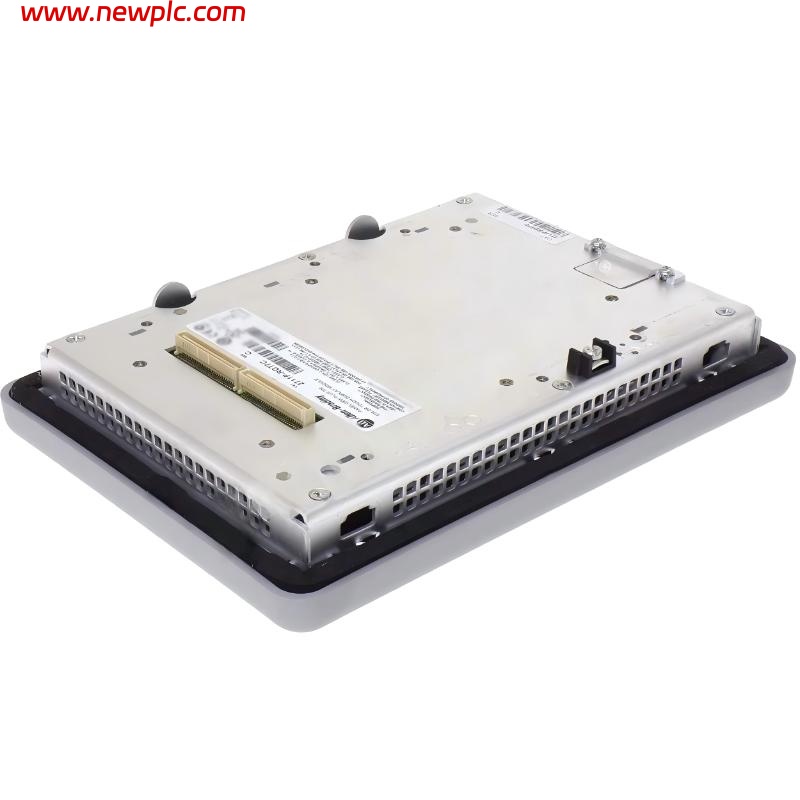

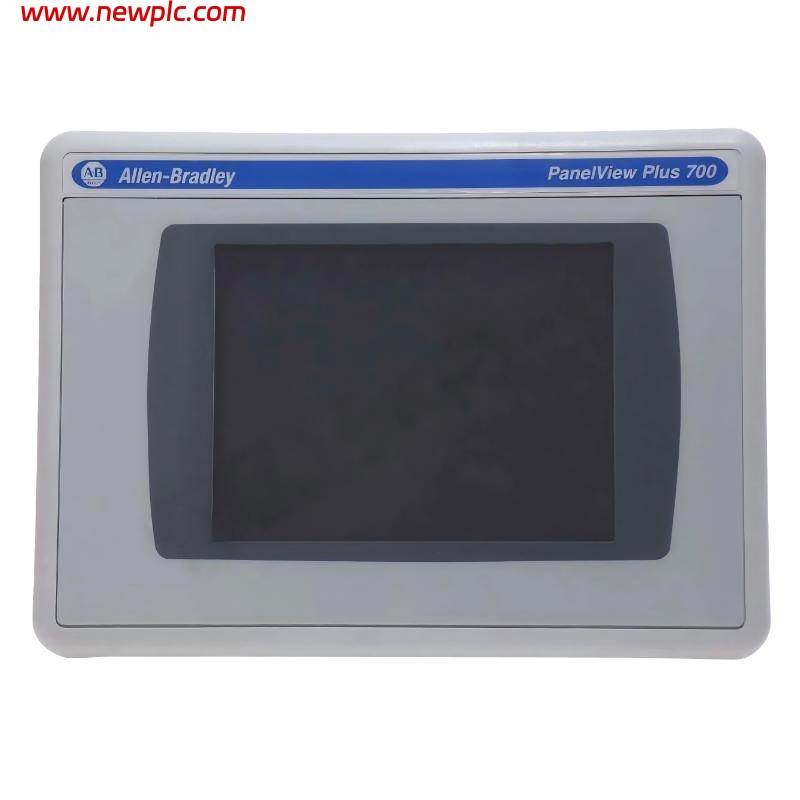

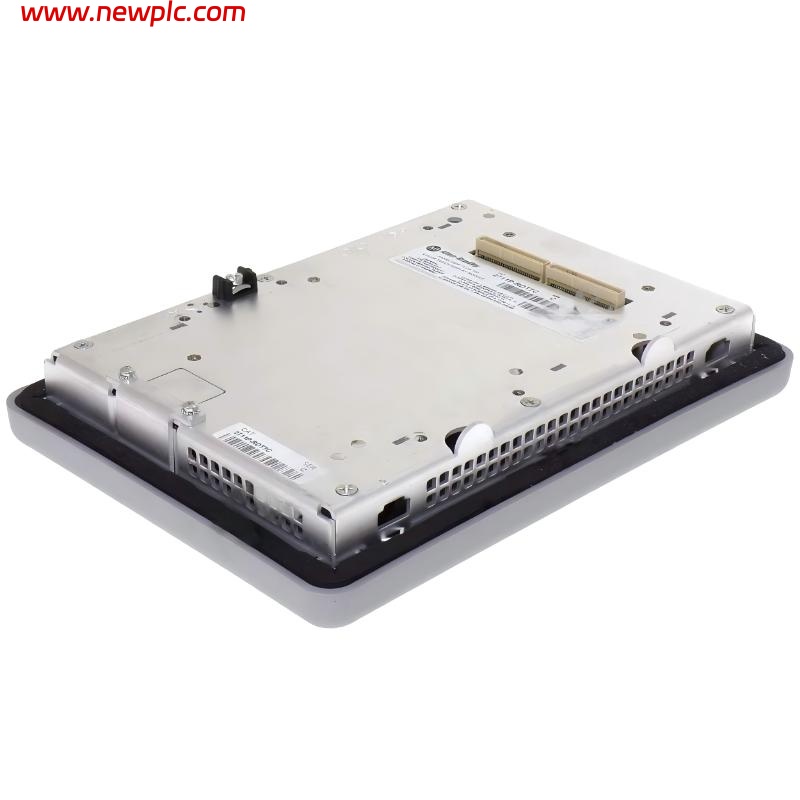

| Product Name | Allen-Bradley 2711P-RDT7C |
| Product Series | PanelView Plus 700 / PanelView Plus 6 700 |
| Product Type | HMI Display Module |
| Application | Industrial operator interface for automation systems (PLC monitoring and control) |
| Display Type | Color TFT LCD |
| Display Size | 6.5–7 in |
| Resolution | 640 × 480 (VGA) |
| Color Depth | 18-bit color |
| Input Type | Touchscreen |
| Touch Technology | 8-wire resistive touch |
| Backlight | CCFL |
| Backlight Life | ~50,000 hours |
| Communication | Requires logic module (Ethernet / RS-232 via system base) |
| Mounting Type | Panel mount |
| Protection Rating | NEMA 4X / IP65 (front panel installed) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (L × W × H) | 246 mm × 179 mm × 55 mm |
| Weight | 1.7 kg |
FAQ
FAQ
Q1. What is the 2711P-RDT7C used for?
It is a display module used in Allen-Bradley PanelView Plus 700 HMIs for industrial machine monitoring and control.
Q2. Does it include a controller inside?
No, it is only a display module and must be paired with a logic module to operate.
Q3. What is the screen size and resolution?
It has a 6.5–7 inch color display with 640 × 480 resolution.
Q4. What type of touch technology does it use?
It uses an 8-wire analog resistive touchscreen designed for industrial durability.
Q5. What are its exact dimensions?
The module measures approximately 246 mm × 179 mm × 55 mm.
Q6. What is the weight of the device?
The weight is about 1.7 kg.
Q7. Is it still in production?
No, it is a discontinued PanelView Plus 700 series component.
Q8. What systems is it compatible with?
It is compatible with PanelView Plus 700 and PanelView Plus 6 700 logic modules.
