Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PanelView Plus CE Logic Modules |

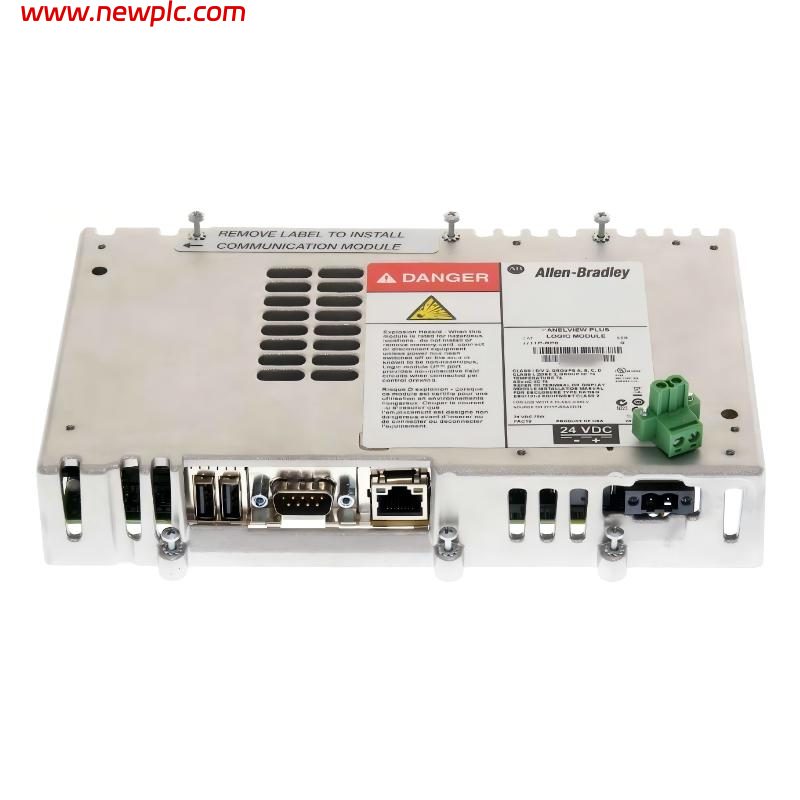

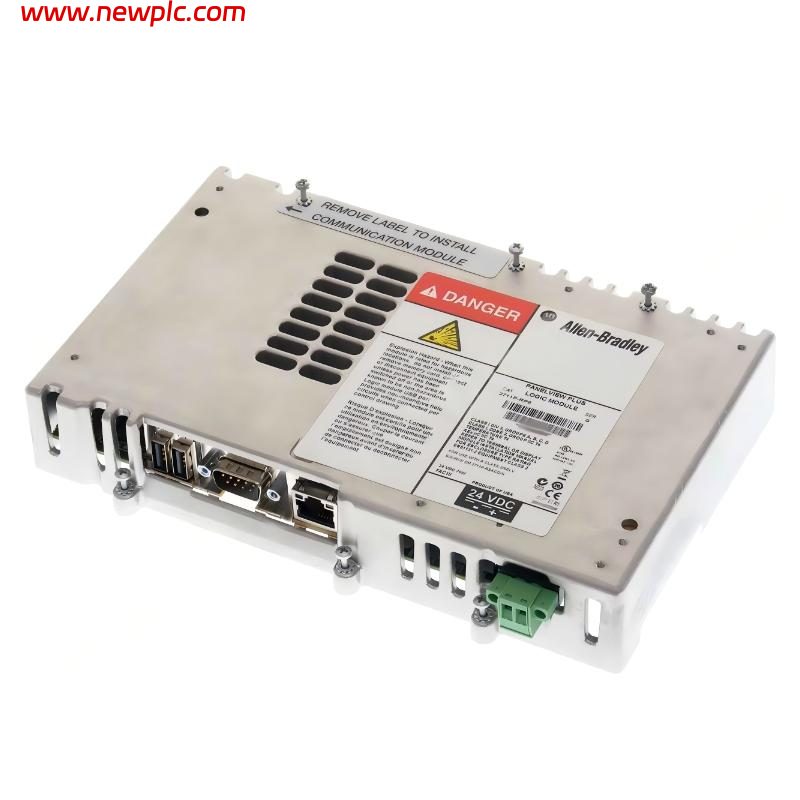

| Model Number | 2711P-RP6 |
| Product Type | Logic Module |
| Compatible Products | PanelView Plus CE 700–1500 Terminals |
| Application Type | HMI Logic Processing Module |
| Operating System | Windows CE |
| Memory Capacity | 128 MB Flash / 128 MB RAM |
| Input Power | 24V DC |
| Power Consumption | 70 W |
| Communication Ports | Ethernet Port, Serial Port, USB |
| USB Ports | 1 USB Device Port, 2 USB Host Ports |
| Storage Expansion | CompactFlash Card Slot |
| Communication Protocol | EtherNet/IP |
| Network Support | DF1 Ethernet/IP |
| Mounting Type | Internal Plug-In Module |
| Environmental Protection | IP65 Rated |
| Shock Resistance | IEC 60068-2-27 |
| Vibration Resistance | IEC 60068-2-6 |
| Operating Temperature | 0°C to 55°C |
| Compatibility Note | Not Compatible with PanelView Plus 6 Terminals |
| Certification | Marine Certified |
| Dimensions (Approx.) | 203 × 152 × 51 mm |
| Weight | Approx. 0.79 kg / 1.75 lb |
| Product Status | Discontinued / Obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711P-RP6 used for?
A1: The 2711P-RP6 is a logic module designed for PanelView Plus CE terminals, providing processing capability, memory, and communication functions for industrial HMI applications.
Q2: Which PanelView terminals are compatible with the 2711P-RP6?
A2: The module is compatible with PanelView Plus CE 700 through 1500 terminals but is not compatible with PanelView Plus 6 models.
Q3: What memory configuration does the 2711P-RP6 provide?
A3: The module includes 128 MB of flash memory and 128 MB of RAM for Windows CE applications and HMI runtime operations.
Q4: What communication interfaces are available on the 2711P-RP6?
A4: The module supports Ethernet, serial communication, USB connectivity, and CompactFlash storage expansion for industrial integration and data management.
Q5: What operating system does the 2711P-RP6 use?
A5: The module runs on the Windows CE operating system, supporting multi-application industrial HMI environments.
Q6: Is the 2711P-RP6 suitable for harsh industrial environments?
A6: Yes. The module features IP65 environmental protection, marine certification, and IEC-rated shock and vibration resistance for demanding industrial conditions.
Q7: Is the 2711P-RP6 still manufactured by Allen-Bradley?
A7: No. The 2711P-RP6 has been discontinued, although refurbished and surplus units are still available through industrial automation suppliers.
Q8: What are the dimensions and weight of the 2711P-RP6?
A8: The module measures approximately 203 × 152 × 51 mm and weighs about 0.79 kg (1.75 lb).
