Technical Specifications
| Item | Specification |
|---|---|

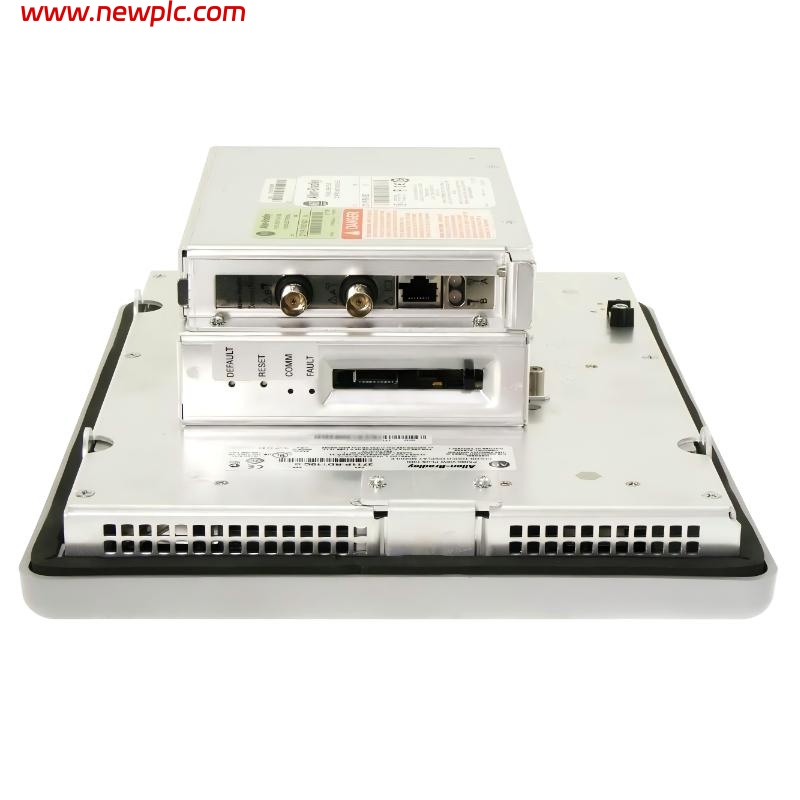

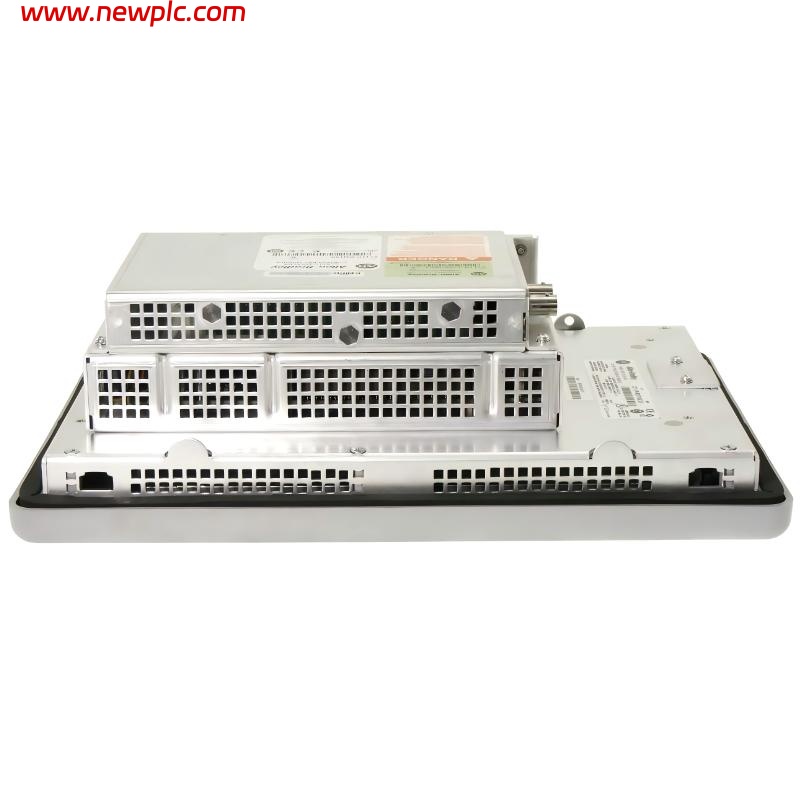

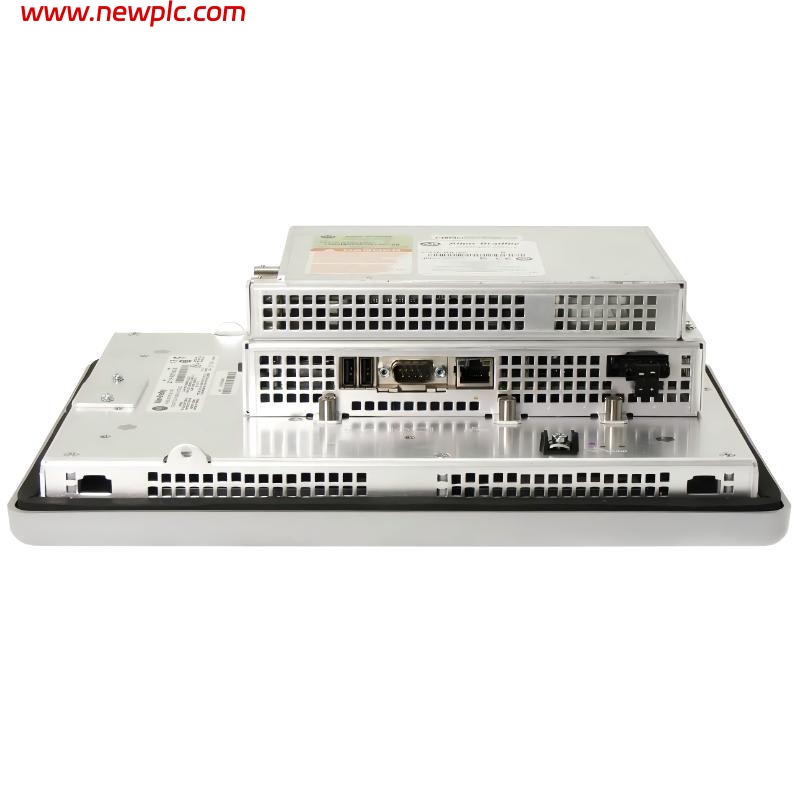

| Product Name | Allen-Bradley 2711P-T10C22D9P |
| Product Series | PanelView Plus 7 Performance |
| Product Type | HMI Terminal (Operator Interface) |
| Application | Industrial automation visualization and machine control |
| Display Type | Color TFT LCD |
| Display Size | 10.4 in |
| Resolution | 800 × 600 (SVGA) |
| Input Type | Touchscreen |
| Touch Technology | Resistive touch |
| Input Voltage | 18–30 V DC (24 V DC nominal) |
| Communication Ports | 2 × Ethernet (DLR support), USB, serial (model-dependent) |
| Software Platform | FactoryTalk View Machine Edition |
| Operating System | Windows CE-based embedded system |
| Mounting Type | Panel mount |
| Protection Rating | IP66 / NEMA 4X (front panel) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Front Dimensions (W × H) | 297 mm × 252 mm |
| Cutout Depth | 69.6 mm |
| Weight | ~2.28 kg |
FAQ
FAQ
Q1. What is the 2711P-T10C22D9P used for?
It is a PanelView Plus 7 Performance HMI used for industrial machine monitoring, control, and visualization.
Q2. What is the screen size and resolution?
It features a 10.4-inch display with 800 × 600 SVGA resolution.
Q3. Does it support touch input?
Yes, it uses an industrial resistive touchscreen.
Q4. What is the power supply requirement?
It operates on 18–30 V DC, typically 24 V DC.
Q5. What communication interfaces are available?
It supports dual Ethernet ports (including DLR), USB, and serial communication depending on configuration.
Q6. What are its physical dimensions?
The front panel dimensions are approximately 297 mm × 252 mm with a 69.6 mm depth.
Q7. What protection rating does it have?
It is rated IP66 and NEMA 4X for harsh industrial environments.
Q8. Is this model still in production?
Yes, it belongs to the PanelView Plus 7 Performance series, which is still part of Rockwell’s current HMI lineup (availability may vary by configuration).
