Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PanelView Plus 6 1500 |

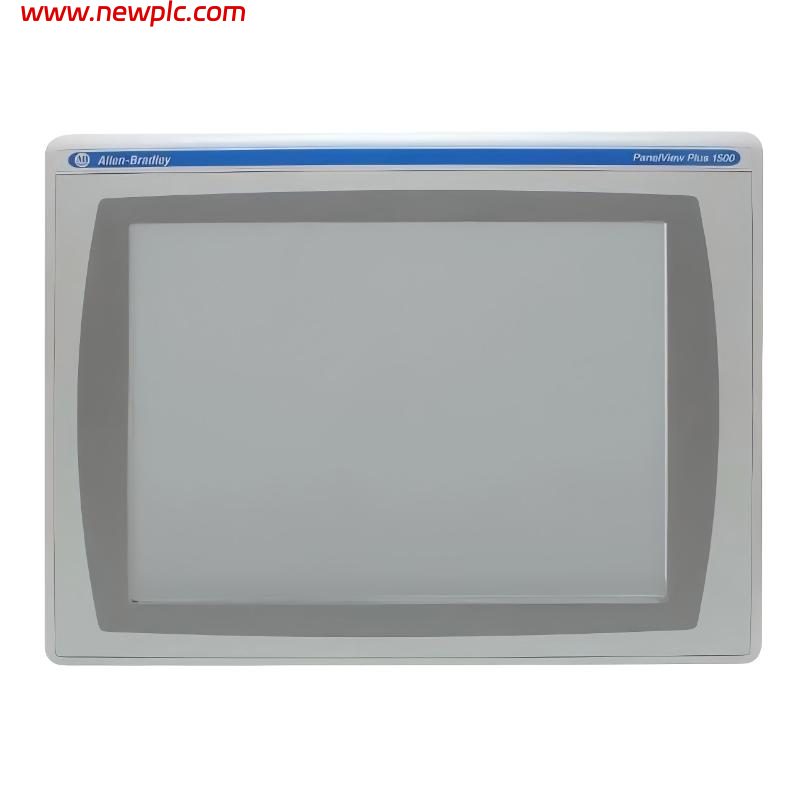

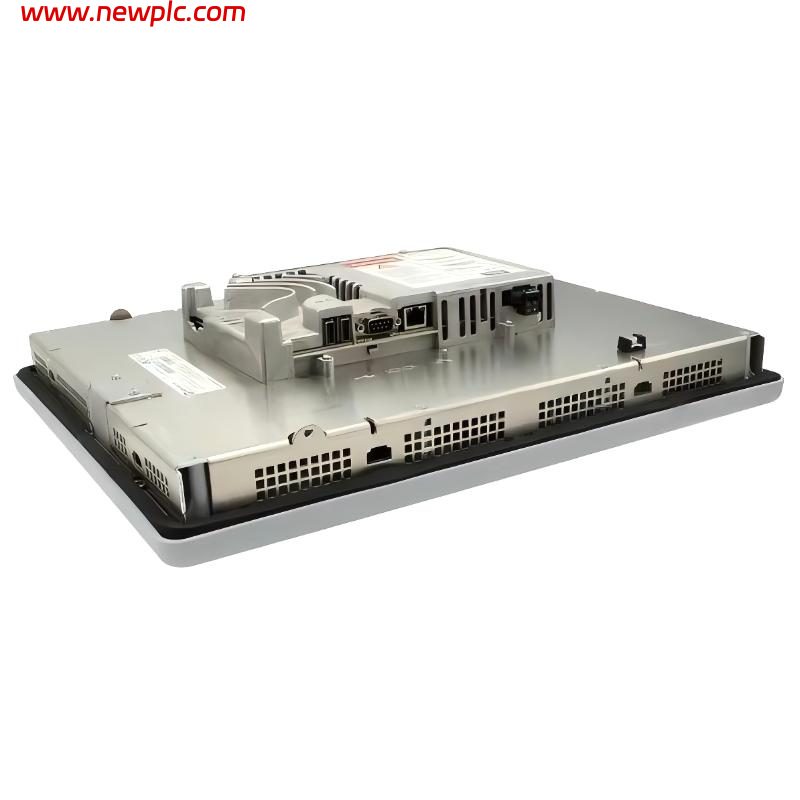

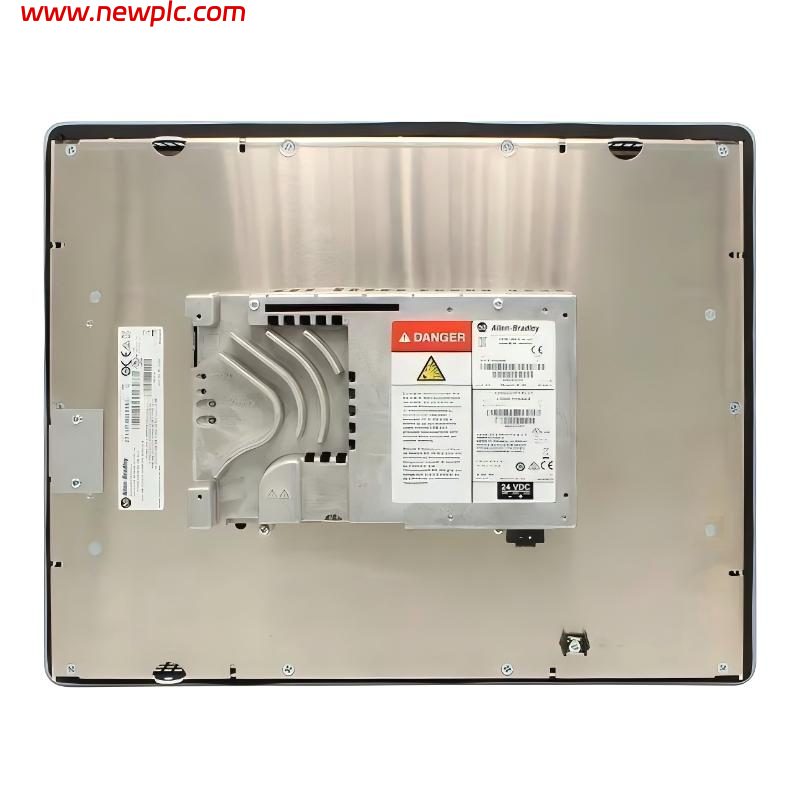

| Model Number | 2711P-T15C4D8 |
| Product Type | Operator Interface Terminal / HMI |
| Display Size | 15 in. |
| Display Type | Color Active Matrix TFT LCD |
| Display Resolution | 1024 × 768 Pixels |
| Display Area | 304 × 228 mm |
| Display Colors | 18-Bit Color Graphics |
| Operator Interface | Touchscreen |
| Touchscreen Type | 8-Wire Analog Resistive |
| Communication Ports | Ethernet, RS-232, USB Host |
| Communication Protocol | EtherNet/IP |
| Ethernet Speed | 10/100 Mbps |
| USB Ports | 2 USB Host Ports |
| Power Supply | 18–32V DC |
| Nominal Input Voltage | 24V DC |
| Power Consumption | 70 W Maximum |
| Internal Memory | 512 MB RAM / 512 MB Flash |
| User Memory | Approx. 79 MB Free User Memory |
| External Storage | Secure Digital (SD) Card Slot |
| Operating System | Windows CE 6.0 |
| Backlight Type | Field-Replaceable CCFL |
| Backlight Life | Approx. 50,000 Hours |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA Type 12/13, 4X Indoor, IP54, IP65 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Humidity | 5–95% Non-Condensing |
| Vibration Resistance | IEC 60068-2-6 |
| Shock Resistance | 15 G Operating |
| Dimensions (H × W × D) | 330 × 416 × 65 mm |
| Weight | Approx. 4.2 kg / 9.2 lb |
| Software Compatibility | FactoryTalk View Machine Edition v6.0 or Later |
| Compatible Logic Module | 2711P-RP8D |
| Product Status | Discontinued / Obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711P-T15C4D8 used for?
A1: The 2711P-T15C4D8 is a PanelView Plus 6 1500 HMI terminal used for industrial machine control, process monitoring, and operator interface applications.
Q2: What display specifications does the 2711P-T15C4D8 provide?
A2: The terminal features a 15-inch color TFT LCD display with 1024 × 768 resolution and 18-bit color graphics for detailed industrial visualization.
Q3: Does the 2711P-T15C4D8 support touchscreen operation?
A3: Yes. The unit uses an 8-wire analog resistive touchscreen designed for industrial environments and frequent operator interaction.
Q4: Which communication interfaces are available on the 2711P-T15C4D8?
A4: The terminal includes Ethernet, RS-232, and two USB host ports and supports EtherNet/IP communication.
Q5: What operating system does the 2711P-T15C4D8 use?
A5: The HMI terminal operates on Windows CE 6.0 and supports FactoryTalk View Machine Edition software.
Q6: Can the 2711P-T15C4D8 use SD cards for storage expansion?
A6: Yes. The unit includes a Secure Digital (SD) card slot for firmware updates, file transfer, and data logging.
Q7: Is the 2711P-T15C4D8 still manufactured by Allen-Bradley?
A7: No. The 2711P-T15C4D8 has been discontinued by Rockwell Automation, although refurbished and surplus units are still available through industrial suppliers.
Q8: What are the dimensions and weight of the 2711P-T15C4D8?
A8: The terminal measures approximately 330 × 416 × 65 mm and weighs about 4.2 kg (9.2 lb).
