Technical Specifications
| Item | Specification |
|---|---|

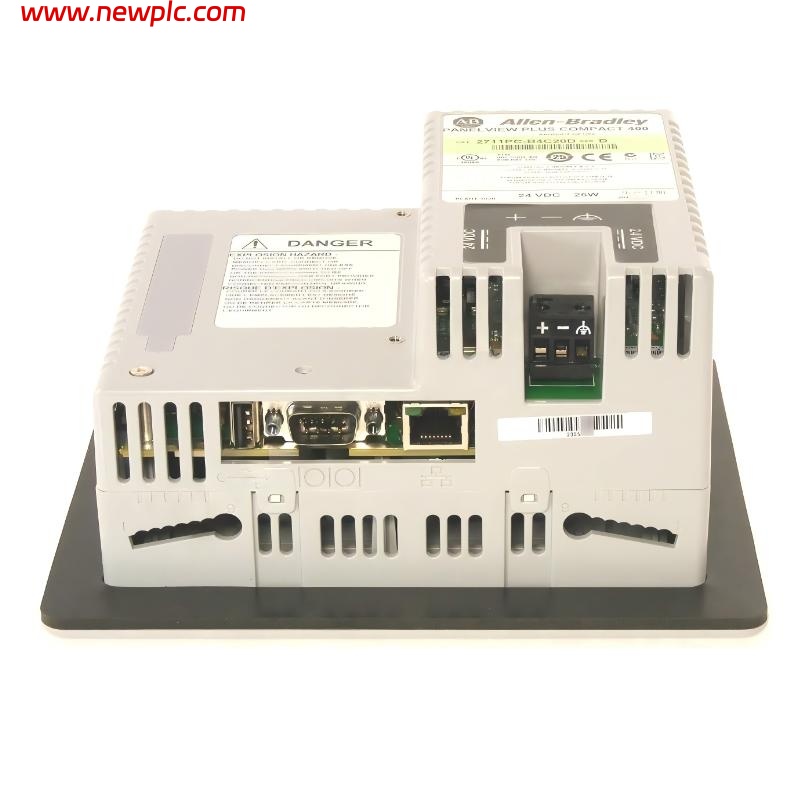

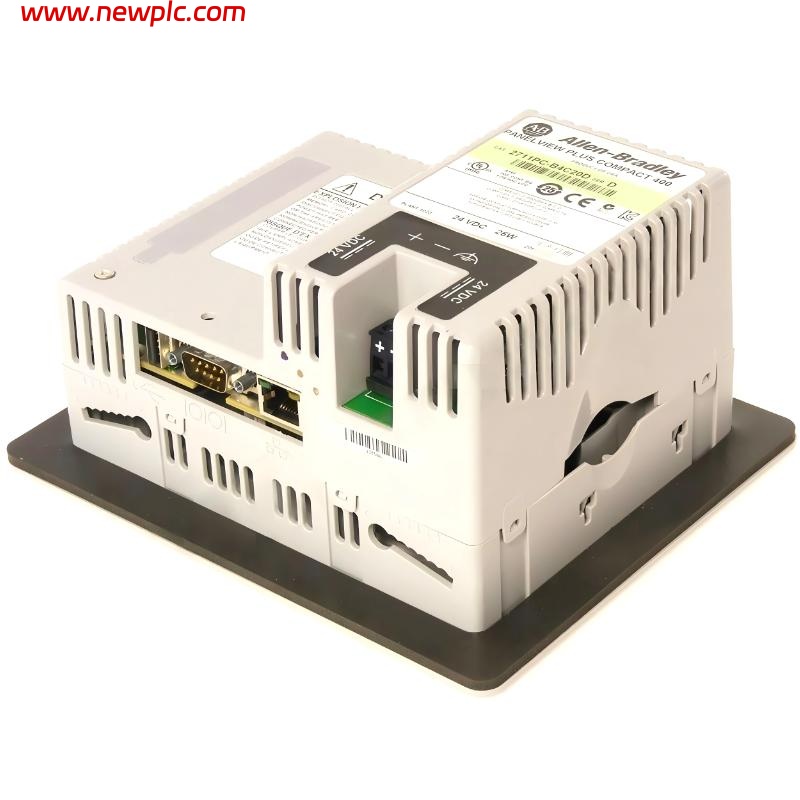

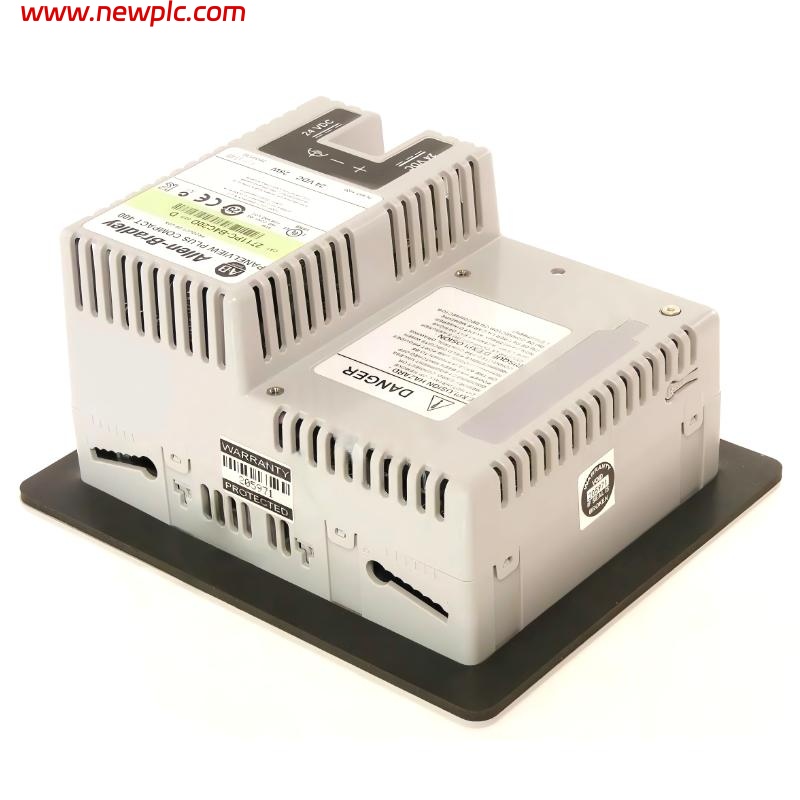

| Product Name | Allen-Bradley 2711PC-B4C20D |
| Product Series | PanelView Plus 6 Compact (PV Plus 6 Compact) |
| Product Type | Operator Interface Terminal (HMI) |
| Application | Compact industrial HMI for PLC monitoring and control |
| Display Type | Color TFT LCD |
| Display Size | 3.5 in |
| Resolution | 320 × 240 pixels |
| Input Type | Touchscreen + keypad |
| Touch Technology | 4-wire resistive touch |
| Input Voltage | 18–30 V DC (24 V DC nominal) |
| Communication Ports | Ethernet (10/100 Mbps), RS-232 |
| USB Ports | 1 × USB host / 1 × USB device |
| Memory | 256 MB RAM / 512 MB non-volatile memory |
| Operating System | Windows CE 6.0 |
| Software Platform | FactoryTalk View Machine Edition |
| Protection Rating | NEMA 4X / IP66 (front panel installed) |
| Mounting Type | Panel mount |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (L × W × H) | 152 mm × 185 mm × 90 mm |
| Weight | 0.68 kg |
FAQ
FAQ
Q1. What is the 2711PC-B4C20D used for?
It is a compact PanelView Plus 6 HMI used for machine-level monitoring and control in industrial automation systems.
Q2. What display does it use?
It uses a 3.5-inch color TFT LCD with 320 × 240 resolution.
Q3. Does it support both touchscreen and keypad input?
Yes, it supports a resistive touchscreen along with a keypad interface.
Q4. What communication interfaces are available?
It supports Ethernet (10/100 Mbps) and RS-232 communication.
Q5. What operating system does it run?
It runs Windows CE 6.0 embedded OS.
Q6. What are its exact physical dimensions?
The shipping dimensions are approximately 152 mm × 185 mm × 90 mm.
Q7. What is the weight of the device?
The weight is about 0.68 kg.
Q8. Is the 2711PC-B4C20D still in production?
It is a legacy PanelView Plus 6 Compact model and is discontinued.
