Technical Specifications
| Parameter | Specification |
|---|---|

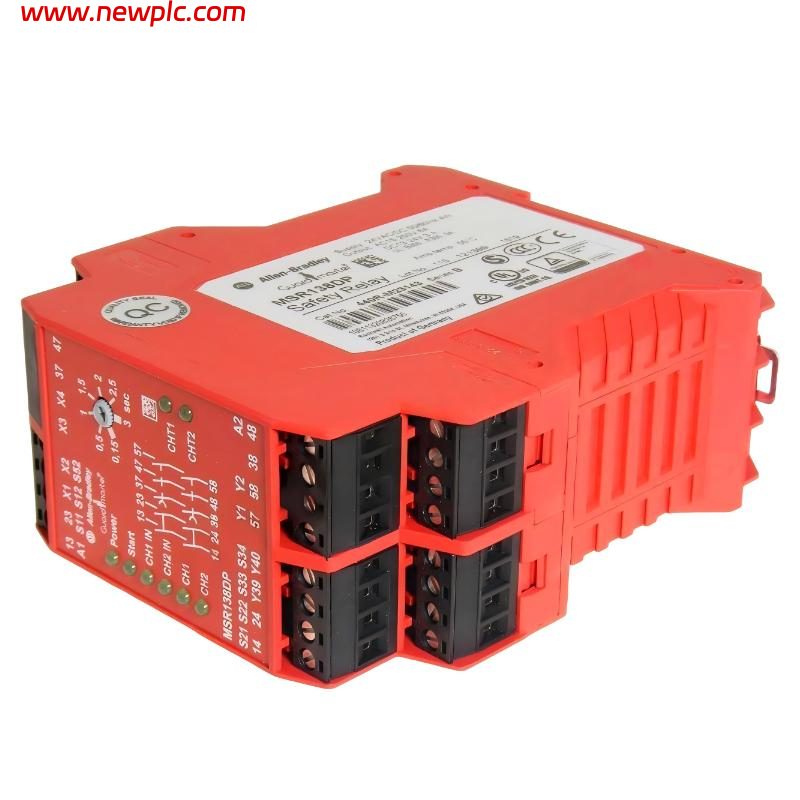

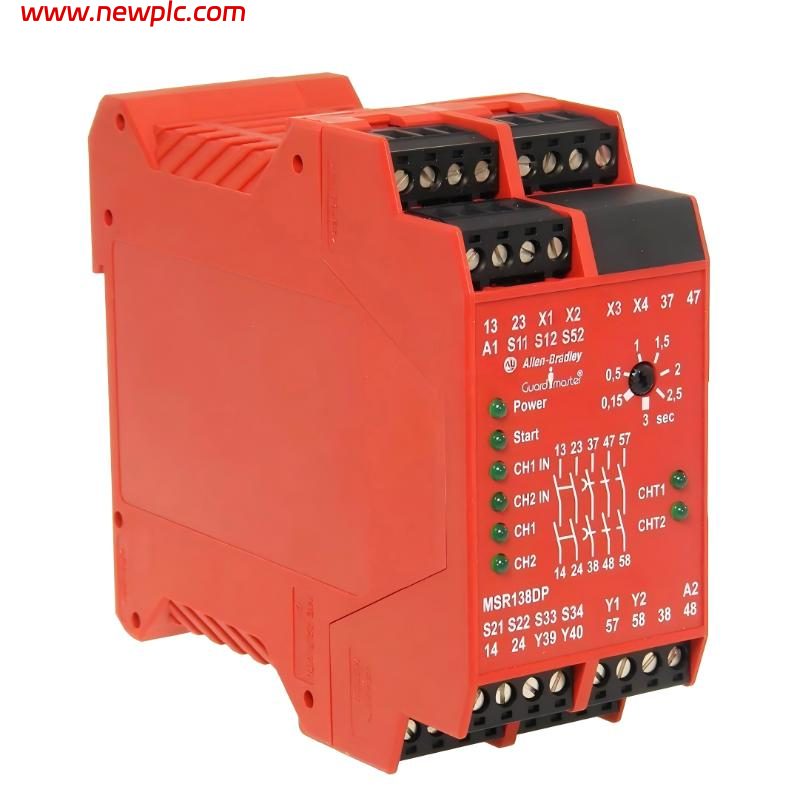

| Product Name | Allen-Bradley Guardmaster MSR138DP Safety Relay |
| Model Number | 440R-M23143 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Guardmaster MSR138DP |
| Product Type | Safety Relay with Delayed Outputs |
| Safety Outputs | 2 N.O. Instantaneous + 3 N.O. Delayed Outputs |
| Input Configuration | 1 or 2 N.C. Channels + Light Curtain Input |
| Reset Type | Automatic / Manual Monitored |
| Supply Voltage | 24V AC/DC |
| Operating Voltage Range | 20.4–26.4V |
| Power Consumption | Approx. 4 W |
| Switching Capacity | 5 A at 250V AC |
| Time Delay Range | 0.15–3 Seconds |
| Response Time | Approx. 15 ms |
| Recovery Time | Approx. 100 ms |

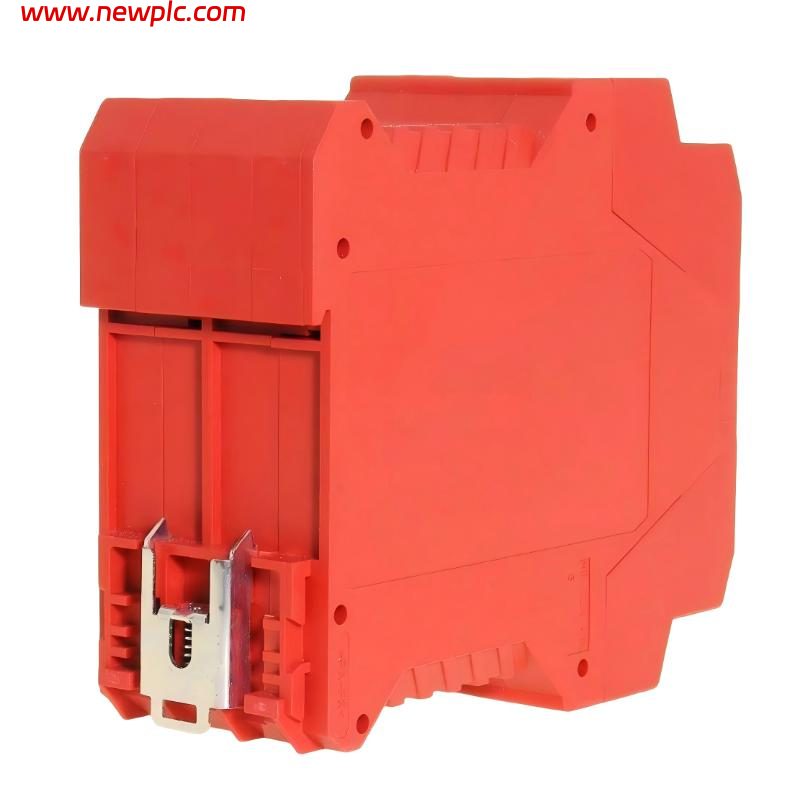

| Mounting Type | 35 mm DIN Rail Mount |
| Terminal Type | Removable Screw Terminals |
| Protection Rating | IP20 / IP40 (NEMA 1 Enclosure) |
| Safety Rating | SIL 3, PLe, Category 4 |
| Operating Temperature | -5°C to 55°C |
| Relative Humidity | Up to 90% Non-Condensing |
| Dimensions | 99 × 45 × 114.5 mm |
| Weight | Approx. 0.35 kg |
| Application | Emergency Stop, Safety Gate, and Light Curtain Monitoring |
FAQ
FAQ
Q1: What is the Allen-Bradley 440R-M23143 used for?
The 440R-M23143 is a Guardmaster MSR138DP safety relay used for monitoring emergency-stop circuits, safety gates, light curtains, and other industrial safety devices.
Q2: What type of outputs does the 440R-M23143 provide?
This safety relay includes 2 instantaneous normally open (N.O.) safety outputs and 3 delayed normally open (N.O.) outputs.
Q3: What power supply does the 440R-M23143 require?
The relay operates on a 24V AC/DC power supply with an operating voltage range of approximately 20.4–26.4V.
Q4: What is the delay time range of the 440R-M23143?
The delayed outputs can be adjusted from 0.15 seconds up to 3 seconds depending on the application requirements.
Q5: What safety standards does the 440R-M23143 support?
The relay supports SIL 3, Performance Level e (PLe), and Category 4 safety standards for industrial machine protection.
Q6: What applications commonly use the 440R-M23143?
It is commonly used for monitoring E-stop circuits, safety doors, proximity switches, tactile sensors, and light curtain systems in industrial automation environments.
Q7: What are the dimensions and weight of the 440R-M23143?
The approximate dimensions are 99 × 45 × 114.5 mm, and the unit weighs about 0.35 kg.
Q8: Is the 440R-M23143 suitable for industrial environments?
Yes, the relay is designed for industrial safety applications and supports DIN rail mounting with IP20/IP40 enclosure protection ratings
