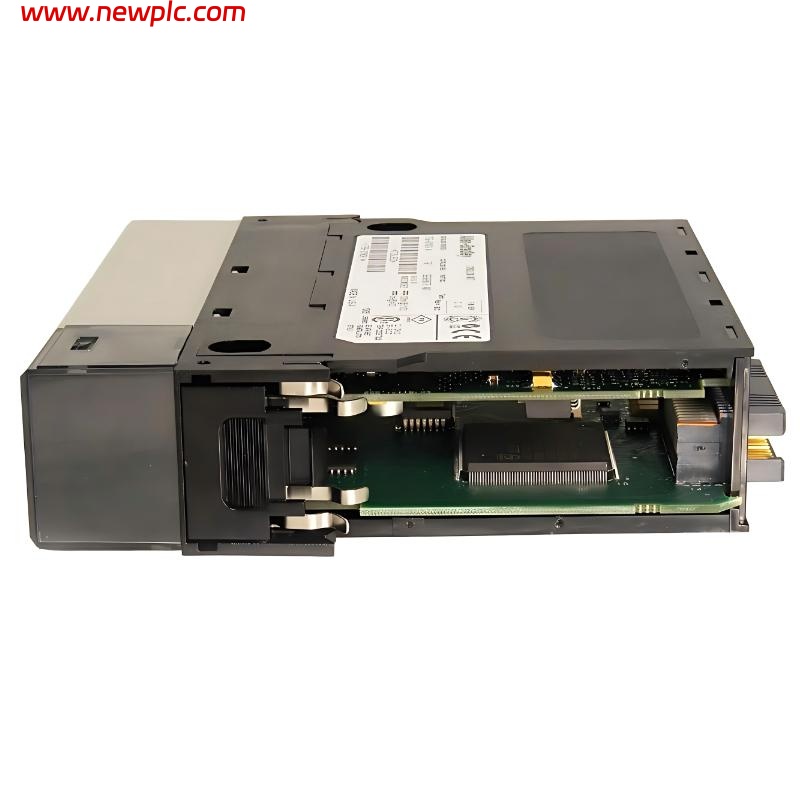

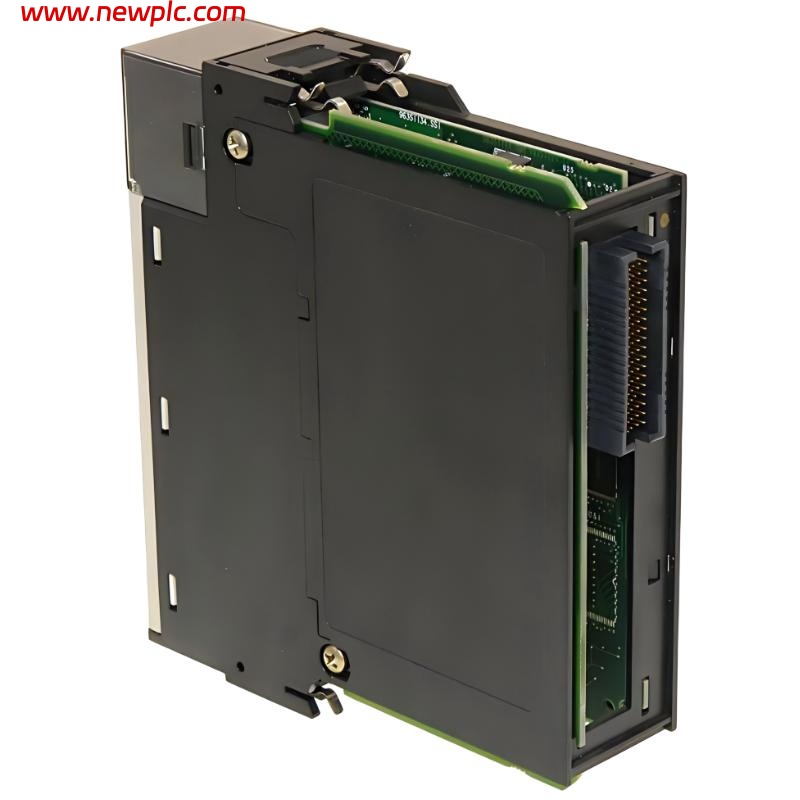

Technical Specifications

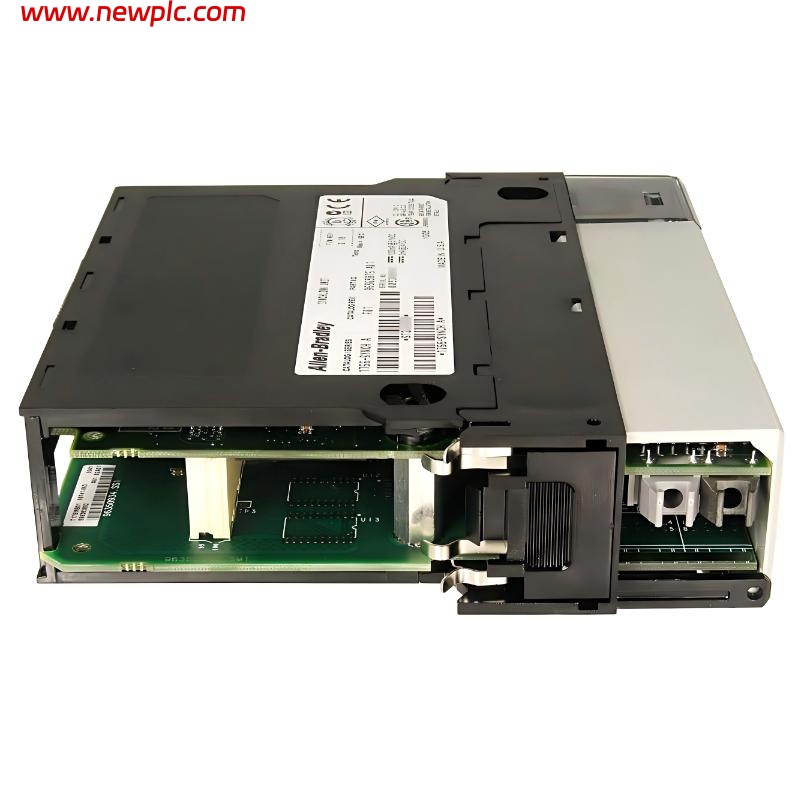

| Parameter | Specification |
|---|---|
| Model | Allen-Bradley 1756-SYNCH |
| Product Type | ControlLogix SynchLink Communication Module |
| Series | ControlLogix |
| Communication Type | SynchLink Fiber Optic |
| Number of Channels | 1 Fiber Optic Channel |
| Data Rate | 5 Mbps |
| Communication Mode | Synchronous |
| Operating Wavelength | 650 nm (Red) |
| Frame Period | 50 μs |
| Frame Structure | 3-byte Flags, 1-byte Control, 24-byte Data, 2-byte CRC |
| Main Functions | CST Time Synchronization, Coordinated Motion, High-Speed Data Transfer |
| Compatible Systems | ControlLogix Distributed Motion Systems |
| Supported Applications | Coordinated Drive Control, Motion Synchronization |
| Fiber Ports | 1 Tx Fiber Port, 1 Rx Fiber Port |
| Maximum SynchLink Connections | 10 |
| Slot Width | 1 Slot |
| Chassis Compatibility | 1756-A4, A7, A10, A13, A17 |
| Module Location | Any Slot in Chassis |
| Current Draw @ 5.1V DC | 1.2 A |
| Current Draw @ 24V DC | 3 mA |
| Power Dissipation | 6.2 W |
| Thermal Dissipation | 21.2 BTU/hr |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Shock Resistance | 30 g Operating |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | Approx. 0.35 kg |
| Certifications | UL, CE, CSA, Class I Div 2 |
| Product Lifecycle | Active |
FAQ
FAQ
Q1: What is the primary function of the 1756-SYNCH module?
The 1756-SYNCH module synchronizes Coordinated System Time (CST) across multiple ControlLogix chassis and enables high-speed motion data sharing over SynchLink fiber optics.
Q2: What communication media does the module use?
The module uses SynchLink duplex fiber optic communication with dedicated transmit and receive fiber ports.
Q3: What is the communication speed of the module?
The SynchLink network operates at 5 Mbps synchronous communication speed.
Q4: What is CST synchronization used for?
CST (Coordinated System Time) synchronization allows multiple ControlLogix chassis and motion systems to operate using the same precise timing reference for coordinated motion applications.
Q5: Which applications commonly use the 1756-SYNCH module?
Typical applications include coordinated motion control, transfer presses, synchronized drive systems, and distributed multi-chassis motion control.
Q6: What are the physical dimensions of the module?
The approximate dimensions are 145 mm (H) × 35 mm (W) × 140 mm (D).
Q7: Is the module still available from Rockwell Automation?
Yes. Rockwell Automation currently lists the 1756-SYNCH as an active product.
Q8: What important system limitation should be considered?
Rockwell documentation states that a maximum of 10 SynchLink connections can be used within a system configuration.
