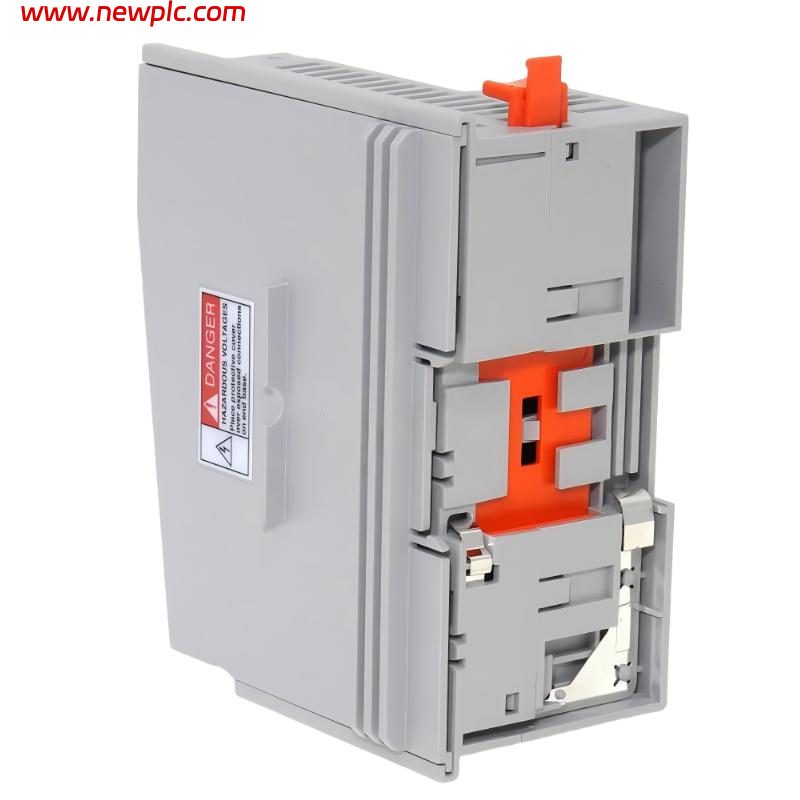

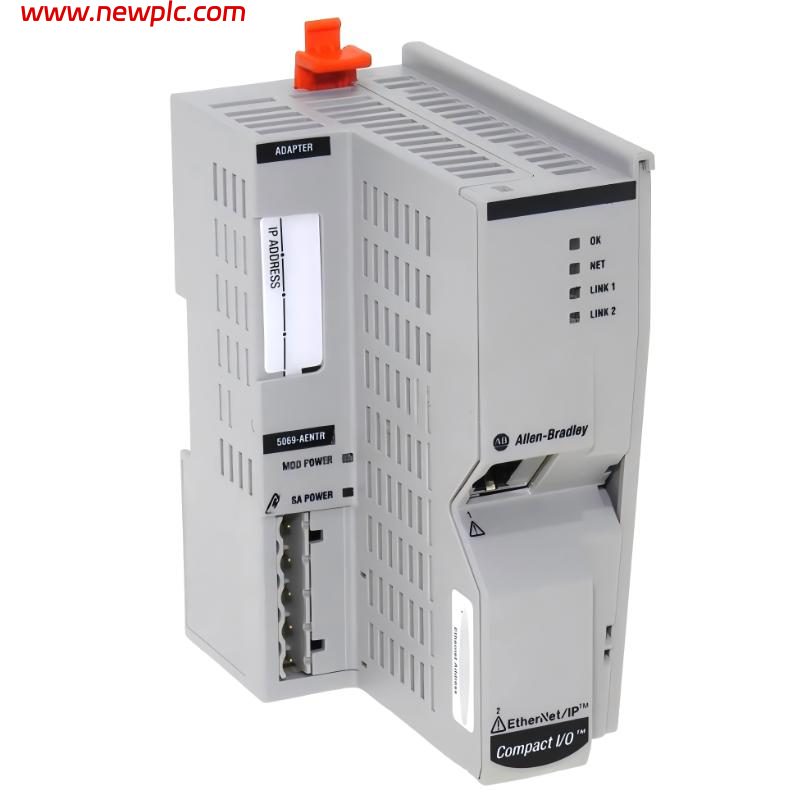

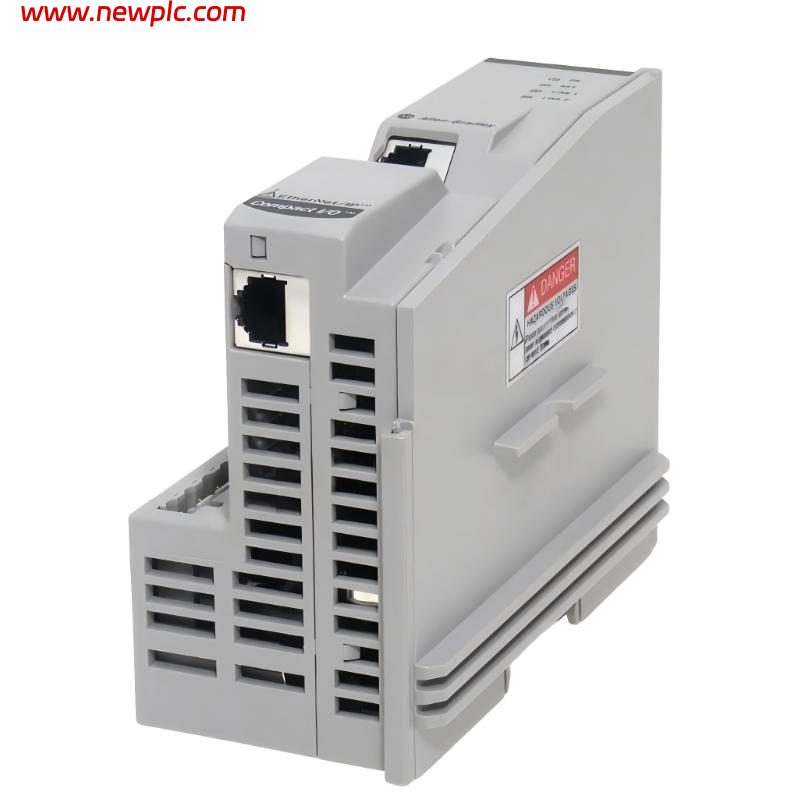

| Product Name | Allen-Bradley Compact 5000 EtherNet/IP Adapter |
| Model Number | 5069-AENTR |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Compact 5000 |
| Product Type | EtherNet/IP Communication Adapter |
| Communication Protocol | EtherNet/IP |
| Ethernet Ports | 2 × RJ45 Ethernet Ports |
| Transmission Speed | 10 Mbps / 100 Mbps / 1 Gbps |
| Network Topologies | Linear, Device Level Ring (DLR) |
| DLR Supervisor Capability | Supported |
| USB Port | 1 × USB Configuration Port |
| Supported I/O Modules | Up to 31 Compact 5000 I/O Modules |
| Power Supply | 18–32V DC |
| MOD Power Consumption | Approx. 450 mA |
| Power Dissipation | Approx. 8.5 W |
| Isolation Voltage | 250V Continuous |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Protection Rating | Open Type / IP20 |
| Dimensions | Approx. 98 × 138 × 137 mm |
| Weight | Approx. 0.45 kg |
| Application | Distributed I/O and Industrial Network Communication |
FAQ
FAQ
Q1: What is the Allen-Bradley 5069-AENTR used for?
The 5069-AENTR is a Compact 5000 EtherNet/IP communication adapter used for connecting distributed I/O modules to Logix 5000 control systems over industrial Ethernet networks.
Q2: How many Ethernet ports does the 5069-AENTR have?
The module includes two integrated RJ45 Ethernet ports that support linear and Device Level Ring (DLR) network topologies.
Q3: What communication speeds are supported by the 5069-AENTR?
The adapter supports 10 Mbps, 100 Mbps, and 1 Gbps Ethernet communication rates for high-speed industrial data transfer.
Q4: What power input does the 5069-AENTR require?
The module operates on 18–32V DC power and supports MOD power passthrough for connected Compact 5000 I/O modules.
Q5: How many I/O modules can be connected to the 5069-AENTR?
The adapter supports up to 31 Compact 5000 I/O modules within a distributed I/O system configuration.
Q6: Does the 5069-AENTR support Device Level Ring (DLR)?
Yes, the module supports Device Level Ring topology and can function within redundant industrial Ethernet ring networks.
Q7: What are the dimensions and weight of the 5069-AENTR?
The approximate dimensions are 98 × 138 × 137 mm, and the module weighs about 0.45 kg.
Q8: What industrial applications commonly use the 5069-AENTR?
The adapter is commonly used in distributed automation systems, machine control, process automation, and CompactLogix EtherNet/IP network architectures.
