Technical Specifications
| Parameter | Specification |
|---|---|

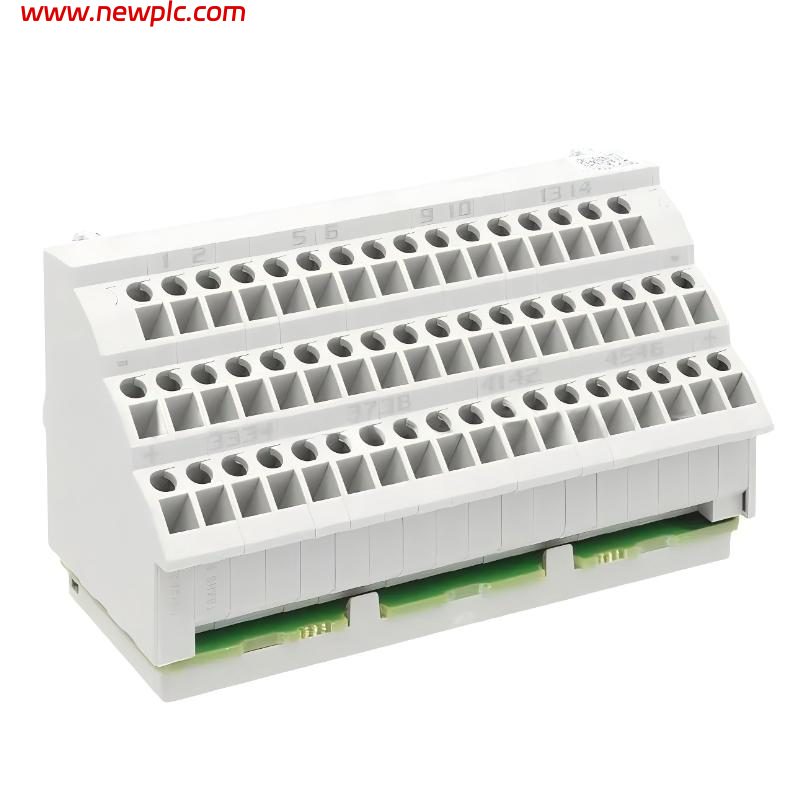

| Product Name | Allen-Bradley 5094-RTB32V |
| Product Type | FLEX 5000 Removable Terminal Block (RTB) |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | FLEX 5000 I/O |
| Function | 32-point input screw terminal block |
| Number of Points | 32 |
| Application Type | Digital input module termination (FLEX 5000 system) |
| Compatible Modules | 5094 series FLEX 5000 I/O modules (e.g., 5094-IB32) |
| Wiring Type | Screw terminal |
| Wire Size | 22–14 AWG (0.34–2.5 mm²) |
| Rated Voltage | 18–32 V DC |
| Max Current Rating | Up to 2 A per point / system-dependent passthrough limits |
| Isolation Voltage | 250 V continuous (channel to chassis) |
| Mounting Type | DIN rail system (with FLEX 5000 base) |
| Terminal Torque | Approx. 0.4 N·m |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Shock / Vibration | Industrial IEC-rated (up to 30G shock) |
| Material | Industrial-grade plastic and metal contacts |
| Dimensions | Approx. 53 × 94 × 76 mm |
| Weight | Approx. 0.20 kg |
| Certifications | CE, UL, cULus, ATEX, IECEx |
FAQ
FAQ
Q1: What is the 5094-RTB32V used for?
The 5094-RTB32V is a removable terminal block used in FLEX 5000 I/O systems to connect field wiring to 32-point digital input modules.
Q2: Which modules is it compatible with?
It is typically used with FLEX 5000 5094 series digital input modules such as 5094-IB32.
Q3: How many channels does it support?
It supports 32 input points through a screw terminal interface.
Q4: What type of wiring does it use?
It uses screw-type terminals designed for 22–14 AWG copper conductors.
Q5: What is the operating voltage range?
It supports industrial DC input signals in the range of 18–32 V DC depending on system configuration.
Q6: Is the terminal block isolated?
Yes, it provides up to 250 V continuous isolation between channels and chassis ground.
Q7: What is the mounting method?
It mounts as part of the FLEX 5000 I/O system on a DIN rail-based assembly.
Q8: What environments is it designed for?
It is designed for industrial environments with wide temperature tolerance from -40°C to 70°C.
