Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Number | MPL-B1530U-EJ74AA |

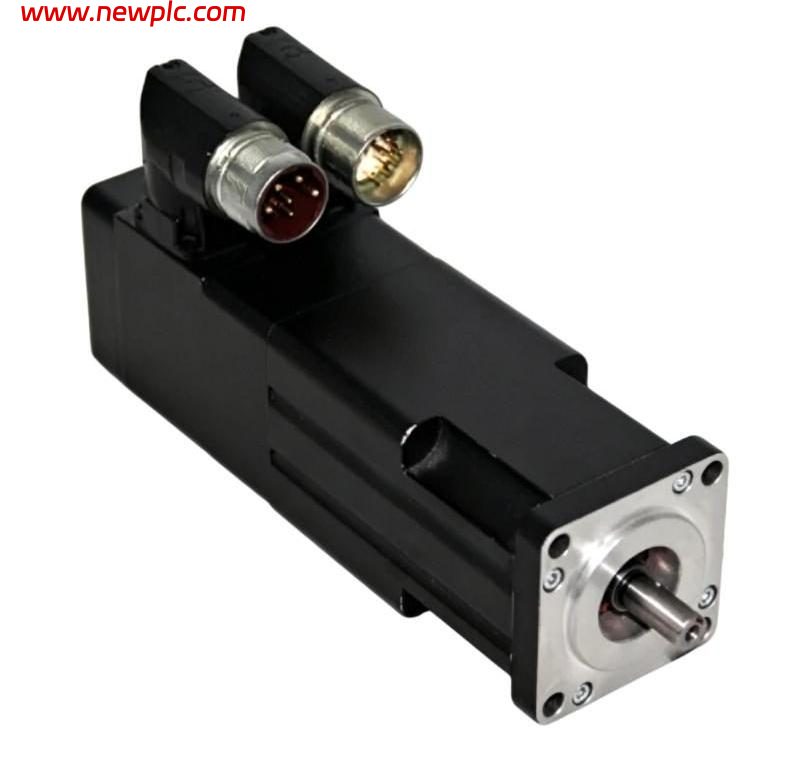

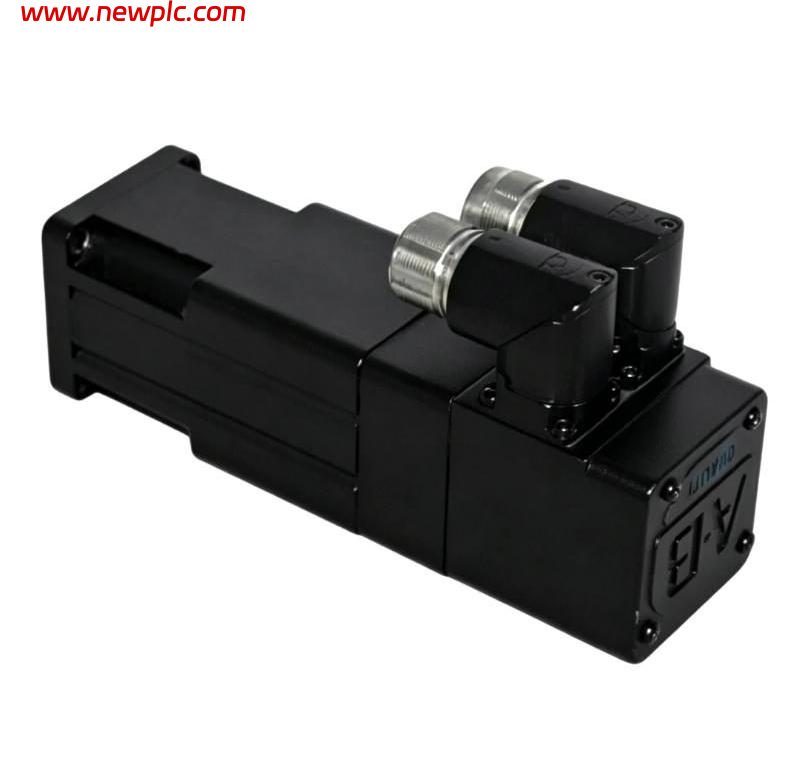

| Product Type | MP-Series MPL Low-Inertia Rotary Servo Motor |
| Voltage Class | 460 V AC |
| Frame Size | 63 mm |
| Magnet Stack Length | 76.2 mm |
| Rated / Maximum Speed | 7000 RPM |
| Continuous Output Torque | 0.9 Nm |
| Peak Output Torque | 2.8 Nm |
| Rated Power | 0.39 kW |
| Feedback | Absolute Single-Turn High-Resolution Encoder |
| Encoder Signal | 128 Sin/Cos, HIPERFACE |
| Shaft Type | Keyed Shaft Extension |
| Shaft Seal | No |
| Connector | SpeedTEC DIN, Right-Angle, 180° Rotatable |
| Brake | 24 V DC Holding Brake |
| Mounting | IEC Metric Flange |
| Protection | IP65 |
| Dimensions | Approx. 130 × 130 × 320 mm |
| Weight | Approx. 5.44 kg |
FAQ
FAQ
Q1: What is Allen-Bradley MPL-B1530U-EJ74AA?
It is an MP-Series MPL low-inertia brushless rotary servo motor for industrial motion-control applications.
Q2: What voltage class does it use?
It is a 460 V AC voltage-class motor.
Q3: What is the maximum speed?
The specified maximum speed is 7000 RPM.
Q4: What type of feedback does it use?
It uses an absolute single-turn high-resolution HIPERFACE encoder with 128 Sin/Cos signals.
Q5: Does the motor have a brake?
Yes. It has an integrated 24 V DC holding brake.
Q6: What type of shaft and connector does it have?
It has a keyed shaft extension and a right-angle SpeedTEC DIN connector that can be rotated 180°.
Q7: What are the dimensions and weight?
The listed overall dimensions are approximately 130 × 130 × 320 mm, with a weight of approximately 5.44 kg.
Q8: What is the main application of MPL-B1530U-EJ74AA?
It is designed for precision servo motion, positioning, and automated machinery applications requiring high-speed controlled rotary motion.
