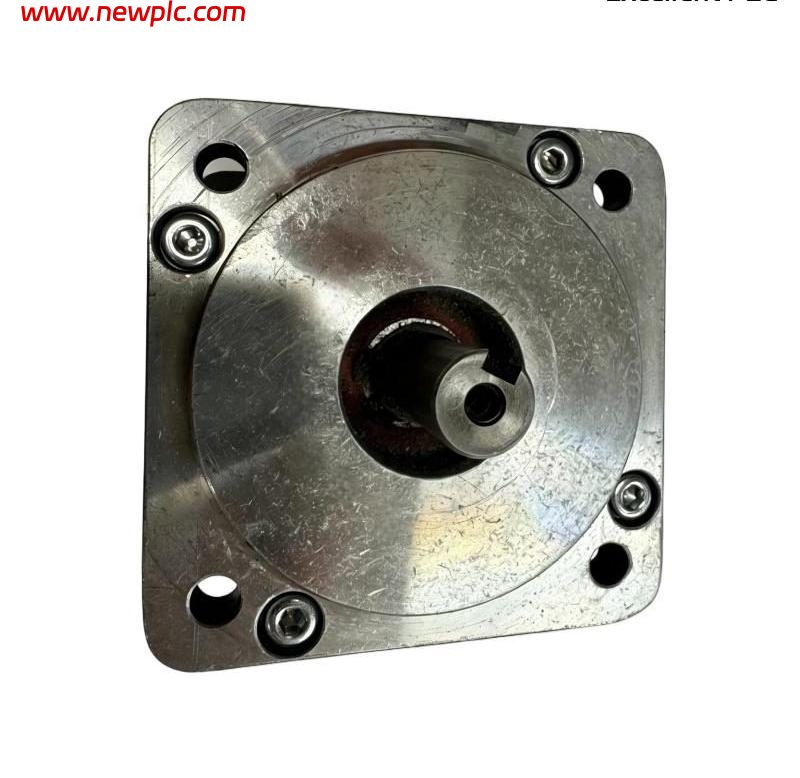

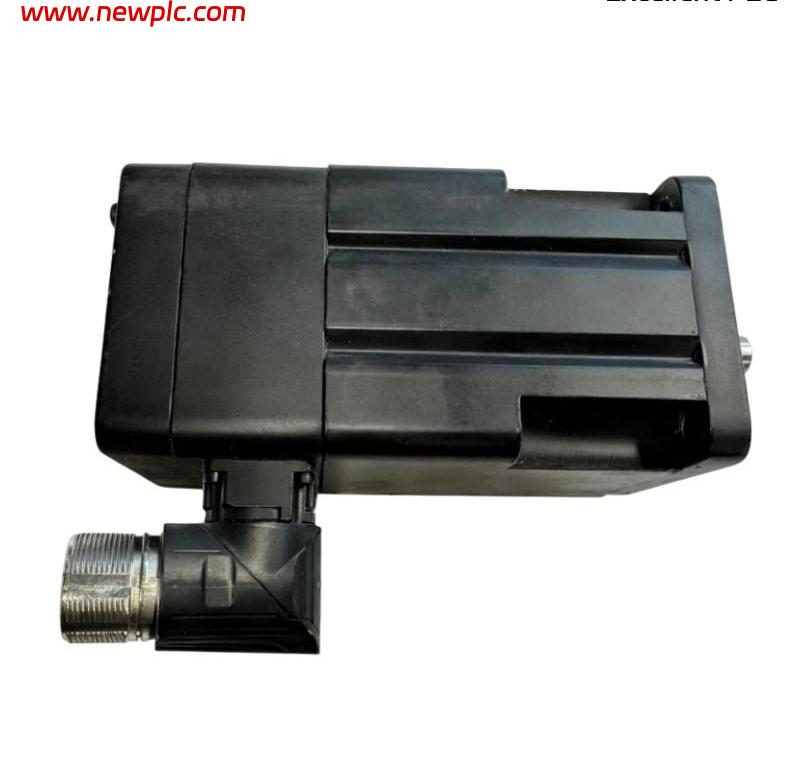

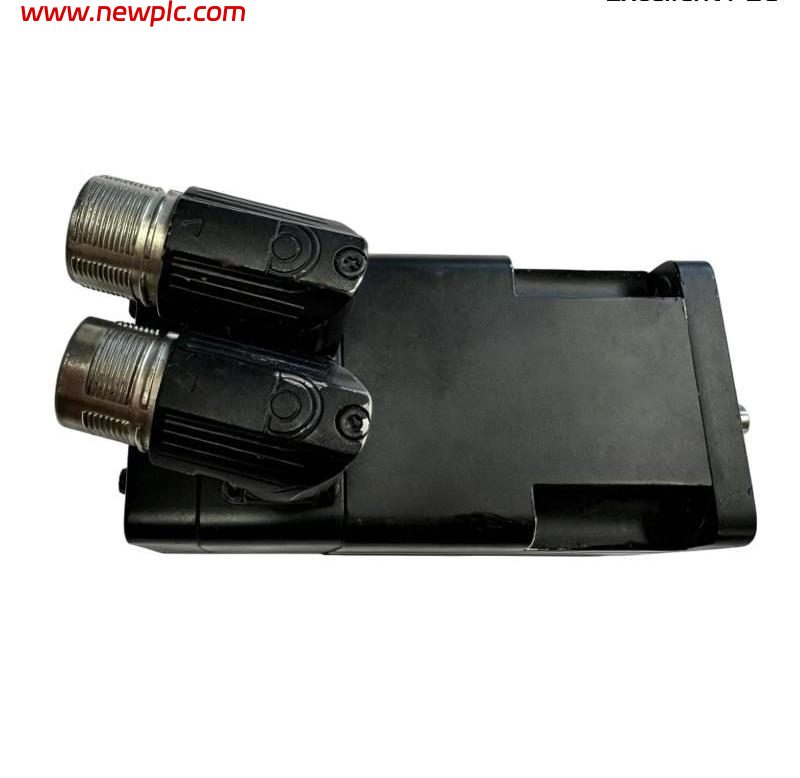

Allen-Bradley MPL-B1530U-HJ74AA MP-Series MPL Low-Inertia Brushless Servo Motor

FAQ

Q1: What is Allen-Bradley MPL-B1530U-HJ74AA?
It is an MP-Series MPL low-inertia brushless rotary servo motor for industrial motion-control applications.

Q2: What voltage class does it use?
It is designed for the 460 V AC class.

Q3: What is the rated speed?
The rated speed is 7000 RPM.

Q4: What type of feedback does it use?
It uses a 2000-line incremental encoder.

Q5: Does the MPL-B1530U-HJ74AA have a brake?
Yes. It has a 24 V DC holding brake.

Q6: What are the motor’s torque and power ratings?
The continuous stall torque is 0.90 Nm, peak stall torque is 2.82 Nm, and rated output is 0.39 kW.

Q7: Is the MPL-B1530U-HJ74AA still available from Rockwell Automation?
No. Rockwell Automation lists it as discontinued effective July 23, 2024.

Q8: What is the replacement for MPL-B1530U-HJ74AA?
Rockwell Automation lists MPL-B1530U-EJ74AA as the replacement. The replacement changes the feedback from the HJ74AA’s incremental encoder to a single-turn high-resolution encoder while retaining the 460 V, 63 mm frame, 76.2 mm stack, 7000 RPM, keyed shaft, and 24 V DC brake configuration.
