Technical Specifications
| Parameter | Specification |
|---|---|

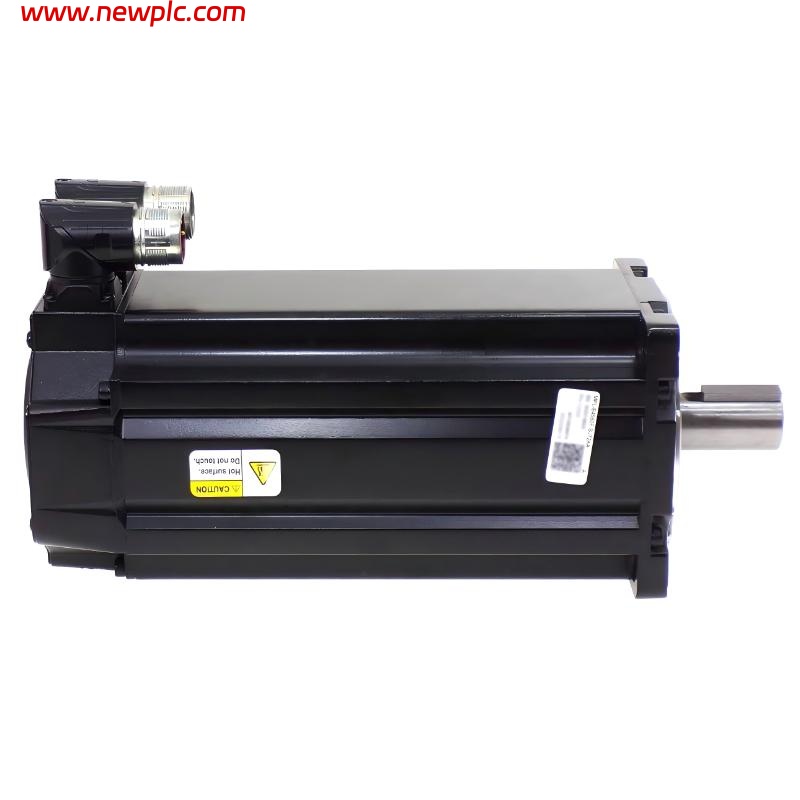

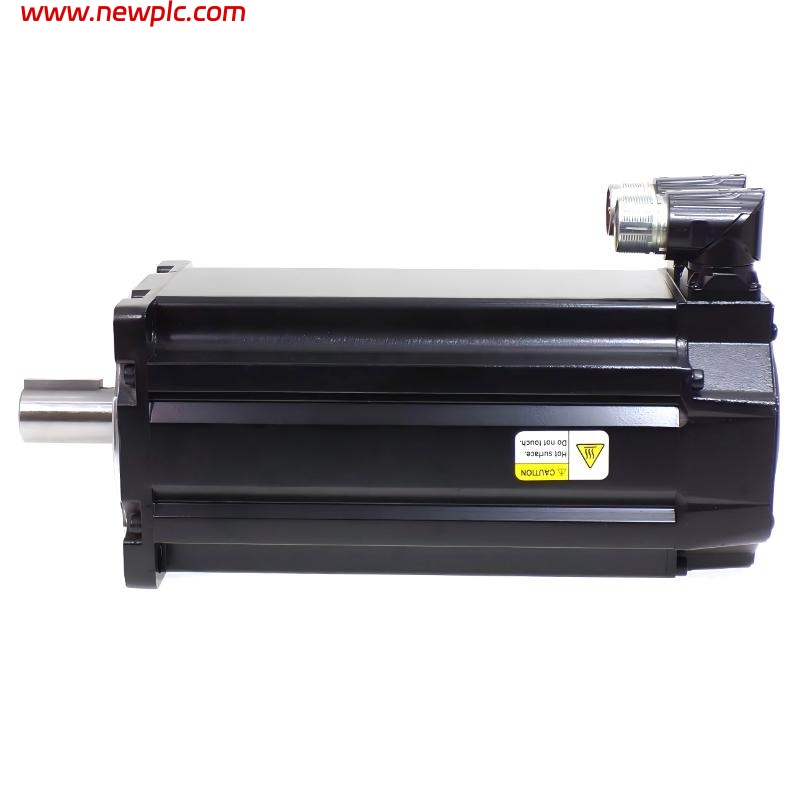

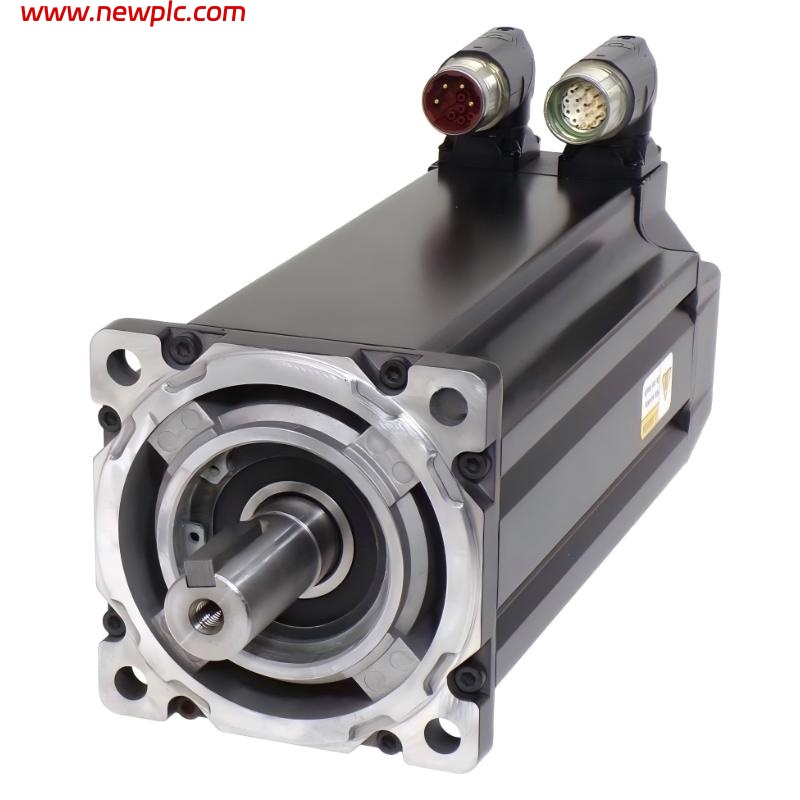

| Product Series | Allen-Bradley MP-Series MPL |
| Model Number | MPL-B4560F-SJ72AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Rated Voltage | 460 V AC |
| Rated Power | Approx. 3.2 kW |
| Rated Speed | 3000 RPM |
| Rated Torque | 14.1 Nm |
| Frame Size | 130 mm (IEC 45 frame class) |
| Magnet Stack Length | 152.4 mm (6.0 in) |
| Feedback Device | Single-turn high-resolution encoder |
| Shaft Type | Keyed shaft |
| Brake | Not equipped |
| Connector Type | SpeedTEC DIN, right-angle, 180° rotatable |
| Protection Rating | IP66 |
| Mounting Type | IEC metric, free mounting holes (Type FF) |
| Cooling | Natural convection |
| Operating Temperature | 0°C to 40°C |
| Application | High-performance motion control systems |
| Dimensions | 130 × 152.4 mm stack length (motor body length varies by configuration) |
| Weight | Approx. 13 kg |
FAQ
FAQ
Q1. What is the MPL-B4560F-SJ72AA mainly used for?
It is used in high-performance industrial motion systems requiring precise torque and speed control.
Q2. What type of motor is it?
It is a low-inertia brushless AC servo motor designed for dynamic positioning applications.
Q3. What drive systems is it compatible with?
It is typically used with Allen-Bradley Kinetix servo drives supporting MP-Series motors.
Q4. Does it include a brake?
No, this model does not include a holding brake.
Q5. What feedback system does it use?
It uses a single-turn high-resolution encoder for accurate position feedback.
Q6. What is the protection rating?
It is rated IP66, suitable for dusty and washdown industrial environments.
Q7. What is the mounting configuration?
It uses IEC metric mounting with free mounting holes (Type FF).
Q8. What is the weight of this motor?
Approximately 13 kg (27 lb) depending on configuration and accessories.
