Technical Specifications
| Parameter | Specification |
|---|---|

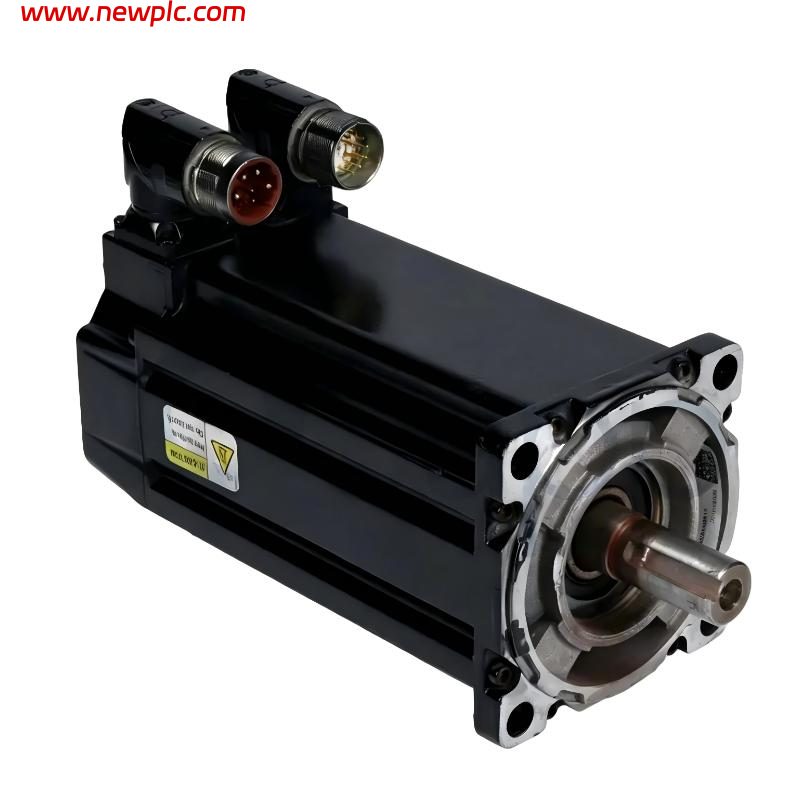

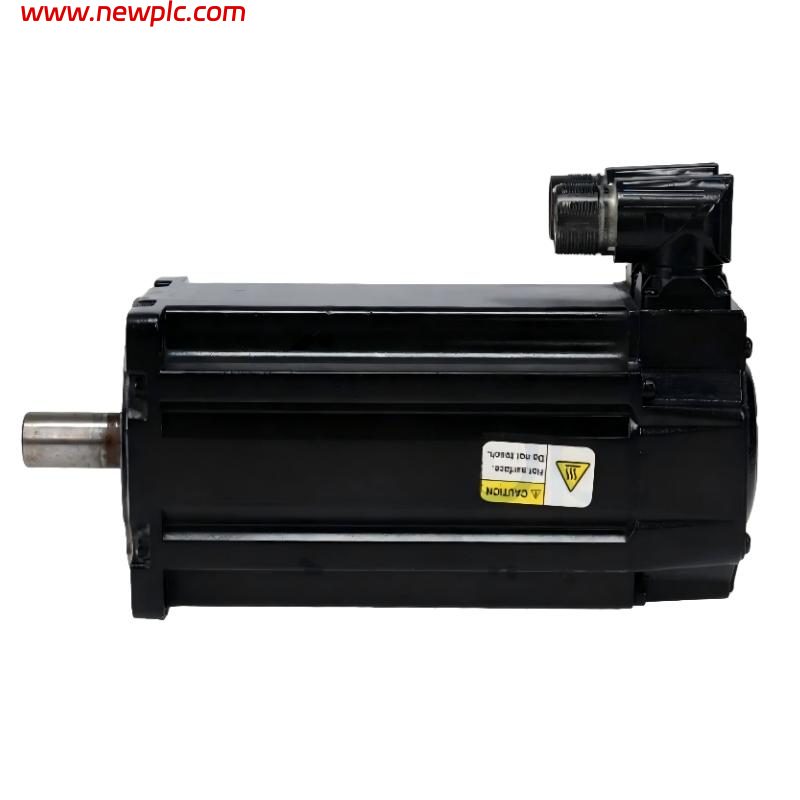

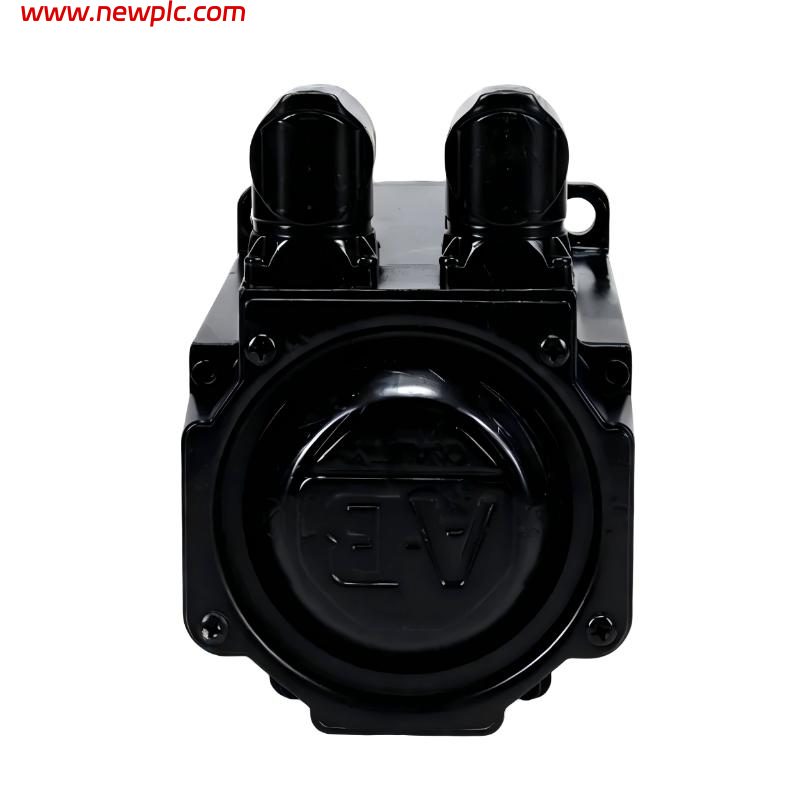

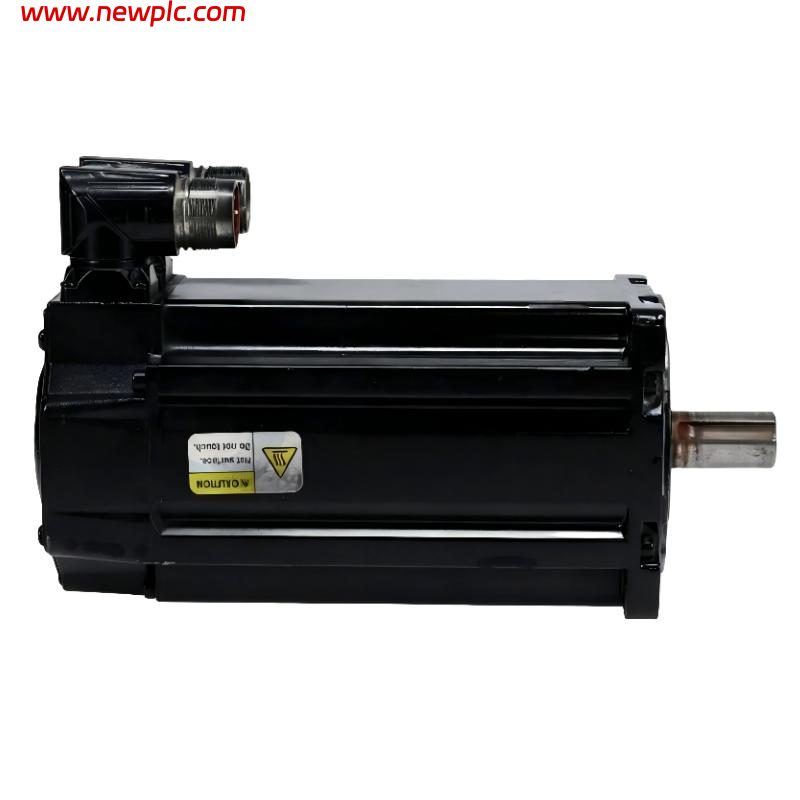

| Product Name | Allen-Bradley MP-Series Medium Inertia Servo Motor |
| Model Number | MPM-B1152F-MJ72AA |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MPM Series |
| Product Type | AC Brushless Servo Motor |
| Motor Type | Medium-Inertia Rotary Servo Motor |
| Voltage Class | 460V AC |
| Frame Size | 115 mm |
| Magnet Stack Length | 2-stack configuration |
| Rated Speed | 3000 RPM |
| Maximum Speed | 3000 RPM |
| Rated Output Power | Approx. 1.4 kW |
| Nominal Torque | Approx. 5.0 N·m |
| Encoder Type | Multi-turn high-resolution absolute encoder |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed shaft extension |
| Shaft Seal | No shaft seal |
| Brake Option | No brake |
| Connector Type | SpeedTEC DIN connector |
| Connector Orientation | Right angle, 180° rotatable |
| Mounting Type | IEC metric flange mount |
| Enclosure Rating | IP67 |
| Operating Temperature | 0°C to 40°C |
| Rated Frequency | 0–400 Hz |
| Compatible Drive Series | Kinetix 2000 / 300 / 350 / 5500 / 6000 / 6200 / 6500 / 7000 |
| Certifications | UL, CE, CSA |
| Weight | ~2.4–5.4 kg (varies by source/configuration) |
| Application | Medium-inertia industrial motion control systems |
FAQ
FAQ
Q1: What is the MPM-B1152F-MJ72AA used for?
It is a medium-inertia servo motor used in industrial automation applications such as packaging machines, conveyors, robotics, and general motion control systems requiring stable torque and moderate inertia matching.
Q2: What is the rated power of this motor?
The motor is typically rated at around 1.4 kW output power, depending on operating conditions and drive pairing.
Q3: What is the rated speed?
It operates at 3000 RPM nominal speed, with some configurations supporting up to the same maximum speed.
Q4: What type of feedback system does it use?
It uses a multi-turn high-resolution absolute encoder with Hiperface communication protocol for accurate position feedback.
Q5: Does this motor include a brake?
No, the MPM-B1152F-MJ72AA is supplied without a holding brake.
Q6: What is the protection rating?
It is rated IP67, providing strong resistance to dust and temporary water immersion.
Q7: What drive systems are compatible?
It is compatible with Allen-Bradley Kinetix servo drive families including Kinetix 2000, 300, 350, 5500, 6000, 6200, 6500, and 7000 series.
Q8: What is the physical size and weight?
It has a 115 mm frame size, and weight varies by configuration but is typically around 2.4–5.4 kg depending on options and documentation source.
