Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Allen-Bradley PowerFlex 750-Series |
| Model Number | SK-R9-PINT1-FF6K |

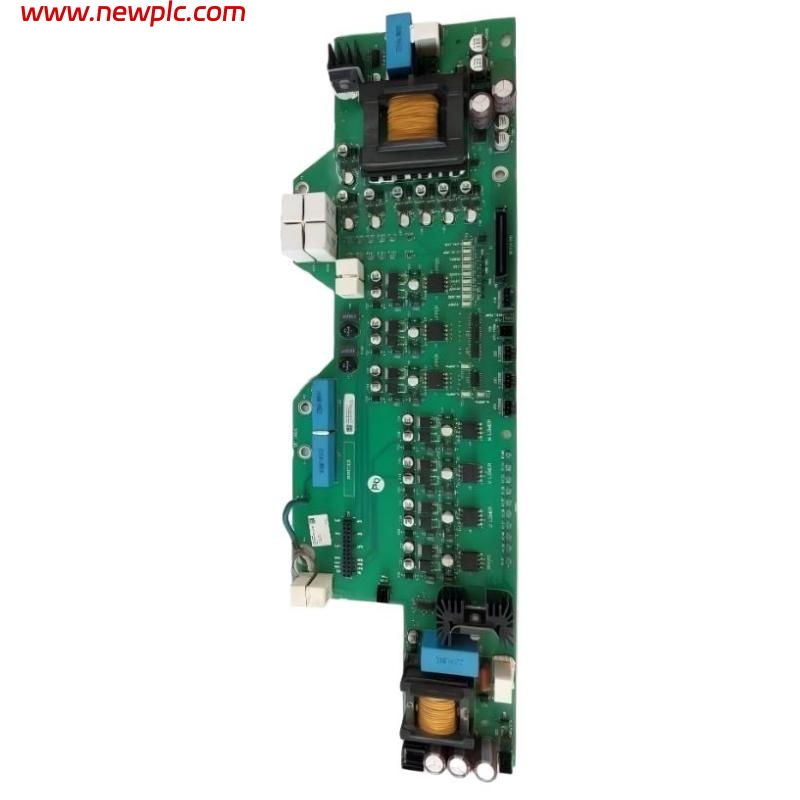

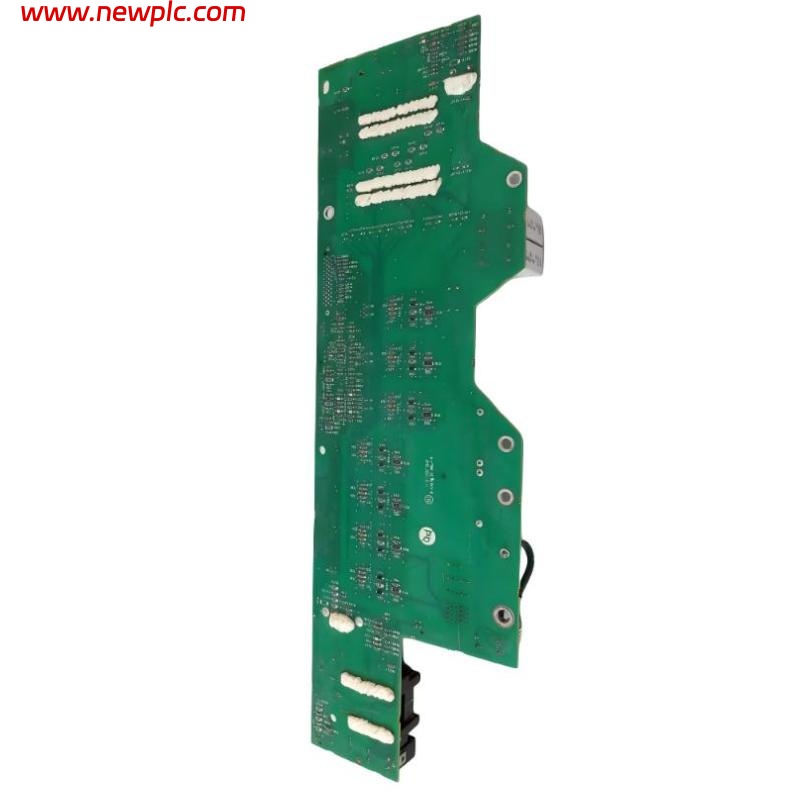

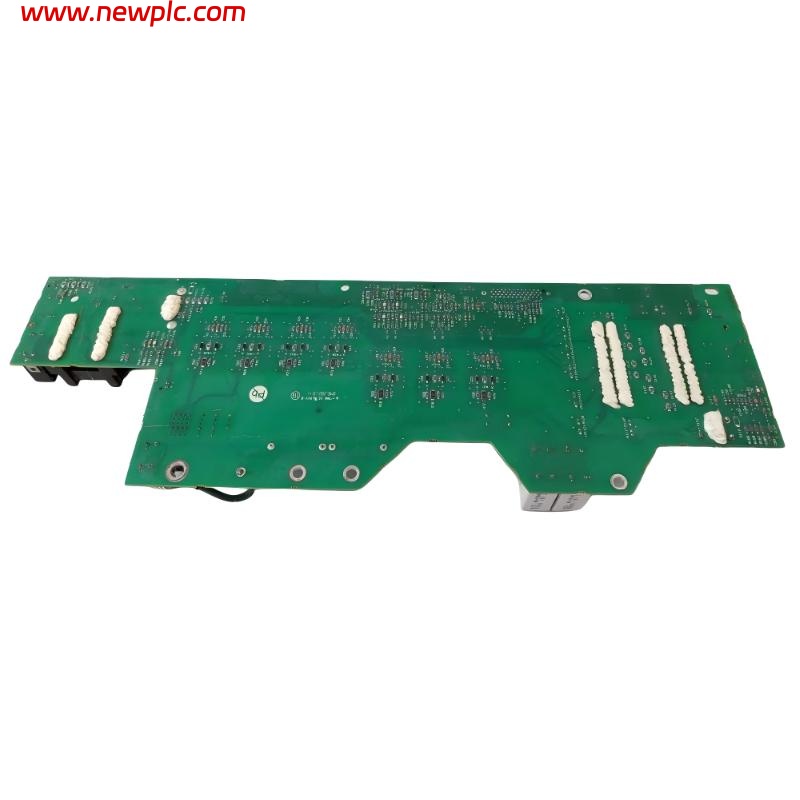

| Product Type | Power Interface Kit (Power Interface Board Assembly) |
| System Compatibility | PowerFlex 750-Series AC Drive (Frame 6) |
| Function | Provides main power interface and conversion path between AC input and drive power structure |
| Voltage Rating | 690 V AC |
| Power Rating | Approx. 75 kW (Frame 6 configuration) |
| Drive Frame Size | Frame 6 |
| Application | Power conversion and DC bus interface in variable frequency drives |
| Installation Type | Internal drive-mounted replacement kit |
| Electrical Role | Interfaces rectifier, DC bus, and inverter sections |
| Cooling Method | Cabinet air-cooled (via drive heatsink system) |
| Environmental Use | Industrial enclosed drive cabinet only |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 305 × 203 × 51 mm |
| Weight | Approx. 0.2–0.5 kg |
FAQ
FAQ
Q1. What is the SK-R9-PINT1-FF6K used for?
It is a power interface kit used inside PowerFlex 750 Frame 6 drives to manage power conversion and DC bus interfacing.
Q2. What drives is it compatible with?
It is designed specifically for Allen-Bradley PowerFlex 750-Series Frame 6 drives.
Q3. What is its main function?
It connects and manages the flow between AC input, rectifier stage, DC bus, and inverter section.
Q4. Is it a standalone device?
No, it is an internal component that must be installed inside a compatible drive.
Q5. What power level does it support?
It is associated with approximately 75 kW drive configurations at 690 V.
Q6. Does it require configuration or programming?
No, it operates as hardware-only within the drive system.
Q7. What happens if it fails?
The drive may not start or may lose power conversion capability entirely.
Q8. What is the weight of this kit?
Approximately 0.2–0.5 kg, depending on revision and packaging.
