Technical Specifications
| Parameter | Specification |
|---|---|

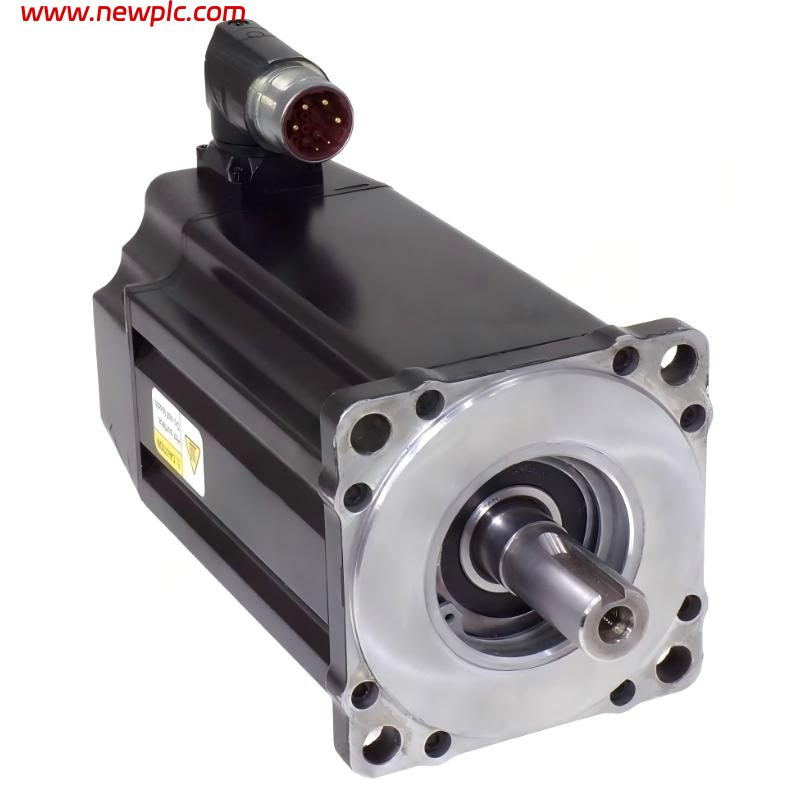

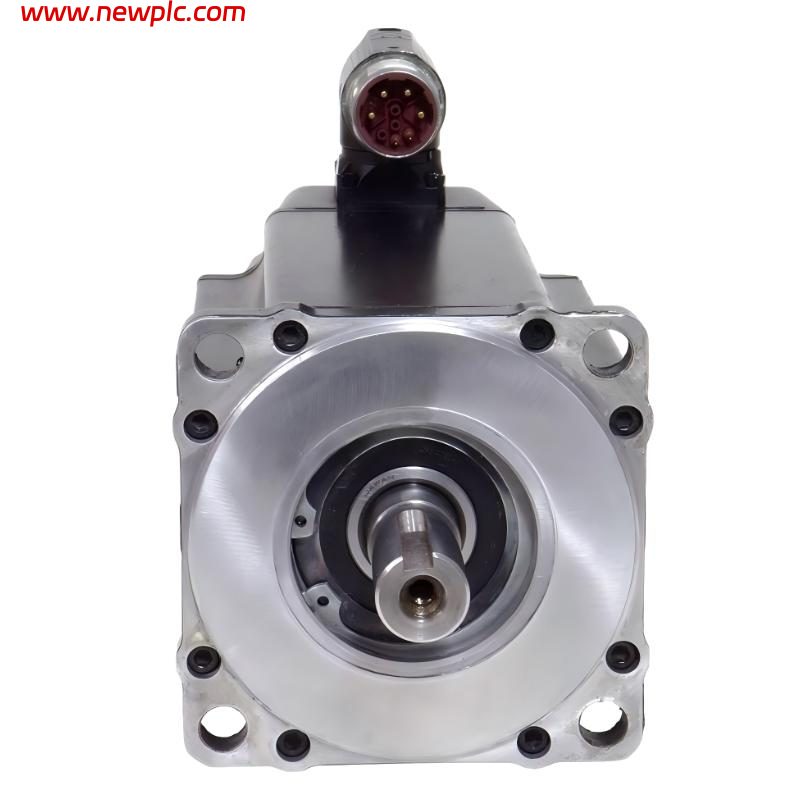

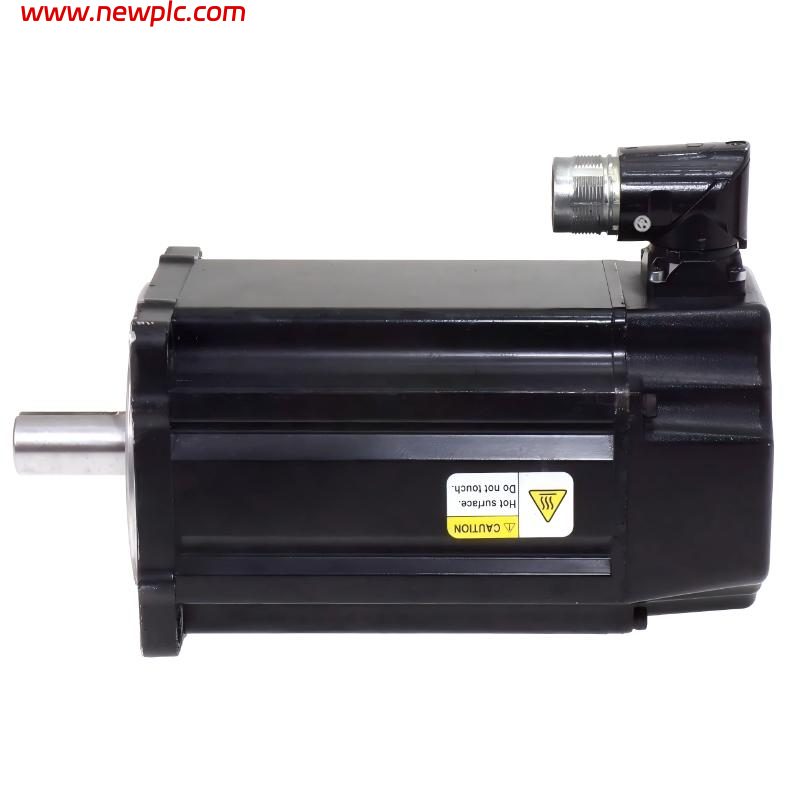

| Product Name | Allen Bradley VPL-B1304E-PK12AA |
| Product Type | Kinetix VP Low Inertia Servo Motor |
| Manufacturer | Allen Bradley / Rockwell Automation |
| Motor Type | AC Servo Motor |
| Series | Kinetix VP |
| Voltage Class | 480V AC |
| Frame Size | 130 mm Bolt Circle |
| Magnet Stack Length | 4 Magnet Stacks |
| Rated Speed | 3500 rpm |
| Maximum Speed | Up to 3900 rpm |
| Continuous Torque | Approx. 10.29 Nm |
| Peak Torque | Approx. 28.45 Nm |
| Rated Power | Approx. 2.82 kW |
| Feedback Type | 18-bit Single-turn and 12-bit Multi-turn Digital Encoder |
| Feedback Protocol | Hiperface DSL |
| Shaft Type | Keyless Shaft |
| Shaft Seal | Standard Configuration |
| Brake Option | No Holding Brake |
| Connector Type | Single SpeedTec Right Angle DIN Connector |
| Mounting Type | IEC Metric Mounting Flange |
| Enclosure Rating | IP66 |
| Cooling Method | Natural Cooling |
| Number of Phases | 3-Phase |
| Rated Frequency | 0–400 Hz |
| Rated Voltage | 460V AC |
| Operating Temperature | 0°C to 40°C |
| Duty Cycle | S1 Continuous Duty |
| Rotor Type | Low Inertia |
| Dimensions | Approx. 130 mm frame size |
| Weight | Approx. 9.1 kg |
FAQ
FAQ
Q1: What is the VPL-B1304E-PK12AA primarily used for?
The VPL-B1304E-PK12AA is designed for high-performance industrial motion control applications including robotics, packaging systems, converting equipment, and automated production machinery.
Q2: What type of encoder is included with this servo motor?
The motor is equipped with an 18-bit single-turn and 12-bit multi-turn digital high-resolution encoder using the Hiperface DSL feedback protocol.
Q3: Does this model include a holding brake?
No, the VPL-B1304E-PK12AA is supplied without a holding brake.
Q4: What shaft style does the motor use?
This model features a keyless shaft configuration for precision coupling and reduced backlash.
Q5: What enclosure protection rating does the motor provide?
The motor is rated IP66, offering strong protection against dust and water ingress in demanding industrial environments.
Q6: Which Allen Bradley drives are compatible with this motor?
The servo motor is commonly used with Kinetix 5500 and Kinetix 5700 servo drive systems from Rockwell Automation.
Q7: What connector style is used on the motor?
The motor uses a Single SpeedTec right-angle DIN connector designed for fast installation and secure industrial connectivity.
Q8: What is the rated operating speed of the VPL-B1304E-PK12AA?
The rated operating speed is 3500 rpm, with a maximum operating speed reaching approximately 3900 rpm.
