Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Allen-Bradley VPL Series (Kinetix VP Low Inertia Servo Motor) |

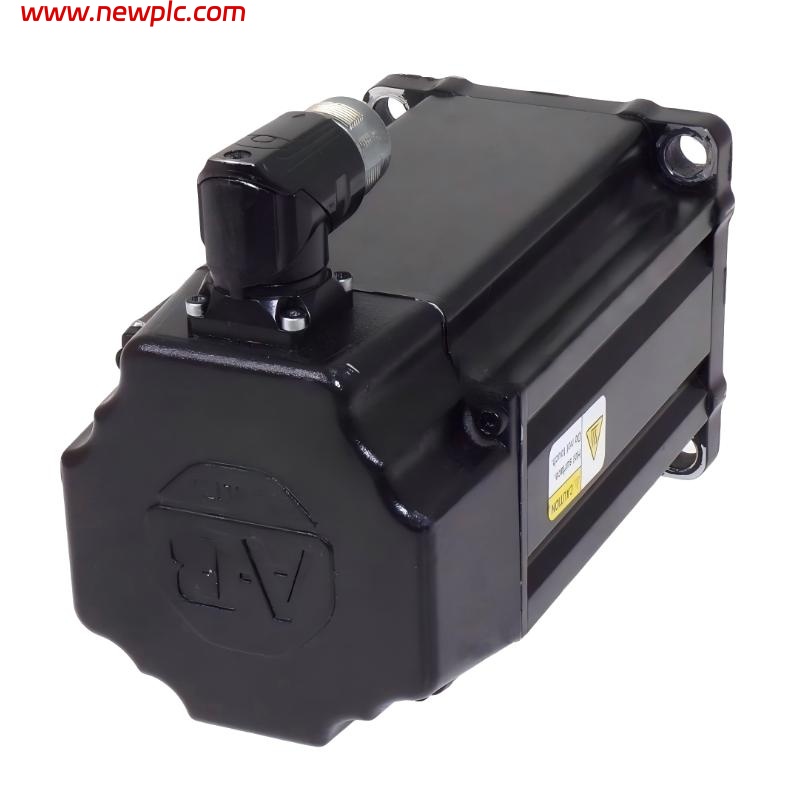

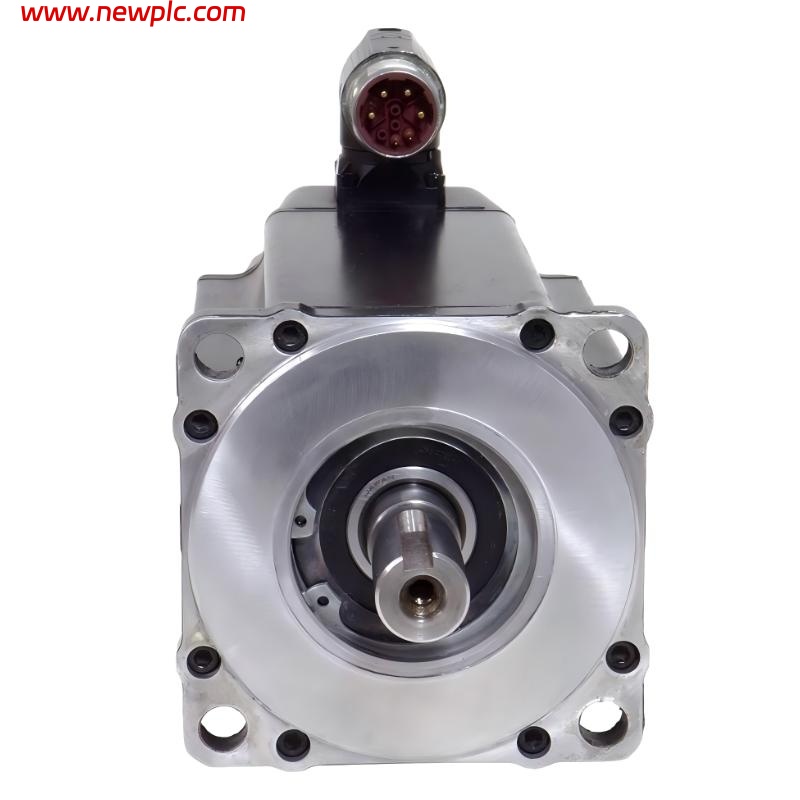

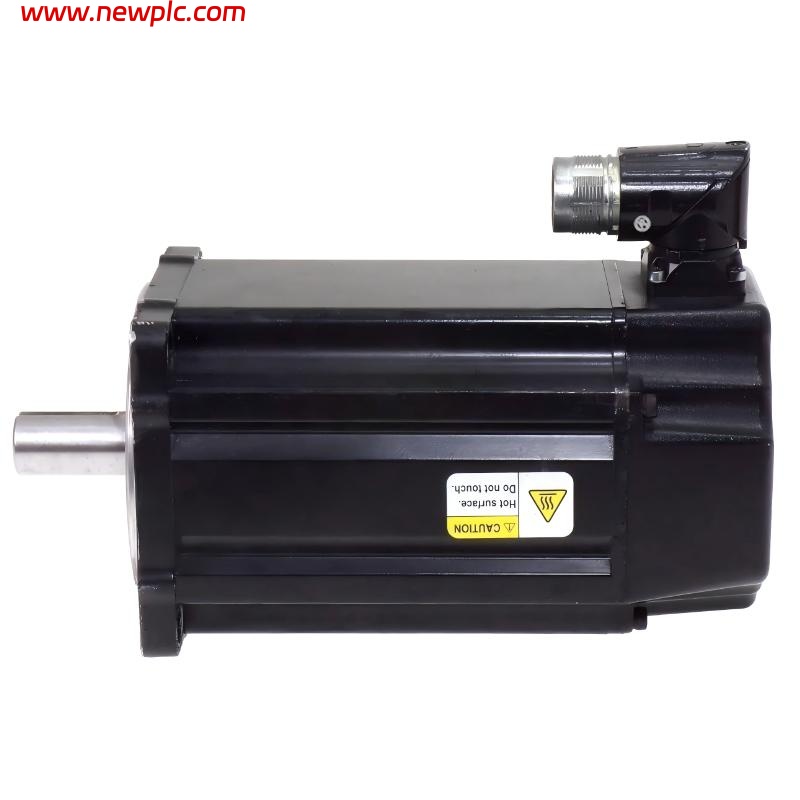

| Model Number | VPL-B1304E-PK12AA |
| Product Type | Low Inertia Rotary Servo Motor |
| Rated Voltage | 460 V AC |
| Rated Power | Approx. 2.82 kW |
| Rated Torque | 10.29 Nm |
| Peak Torque | 28.45 Nm |
| Rated Speed | 3500 rpm |
| Frame Size | 130 mm bolt circle |
| Motor Stack Length | 4 (four stacks) |
| Feedback Device | 18-bit single-turn + 12-bit multi-turn high-resolution encoder |
| Brake | No brake |
| Shaft Type | Keyless shaft |
| Connector Type | Single SpeedTec DIN connector (rotatable) |
| Enclosure Rating | IP66 |
| Mounting Type | IEC metric flange |
| Cooling Method | Natural convection |
| Operating Temperature | 0°C to 40°C |
| Frequency Range | 0–400 Hz |
| Application Type | High-performance motion control, packaging, robotics, automation |
| Dimensions | Approx. 260 × 130 × 130 mm |
| Weight | Approx. 4.5–9.1 kg |
FAQ
FAQ
Q1. What is the VPL-B1304E-PK12AA used for?
It is used in high-performance motion control systems such as robotics, packaging machines, and precision automation lines.
Q2. What type of motor is it?
It is a low inertia AC servo motor from the Allen-Bradley Kinetix VPL series.
Q3. Does it include a brake?
No, this model is supplied without a holding brake.
Q4. What feedback system does it use?
It uses a high-resolution encoder (18-bit single-turn with 12-bit multi-turn capability).
Q5. What is the rated speed?
The rated speed is 3500 rpm.
Q6. What is the protection rating?
It is rated IP66, suitable for harsh industrial environments.
Q7. What type of shaft does it have?
It uses a keyless shaft design with no keyway.
Q8. What is the weight of this motor?
Approximately 4.5–9.1 kg, depending on measurement reference and configuration.
