Technical Specifications
| Parameter | Description |
|---|---|

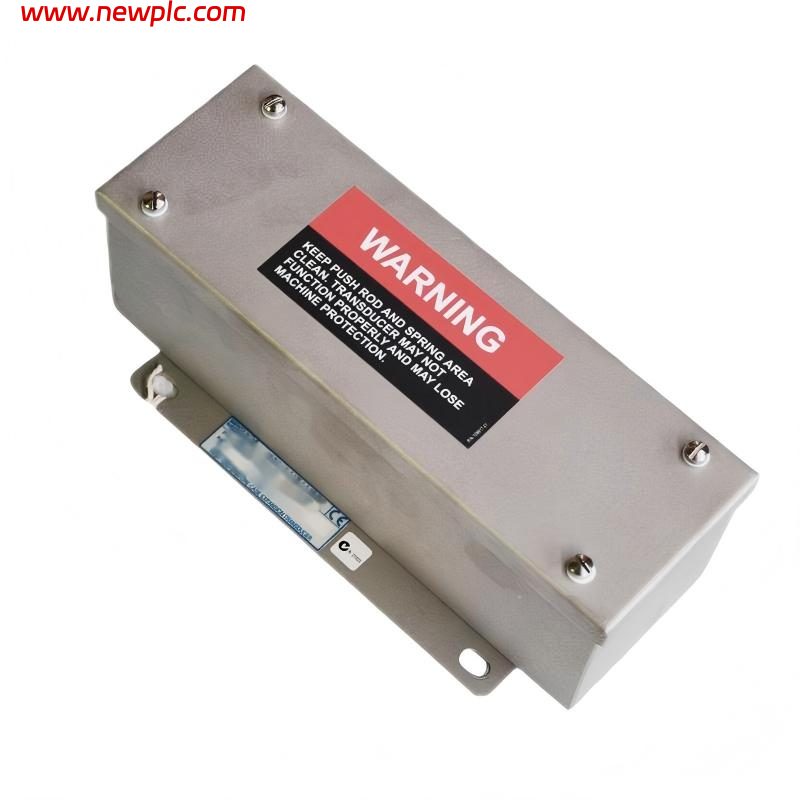

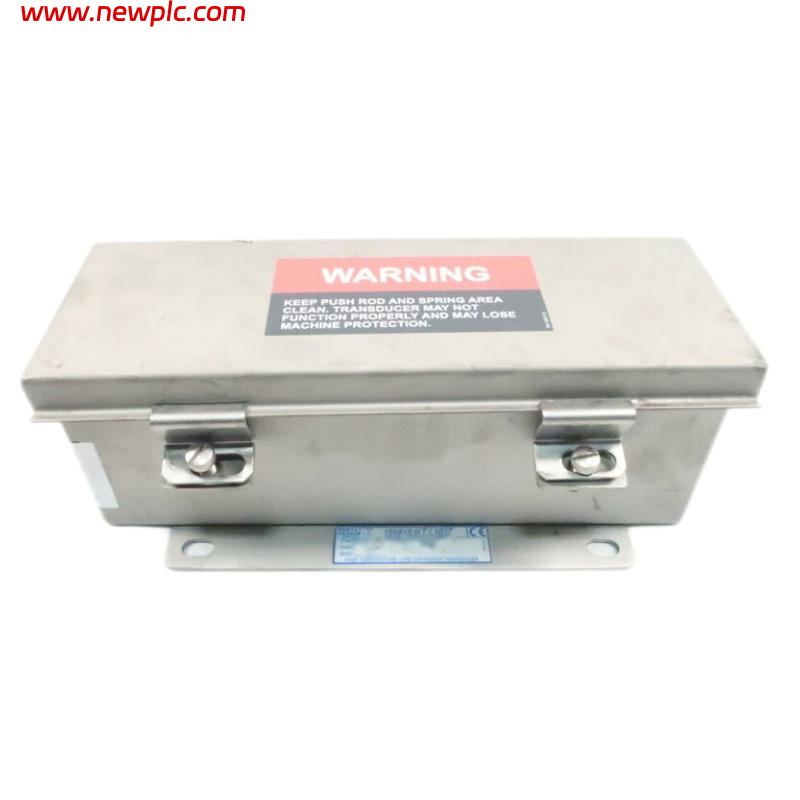

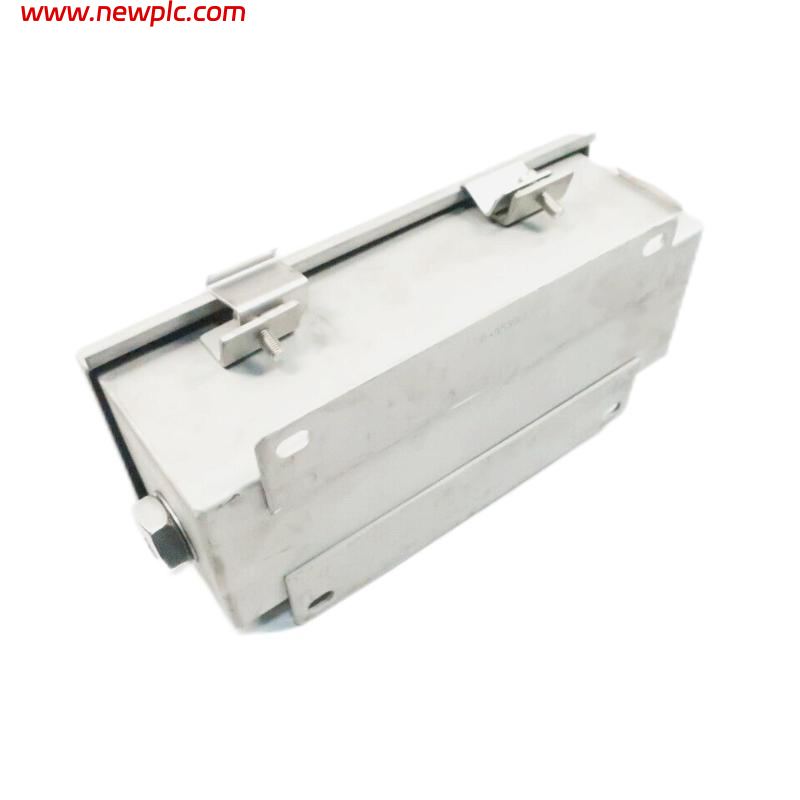

| Product Name | Bently Nevada 135613-02-00 |
| Part Number | 135613-02-00 |
| Product Type | High Temperature Case Expansion Transducer Assembly (DC) |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series | Case Expansion Transducer System |
| Function | Measures thermal growth / mechanical expansion of machine casing in high-temperature rotating equipment |
| Measurement Principle | LVDT-based linear displacement transducer |
| Application | Steam turbines / compressors / large rotating machinery case expansion monitoring |
| Output Signal | DC linear analog output (proportional voltage signal) |
| Linear Range Option | 02 = 50.8 mm (2.0 in) with 152.4 mm rod |
| Spring Option | 00 = Without spring return |
| Scale Factor | 0.10 V/mm (2.5 V/in) |
| Frequency Response | Up to 200 Hz (typical) |
| Linearity | < 0.25% full scale |
| Stability | 0.125% full scale |
| Operating Temperature | -25°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Mounting / Probe Style | Rod-style case expansion probe assembly |
| Parameter | Description |
|---|---|
| Dimensions (W × H × D) | Approx. 8.89 × 11.7 × 24.1 cm |
| Weight | Approx. 2.3 kg |
FAQ
FAQ
Q1: What is 135613-02-00 used for?
A1: It is used to measure thermal expansion (case growth) of turbines and other high-temperature rotating machinery.
Q2: Is it a vibration probe?
A2: No. It is a case expansion transducer, not a vibration proximity probe.
Q3: What signal output does it provide?
A3: It provides a DC analog voltage output proportional to displacement.
Q4: What technology does it use?
A4: It uses an LVDT (Linear Variable Differential Transformer) sensing principle.
Q5: What is the measurement range?
A5: 50.8 mm (2.0 in) linear range for the “02” configuration.
Q6: What is the operating temperature range?
A6: -25°C to +85°C.
Q7: What are the physical dimensions?
A7: Approximately 8.89 × 11.7 × 24.1 cm.
Q8: What is the weight?
A8: Approximately 2.3 kg.
